one side etching ptfe sheet self adhesive ptfe sheet etched ptfe sheet

one side etching ptfe sheet self adhesive ptfe sheet etched ptfe sheet

FOB Reference Price: Get Latest Price

≥10 Kilograms

US $25

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: Ptfe sheet&Ptfe film

Thickness:: 0.03-5.0, 0.03-0.1mm,0.1-0.49mm,0.5-1.0,1.1-5.0mm

Size:: width:10-1200mm

Raw material:: 100% virgin PTFE

Medium:: toner,cooper,graphite and other materials

Specification:: Direct film, Skived film,Skived tape

Application:: capacitor dielectric,sealing gaskets

Density:: 2.10-2.30 g/cm^3

Width::: 10-120mm,10-300mm,10-1000mm,10-1200mm

Color:: white, red, yellow, black and OEM colors

Shape:: Flat Panel and oem shape

Certification:: RoHs,ISO 9001&ISO1400

Quick Details

Processing Service:: Cutting, Moulding

Place of Origin:: Guangdong, China

Brand Name:: Dechengwang

Model Number:: Ptfe sheet&Ptfe film

Thickness:: 0.03-5.0, 0.03-0.1mm,0.1-0.49mm,0.5-1.0,1.1-5.0mm

Size:: width:10-1200mm

Raw material:: 100% virgin PTFE

Medium:: toner,cooper,graphite and other materials

Specification:: Direct film, Skived film,Skived tape

Application:: capacitor dielectric,sealing gaskets

Density:: 2.10-2.30 g/cm^3

Width::: 10-120mm,10-300mm,10-1000mm,10-1200mm

Color:: white, red, yellow, black and OEM colors

Shape:: Flat Panel and oem shape

Certification:: RoHs,ISO 9001&ISO1400

Product Description

Skived film: direct ptfe film and semi-direct film, non direct film

Thickness :0.03mm to 5mm, thickness tolerance: ± 0.02mm, Width 10-1200mm,

Applications include capacitor films, cable harnesses, spacers, electrical insulation components, PCB’s, flexible circuits, cap liners, plungers, stoppers, protective liners, gaskets, diaphragms, semiconductor processing components, expansion joint liners and sleeves, fuel cell seals and separators, solar panel (photovoltaic) modules and surface protection liners.

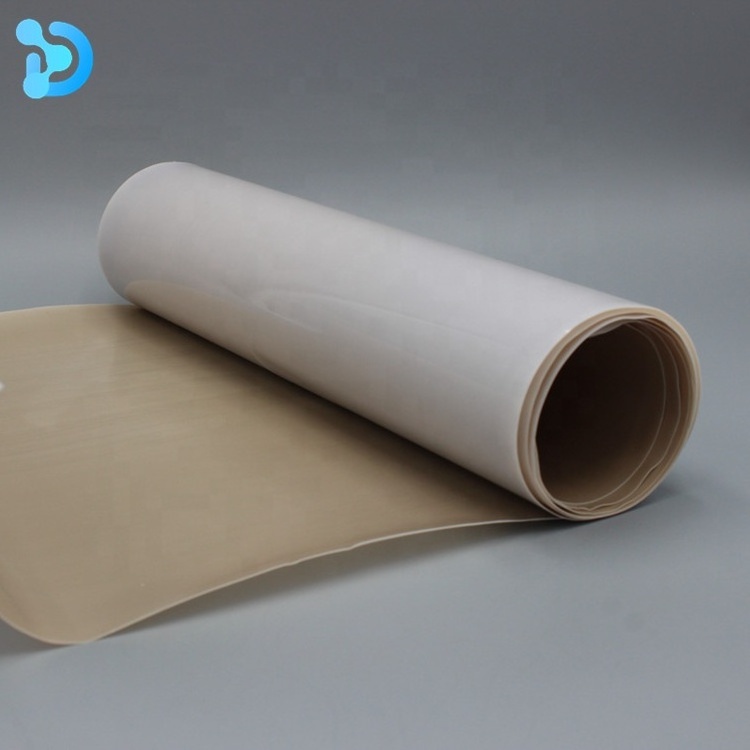

One side etched 100% virgin PTFE film or foil

Thickness :0.03mm to 5mm, thickness tolerance: ± 0.02mm, Width 10-1200mm,

100% Virgin PTFE etched film used as a top for work benches, industrial gaskets, wear surfaces, drainboards, sinks and shelf liners.

Virgin PTFE skived sheet/ board/plate and PTFE molded sheet / board/plate

PTFE Skived sheet is ideal as a slide surface, for chute liners, other kinds of liners, or for cutting or stamping into gaskets (asbestos substitute) and diaphragms, including complex stamped gasket configurations.

PTFE molded sheet is ideal for cutting into bIanks for machining into smaller parts

Material Name	Compound %	Main Properties	Color
PTFE	/	Very low coefficient of friction and excellent chemical resistance.	White
Glass Filled PTFE	Up to 40%	Improved ware resistance, compression strength, creep resistance, chemical resistance. Good performance in oxidising environment, good creep resistance.	White cream
Carbon Filled PTFE	Up to 35%	Improved electrical and termal conductivity, resistance to load, low coefficient of friction in dry, water, steam applications, chemical resistance. Superior ware resistance increase and low friction properties.	Black
Graphite Filled PTFE	Up to 25%	Improve wear resistance, decrease friction and increase sliding properties against soft metals- chemical inertness. Improve the temperature resistance in some way.	Black
Bronze Filled PTFE	Up to 60%	Improved compression strength, wear resistant, high thermal conductivity, resistance to abrasion. Reduced chemical resistance.	Dark Brown
Molybdenum disulphide(MoS2) Filled PTFE	Up to 5%	Increased PTFE properties of hardness and wear resistance. Increased sliding properties and decrease friction.	Blue azure
PEEK filled PTFE	Up to 20%	Increased thermal resistance, sliding properties, surface hardness. Superior properties on dynamic applications.	Light Brown
PEEK	/	Light BrownExcellent mechanical properties including strength, rigidity, impact resistance, low wear rate and low coefficient of friction, retained over a wide range of service temperatures	Translucent
PEEK Compound	/	Improves technical and chemical properties like deformation under load, wear resistance, thermal expansion and electrical conductivity.	/
PVDF	/	Resistant to UV radiation and offers high mechanical strength and abrasion resistance.	Translucent
PCTFE	/	Better mechanical properties than other fluoropolymers, low permeability	Translucent
PFA	/	Excellent chemical and temperature resistance, electrical insulation and excellent processability	Natural

Packing & Delivery

Packing Details : Inner plastic bags, packed in carton box.

Delivery Details : 7-15 days for normal order.

Carton Package for courier: DHL/ FEDEX/ TNT/ UPS

Wooden Package for heavy goods, normally ship by sea or air cargo.

Our Certifications

Certification

Dechengwang certified products have been successfully investigated by: ISO9001:2008, RoHS,

Quality Control

Quality is the foundation of DeChengWang

Quality is the foundation of dechengwang, our commitment to quality is utmost, dechengwang’s success has been based on customer satisfaction, constant product improvement and service excellence. In order to achieve this standard of quality, we’ve invested heavily in a wide range of inspection equipments, effective quality management and monotoring processes that can be relied upon for high quality products. We are pleased to provide full inspection services to ensure parts meet your specifications.

Our Service

Custom PTFE Compoundings

PTFE is modified with the addition of different fillers such as: glass fibers, carbon, graphite, bronze, MoS2, PEEK etc. to improve physical, mechanical, thermal, wearing, electrical and chemical properties.

Custom Machining &Molding capabilities

Dechengwang's machinists have the knowledge & expeariance needed for selecting the best manufacturing method.

Serving a Wide Range of Industries

We served for industries such as aerospace, auto, valves, electric, chemical, engineering, construction and so on.

Our Company

Factory

Add: Bld D, Jinhengrun (Xintang) Industrial Park, Fucheng Street, Longhua District, Shenzhen, Guangdong, China 518110

Office View

Our Office

Workshop

Our workshop

Team

Our Team

Customer Photo

Client from all over the world

"Dear Ms. Candice,Have a nice day., First of all, I would like to thank you fast delivery and good quality products. I am very pleased with the quality of the materials used and the workmanship. Doing business with you for the past 3 years has truly been a pleasure. I hope to continue this rewarding relationship for years to come."

"Quality of PTFE is great, better than our previous. Design is 5 stars! Will re-order from you, but need them rounded edges and only one square edge of back tip. Thank you"

Factory Audit

"I recently visited DCW to perform a supplier audit and risk assessment. The employees are treated like family. The staff is diligent in their duties and professional in their execution of them. They can certainly stand alongside any company in the world.I look forward to working with Dechengwang on our current endevour and all possible projects in the future."

Favorable Comment

"I'd like to thank you again for your time and patience yesterday during my visit. Your quality system is very strict, i was impressed. This is perfectly what we are looking for in term of process. It was interesting thank you."

FAQ

Q: Are you trading company or manufacturer?

A: We are professional PTFE product manufacturer with ISO9001, ISO14001 certificated, and all material are RoHS

Q: Can you provide free samples?

A: Sorry, Free samples are not available for the custom parts. But after you place the order, samples cost would be return. Which is "FREE" in some way.

Q: I have a drawing, can you produce?

A: First, please send your drawing to our sales representative, they will forward all the information to our engineer and evaluate our capacity, a detail proposal will be reply with 24 hours.

Q: I have a PTFE sample but don't have drawing, what can i do?

A: In this situation, firstly please send us some photos of your sample, we will evaluate. If our factory can produce, then secondly we will ask sample from you, the Draftsman will make drawings according your sample, PS: Make sure your sample is new and unused .
