Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FATO
-
Model Number:
-
MSQ
Quick Details
-
Use:
-
current
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FATO
-
Model Number:
-
MSQ

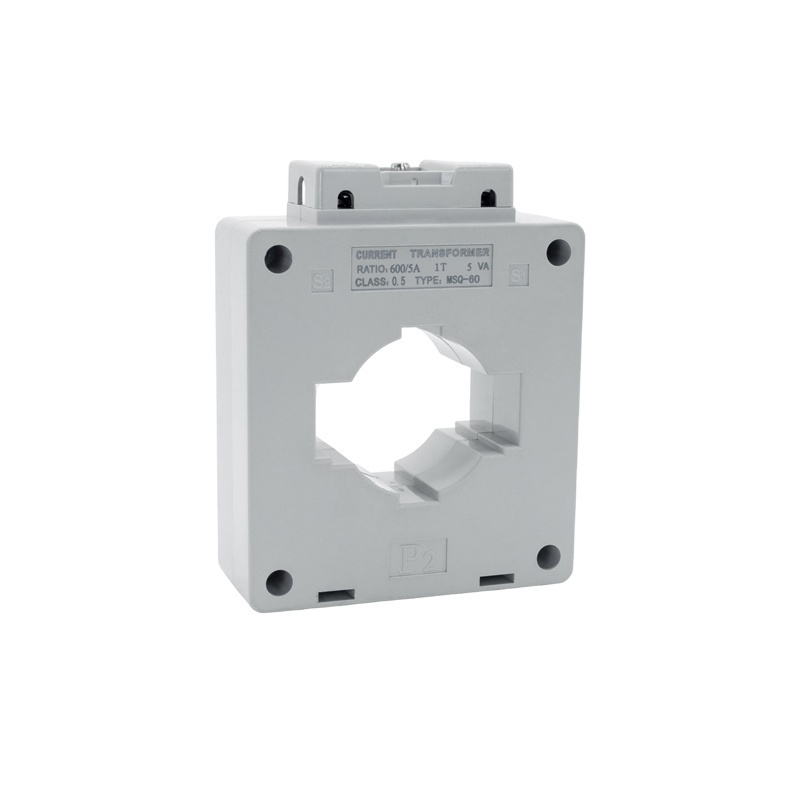

The series of current transformers can be applied to test, control, display and record the running of the electrical equipments, and to protect the equipments against the damage, in the AC circuit with the rated voltage value below 660V and the frequency of 50-60Hz. The product can be also applied to a complete set of mine transformer. The product conforms to IEC 185.
| Type |
Rated Current(A)
One/two Times |
Rated Load
(VA) |
Class |
Max.Working
Voltage(V) |
| MSQ-30 | 15/5 | 2.5 | 0.5 | 660 |
| 20/5 | 2.5 | |||
| 25/5 | 2.5 | |||
| 30/5 | 2.5 | |||
| 40/5 | 2.5 | |||
| 50/5 | 2.5 | |||
| 60/5 | 2.5 | |||
| 70/5 | 2.5 | |||
| 100/5 | 2.5 | |||
| 150/5 | 2.5 | |||
| 200/5 | 5 | |||
| 250/5 | 5 | |||
| 300/5 | 5 | |||
| MSQ-40 | 15/5 | 2.5 | ||
| 20/5 | 2.5 | |||
| 25/5-30/5 | 2.5 | |||
| 40/5 | 2.5 | |||
| 50/5 | 2.5 | |||
| 60/5 | 2.5 | |||
| 75/5 | 2.5 | |||
| 100/5 | 2.5 | |||
| 150/5 | 2.5 | |||
| 200/5 | 5 | |||
| 250/5 | 5 | |||
| 300/5 | 5 | |||
| 400/5 | 5 | |||
| 500/5 | 10 | |||
| 600/5 | 10 | |||
| 750/5 | 10 | |||
| 800/5 | 10 | |||
| MSQ-60 | 150/5 | 2.5 | ||
| 200/5 | 5 | |||
| 250/5 | 5 | |||
| 300/5 | 5 | |||
| 400/5 | 5 | |||
| 500/5 | 10 | |||
| 600/5 | 10 | |||
| 750/5 | 10 | |||
| 800/5 | 10 | |||
| 1000/5 | 20 | |||
| 1200/5 | 20 | |||
| 2000/5 | 40 | |||
| MSQ-80 | 300/5 | 5 | ||
| 400/5 | 5 | |||
| 500/5 | 10 | |||
| 600/5 | 10 | |||
| 800/5 | 10 | |||
| 1000/5 | 15 | |||
| 1200/5 | 20 | |||
| 1500/5 | 20 | |||
| 2000/5 | 40 | |||
| 2500/5 | 40 | |||
| MSQ-100 | 600/5 | 10 | ||
| 800/5 | 10 | |||
| 1000/5 | 15 | |||
| 1200/5 | 20 | |||
| 1500/5 | 20 | |||
| 2000/5 | 40 | |||
| 2500/5 | 40 | |||
| 3000/5 | 40 |
