Quick Details
-
Warranty:
-
1 year, one year
-
Brand Name:
-
TRUPOW or OEM
-
Model Number:
-
TP01436
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
550W
-
Cable Length:
-
10m
-
Outlet Size:
-
1'', 1-1/4'', 1-1/2''
-
Power:
-
550W
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Yellow, Red, Blue, Green
-
Quality System:
-
ISO9001:2000
-
OEM Service:
-
Accepted
-
Sample:
-
For free
-
Thermal Protector:
-
Yes
-
HS Code:
-
8413709190
Quick Details
-
Application:
-
Family Homes, Irrigation and Agriculture, Washing and Cleaning, wastewater treatment, Water Distribution, Water Treatment Solutions
-
Pressure:
-
Low Pressure
-
Voltage:
-
110v-240v
-
Warranty:
-
1 year, one year
-
Brand Name:
-
TRUPOW or OEM
-
Model Number:
-
TP01436
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
550W
-
Cable Length:
-
10m
-
Outlet Size:
-
1'', 1-1/4'', 1-1/2''
-
Power:
-
550W
-
Usage:
-
Water
-
Theory:
-
Centrifugal Pump
-
Standard or Nonstandard:
-
Standard
-
Color:
-
Yellow, Red, Blue, Green
-
Quality System:
-
ISO9001:2000
-
OEM Service:
-
Accepted
-
Sample:
-
For free
-
Thermal Protector:
-
Yes
-
HS Code:
-
8413709190

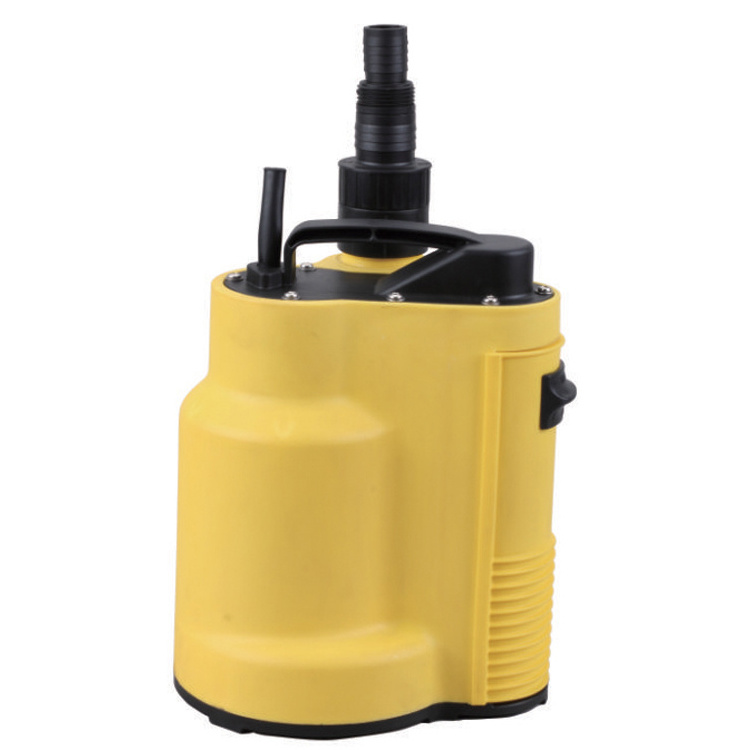

550w Automatic Electric Plastic Garden Submersible Utility Water Pumps With Integrated Float Switch
It is ideal for general submersible water applications s uch as able to drain infiltrating water, cellars to reservoirs, clean or slightly dirty water and for garden irrigation. emptying spas, hot tubs, pools, flooded basements or garden.
Please note that it is not suitable for 24 hour continuous operation such as powering garden water features or fountains as other sellers may imply.
**Integrated float switch
**Submersible pump in special design with vertical pump outlet and integrated float switch which automatically cuts pump off when level has dropped
Features
Plastic clean water pump
Fully submersible
Float switch - automatic switch off when water level drops ( from 7cm to 53cm )
Build-in overload motor protector with automatic reset
Insulation Class B/F
Protection IPX8
Pump body: PP
Impeller: PP/stainless steel if request
Shaft with rotor: 45# Carbon Steel/Stainless steel if request
Liquid temperature: Up to 35°C
Specifications
|
MODEL
|
POWER
(W)
|
MAX HEAD
(M)
|
MAX FLOW
(L/H)
|
MAX SUB. DEPTH
(M)
|
MAX GRAIN
SIZE
|
CABLE AND LENGTH
(M)
|
QTY/20CTN
(PC)
|
|
TP01356
|
250
|
6.0
|
5000
|
5
|
3MM
|
H05RN-F3G0.75mm2X10m
|
1800
|
|
TP01357
|
350
|
7.0
|
5500
|
5
|
3MM
|
H05RN-F3G0.75mm2X10m
|
1800
|
|
TP01358
|
400
|
7.5
|
7000
|
8
|
3MM
|
H05RN-F3G0.75mm2X10m
|
1800
|
|
TP01359
|
500
|
8.5
|
9000
|
8
|
3MM
|
H05RN-F3G1.0mm2X10m
|
1800
|
|
TP01436
|
550
|
9.0
|
10000
|
8
|
3MM
|
H05RN-F3G1.0mm2X10m
|
1800
|
|
TP01437
|
750
|
10.0
|
11000
|
8
|
3MM
|
H07RN-F3G1.0mm2X10m
|
1800
|
