Quick Details
-
Brand Name:
-
Shantui
-
Model Number:
-
SD08
-
Dimension(Long * Breadth * High):
-
4492*3185*2950mm
-
Optional types:
-
Standard/Wetland/Environmental sanitation/Coal versions
-
Operating weight (Kg):
-
13700/14900/15200/13900
-
Ground pressure (kPa):
-
53.8/38.4/38.4/54.6
-
Engine model:
-
SC8D143G2B1/SC8DK
-
Rated power/rated speed (kW/rpm):
-
105/1900
-
Overall dimensions of machine (mm):
-
4492*3185*2950/4492*3185*295/4492*3185*2950/0/4492*3185*2950
-
Center distance of track (mm):
-
1880
-
Width of track shoes (mm):
-
460/460/560
-
Ground length(mm):
-
2365
-
Fuel tank (L):
-
300
Quick Details
-
Machine Weight:
-
13.7ton
-
Dozing Capacity:
-
7.5m³, 5m³, 7.8m³, 5.4m³, 4.3m³, 4m³, 8.6m³, 6.5m³, 6m³, 10m³, 4.5m³
-
Place of Origin:
-
China
-
Brand Name:
-
Shantui
-
Model Number:
-
SD08
-
Dimension(Long * Breadth * High):
-
4492*3185*2950mm
-
Optional types:
-
Standard/Wetland/Environmental sanitation/Coal versions
-
Operating weight (Kg):
-
13700/14900/15200/13900
-
Ground pressure (kPa):
-
53.8/38.4/38.4/54.6
-
Engine model:
-
SC8D143G2B1/SC8DK
-
Rated power/rated speed (kW/rpm):
-
105/1900
-
Overall dimensions of machine (mm):
-
4492*3185*2950/4492*3185*295/4492*3185*2950/0/4492*3185*2950
-
Center distance of track (mm):
-
1880
-
Width of track shoes (mm):
-
460/460/560
-
Ground length(mm):
-
2365
-
Fuel tank (L):
-
300

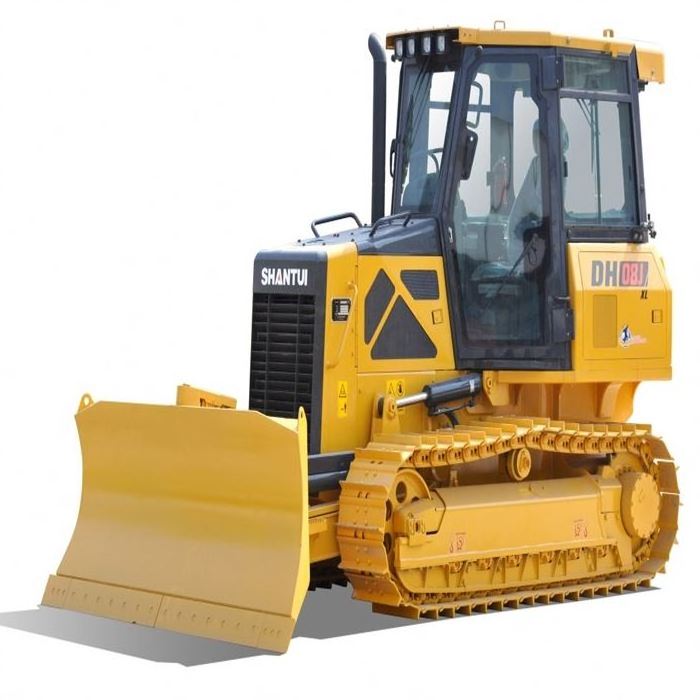

DH08-B2
ENGINE POWER
63kW/2200rpm China-II compliant
OVERALL WEIGHT
8780 kg/9092 kg
ENGINE MODEL
WP4G95221/WP4G95221
Power System
Weichai mechanical engine conforms to the China-II non-road machinery emission regulation, featuring high parts interchangeability and low maintenance cost.
The intelligent matching technology realizes the highest working efficiency and most reasonable fuel economy.
Control system
The double-module (Function and safety) controller architecture verifies with each other to achieve higher safety and reliability.
The malfunction self-diagnosis function is provided to accurately indicate the malfunction cause and orientation and shorten the downtime.
The service software with distinct access hierarchy features high simpleness and practicability and easy learning and understanding.
Driving/Riding Environment
The integral ergonomic hexahedral cab features large space, excellent , and good airtightness.
The suspended single accelerator pedal features small volume, large foot space, and high operation comfort.
The extensively adjustable seat and armrests provide the driver with the most comfortable operation posture.
The standard canopy and the optional standard cab + heating and A/C system are provided. The cab adopts integrally sealed shock-absorbing system and sound-absorbing sponge to lower the driver’s parotic noise to 85dB and realize low vibration and noise.
The intelligent display and control terminal with integrated instruments, cigarette lighter, USB charging port, radio, toolbox, sun shade, and fire extinguisher to provide more abundant personalized driving/riding experience and guarantee the comfortable and safe driving/riding environment.
The safety passage system of the machine guarantees the driver’s safety.
Working adaptability
The machine adopts double-circuit electronically controlled hydrostatic drive system to ensure good load self-adaptability, loaded and in-situ steering capability, stepless speed regulation, and high flexibility and efficiency and realize outstanding construction performance in narrow sites.
The undercarriage system features long ground length, high ground clearance, stable driving, and excellent trafficability. The standard traction frame and the optional three-shank ripper are provided.
The standard LED working lamps of higher illumination intensity improve the illumination capability during nighttime operations to achieve higher safety and reliability.
Easy maintenances
The structural parts inherit the excellent quality of Shantui mature products.
The electric harnesses adopt seamless corrugated pipes and deconcentrators for branching, featuring high protection grade.
The core electric and hydraulic parts adopt imported products, featuring stable and reliable quality and extremely high reliability.
The modular structure design of the machine features easy disassembling and assembling, simple repairs, low failure rate, and easy maintenances.
|
Parameter name |
DH08 B2 XL(Extended version) |
DH08 B2 LGP(Super-wetland version) |
|
Performance parameters |
||
|
Operating weight (Kg) |
8780 |
9092 |
|
Ground pressure (kPa) |
42.5 |
33.1 |
|
Engine |
||
|
Engine model |
Weichai WP4G95221 |
Weichai WP4G95221 |
|
Rated power/rated speed (kW/rpm) |
70/2200 |
70/2200 |
|
Overall dimensions |
||
|
Overall dimensions of machine (mm) |
4298*2680*2724 |
4298*3150*2724 |
|
Driving performance |
||
|
Forward speed (km/h) |
0 ~ 9 |
0 ~ 9 |
|
Reversing speed (km/h) |
0 ~ 9 |
0 ~ 9 |
|
Chassis System |
||
|
Center distance of track (mm) |
1650 |
1790 |
|
Width of track shoes (mm) |
460 |
610 |
|
Ground length ( mm ) |
2270 |
2270 |
|
Tank capacity |
||
|
Fuel tank (L) |
219 |
219 |
|
Working device |
||
|
Blade type |
PAT |
PAT |
|
Digging depth (mm) |
450 |
450 |
|
Ripper type |
3 shank |
3 shank |
|
Ripping depth (mm) |
340 |
340 |
