Quick Details
-
Brand Name:
-
GOGO
-
Form:
-
plug and wire lead type
-
Sealing materials:
-
pressure regulating valve
-
For:
-
water inlet solenoid valve
-
Body material:
-
pressure regulator valve
-
Principium:
-
directly acting type
-
Color:
-
Yellow
-
Type:
-
pressure valves
-
Body material:
-
solenoid operated valve
-
Standard:
-
RJT
-
Name:
-
Ss316 Ball Valve
Quick Details
-
Port Size:
-
1/8" 1/4" 3/8" 1/2"
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
MI-05 290
-
Brand Name:
-
GOGO
-
Form:
-
plug and wire lead type
-
Sealing materials:
-
pressure regulating valve
-
For:
-
water inlet solenoid valve
-
Body material:
-
pressure regulator valve
-
Principium:
-
directly acting type
-
Color:
-
Yellow
-
Type:
-
pressure valves
-
Body material:
-
solenoid operated valve
-
Standard:
-
RJT
-
Name:
-
Ss316 Ball Valve
hydraulic transmission control valve ball stop cock valves hydraulic shut off valve

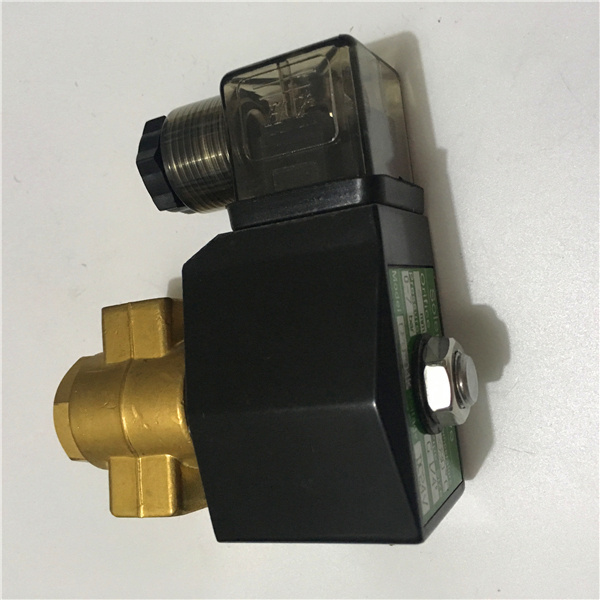

yuken hydraulic solenoid valve
1. Brass ;
2. Stainless steel .
Specification
| Pattern: | Two-port two-position | |||
| Principium: | direct acting type | |||
| Control mode: | normally close | |||
| Valve body: | brass | |||
| Diaphragm material: | NBR: ≤80°C ,FKM≤150°C | |||
| Working pressure: | 0~10bar | |||
| Max pressure: | 10bar | |||
| Voltage: | AC220V AC110V DC12V DC24V | |||
| Medium: | Air ,water ,Liquid ,oil ect. | |||
| Application: | Gas protection welder, various types of burners, test equipment small-flow air water control system | |||
| Model | Pipe |
Orifice
Diameter(mm) |
Principium | CV |
Body
material |
Seal | Work Pressure |
| MI-03 | 1/8" 1/4" | 3 | direct acting | 0.3 |
Brass
, SS304 |
NBR,FKM | 0-13bar |
| MI-04 | 3/8" | 4 | 0.58 | NBR,FKM | 0-7bar | ||
| MI-05 | 1/2" | 5 | 0.65 | NBR,FKM | 0-5bar | ||
| MI-08 | 1/2" | 8 | 1.2 | NBR,FKM | 0-1bar |
Dimensions
(mm)
| Orifice(mm) | A | B | C |
| DN3 | 44 | 25 | 80 |
| DN4 | 44 | 25 | 80 |
| DN5 | 50 | 25 | 80 |
| DN8 | 50 | 25 | 80 |
| Materials of construction | |||
| Parts in contact with the medium | |||
| Valve of body | Brass | SS304 | |
| Seals | NBR ,EPDM ,FKM | ||
| Magnetic isolation pipe | SS304 | ||
| Core | Stainless steel alloy | ||
| Spring | SS304 | ||
| The shading | Copper | ||
small brass and plastic non return valves solenoid gas valve
Packaging & Shipping
- Inner packing: opp bag, then carton box for each product
- Outer packing: export standard carton, Foam outside protecting the goods against damage
- Usually we ship your order by sea or by air...
- We do our best to ship your order within 1 week after receiving your payment
- We accept T/T Bank transfer, L/C, Western Union, Moneygram, Paypal
Our Services
- We have more than 12 years experience in solenoid valves
- Excellent quality control is one of our main principles
- Various style for each products and completely series pneumatic products for you to choose from
- Sample order & small quantity order is ok
- We provide OEM service, accept customer label, develop the product with your drawings or samples
- Any question, will be replyed within 24 hours
