Quick Details
-
Voltage:
-
can be customized
-
Warranty:
-
1 year
-
Certification:
-
ISO9001:2008
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Awi
-
Model Number:
-
XJ
-
Voltage:
-
can be customized
-
Warranty:
-
1 year
-
Certification:
-
ISO9001:2008

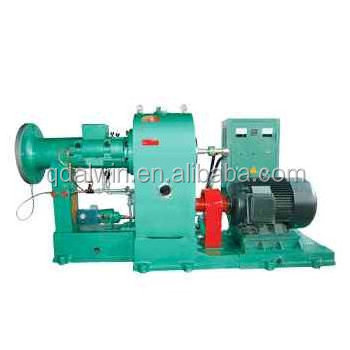

Rubber extruder, is a basic equipment for the rubber industry, is one of the key equipment product quality, plays a very important role in the production process of tire and rubber products. The rubber extruder developed plunger extruder, screw type hot feed extruder, common cold feed extruder, main and auxiliary thread cold feed extruder, cold feed venting extruder, pin cold feed extruder, extrusion machine stage
The extruder is a basic equipment for the rubber industry, is one of the key equipment product quality, plays a very important role in the production process of tire and rubber products.
The development course of 1 rubber extruder
The development course of 1.1 foreign rubber extruder
The rubber extruder developed plunger extruder, screw type hot feed extruder, common cold feed extruder, main and auxiliary thread cold feed extruder, cold feed venting extruder, pin cold feed extruder, extrusion machine stage.
|
Type |
XJ-65 |
XJ-115B |
XJ-120 |
XJ-150 |
XJ-200 |
|
Form of screw&screw thread |
Two-head equal depth convergent type |
Two-head convergent type |
Two-head convergent type |
Two-head unequal depth convergent type |
convergent type |
|
Dia. of screw (mm) |
65 |
115 |
120 |
150 |
200 |
|
L/D of screw |
4 |
4.8 |
4.6 |
4.43 |
4.35 |
|
Compression ratio |
|
1.3 |
|
1.34 |
|
|
Revolving speed of screw (r/min) |
5.2-52 |
5.2-54 |
5.6-55.6 |
20-26 |
22.4-67.2 |
|
Motor power (kw) |
electromagnetic variable-speed 7.5 |
electromagnetic variable-speed 22 |
electromagnetic variable-speed 22 |
f requency conversion speed regulating 55kw /motor |
f requency conversion speed regulating 75 commutator motor 25-75 |
|
Production capacity (kg/h) |
50-80 |
100-420 |
100-450 |
700-1200 |
1500-2200 |
|
Steam pressure (Mpa) |
0.2-0.3 |
0.4-0.6 |
0.2-0.4 |
0.6 |
0.6-0.8 |
|
Pressure of cooling water (Mpa) |
0.2-0.3 |
0.2-0.3 |
0.2-0.4 |
0.2-0.3 |
0.2-0.3 |
|
Overall dim. (LxWxH) (mm) |
1750x550x1100 |
2390x760x1450 |
2427x750x1330 |
3411x814x1470 |
4564x1800x1750 |
For FCL goods, we usually pack machines with stretched film and then load them to the container.
For LCL goods, we usually pack machines with polywood boxes first, and then they will be transported to QINGDAO PORT by truck.
WHY CHOOSE US?
1.We have specialized in rubber machinery for many years;
2.It is a 100% real manufacturer , rather than a trading company;
3. We can design and manufacture all kinds of non-standard machinery according to the requirment of the customers.
4. Our products have passed ISO9001:2008 International Quality Management System Certification.
5. We have professional engineers to provide customers with after-sales service overseas,and give one year quality guarantee and long-term technical support .
"Customers first,quality is the first,truth service and innovation management" is our quality policy,If you have any interesting about our products, please feel free to tell us, we will give you the best service!
WELCOME YOUR INQUIRY!
