Quick Details
-
Weight (KG):
-
400
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANTA
-
Spindle No::
-
2-4 spindles(4 spindles/section)
-
Working speed::
-
<480 M/min (Mechanical speed 550M/min)
-
Machine Colors::
-
Silver/Blue
-
Certification:
-
CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
Quick Details
-
Machine Type:
-
Covering Machine
-
Product:
-
Air covered thread/intermingled thread
-
Material Capabilities:
-
Yarn
-
Weight (KG):
-
400
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SANTA
-
Spindle No::
-
2-4 spindles(4 spindles/section)
-
Working speed::
-
<480 M/min (Mechanical speed 550M/min)
-
Machine Colors::
-
Silver/Blue
-
Certification:
-
CE
-
After-sales Service Provided:
-
Engineers available to service machinery overseas

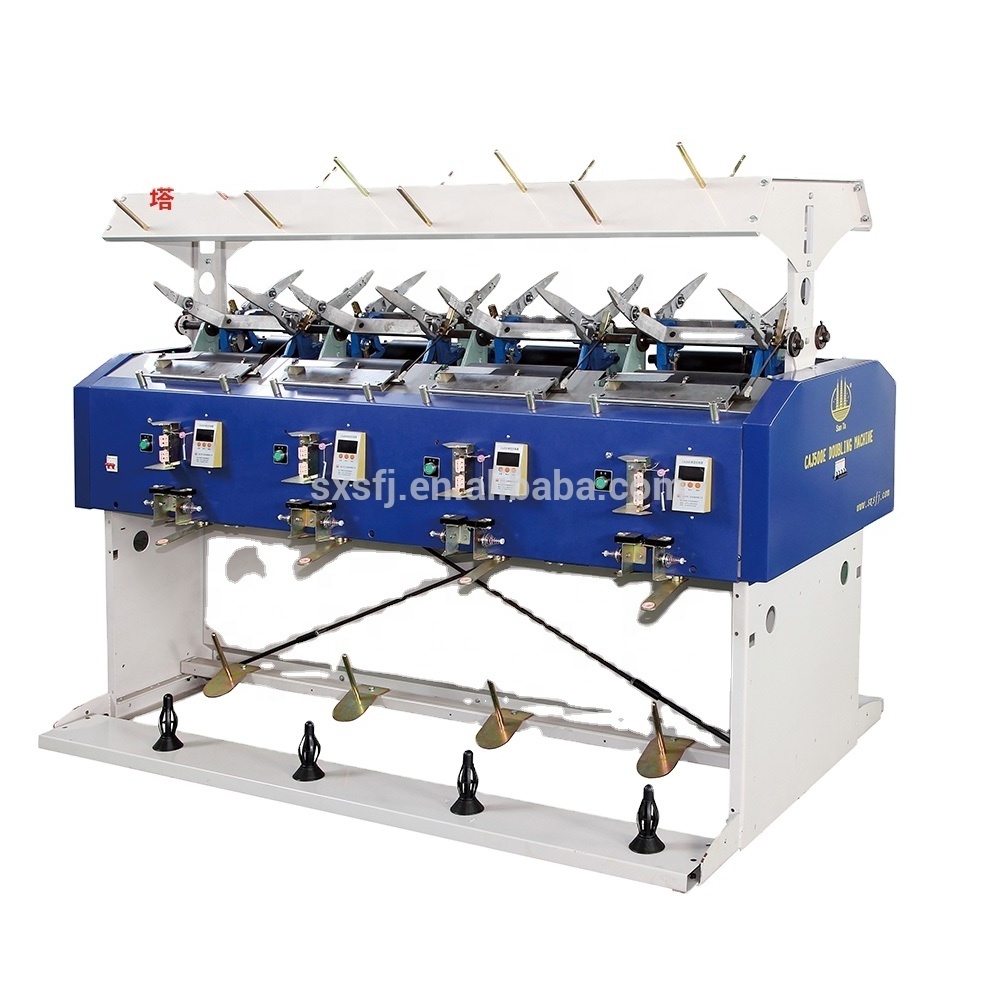

CAJ500S Small Yarn Covering Machine With Lycra/Spandex,the finished yarn mainly used for sock,denim,underwear,knitting and so on
The machine is two sides type, can saving the factory space,it's use Brushless DC Motor, each spindle run separately with energy saving; The workers can knot the break yarns more conveniently with the machine function of slow speed running,and can chenge to fast speed running easily through a button pressing. the machine has the Stroke modification function, it can avoid the hard side take up,so can more better for the next rewinding; with auto stop function when yarn break;with the over feeding system can make the more steady yarn tension; also with oil system for oiling the yarns. Through the controller can set each spindles take up weight( working length),and also can check each spindles working status from the controller, it can reduce the workers labor force much.
Technical parameter :
|
Spindle No.s: |
2-4 spindles(4 spindles/section) |
| Machine Type: | Two sides with single layer |
| working speed: | <420 M/min (Mechanical speed 530M/min) |
| Control: | with Computer controller |
| Suitable yarns: | <3 plys (75-400D Fiber yarns,single ply>40D) 20-70D spandex |
| Draft times: | 2.6-3.4 times |
| feeding yarns: | Over feeding Roller |
| spindle Gauge: | 470mm |
| Length per section: | 1970mm |
| take up bobbin : | Φ69 x Φ57 x 290mm |
| take up Diameter: | <Φ250mm |
| take up weight: | <5kg |
| Winding Type: | Friction roller driving, Slide yarn guider |
| Edge-breaking: | by Stroke modification |
| Machine Power: | 0.5KW/AC380V+ 200W/DC48V/Spindle |
| Machine dimension: | L(1970mm x Section No.s + 785mm) x W1550 x H 1650 MM |
| Machine Weight: | about 250-500 kgs |
