Quick Details
-
Pins:
-
19P
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
AJJ
-
Model Number:
-
C-19ML
-
Color:
-
Black
-
Rate Voltage:
-
AC 20A 220V
-
Insulation Test:
-
500MΩ
-
Housing:
-
Aluminum Alloy
-
Operating Limit Voltage:
-
AC 400V
-
Contact Resistance:
-
3Ω
-
Certification:
-
CE
-
Rated Voltage:
-
AC 1500V
-
Pressure:
-
1800 VAC / Min
-
IP Rating:
-
IP 66
Quick Details
-
Type:
-
Socapex 419 and Veam VSC
-
Application:
-
Power
-
Gender:
-
Male
-
Pins:
-
19P
-
Place of Origin:
-
Taiwan, China
-
Brand Name:
-
AJJ
-
Model Number:
-
C-19ML
-
Color:
-
Black
-
Rate Voltage:
-
AC 20A 220V
-
Insulation Test:
-
500MΩ
-
Housing:
-
Aluminum Alloy
-
Operating Limit Voltage:
-
AC 400V
-
Contact Resistance:
-
3Ω
-
Certification:
-
CE
-
Rated Voltage:
-
AC 1500V
-
Pressure:
-
1800 VAC / Min
-
IP Rating:
-
IP 66
Product Description
| Product Name: | 19 Pin Socapex Connectors IP66 |
|

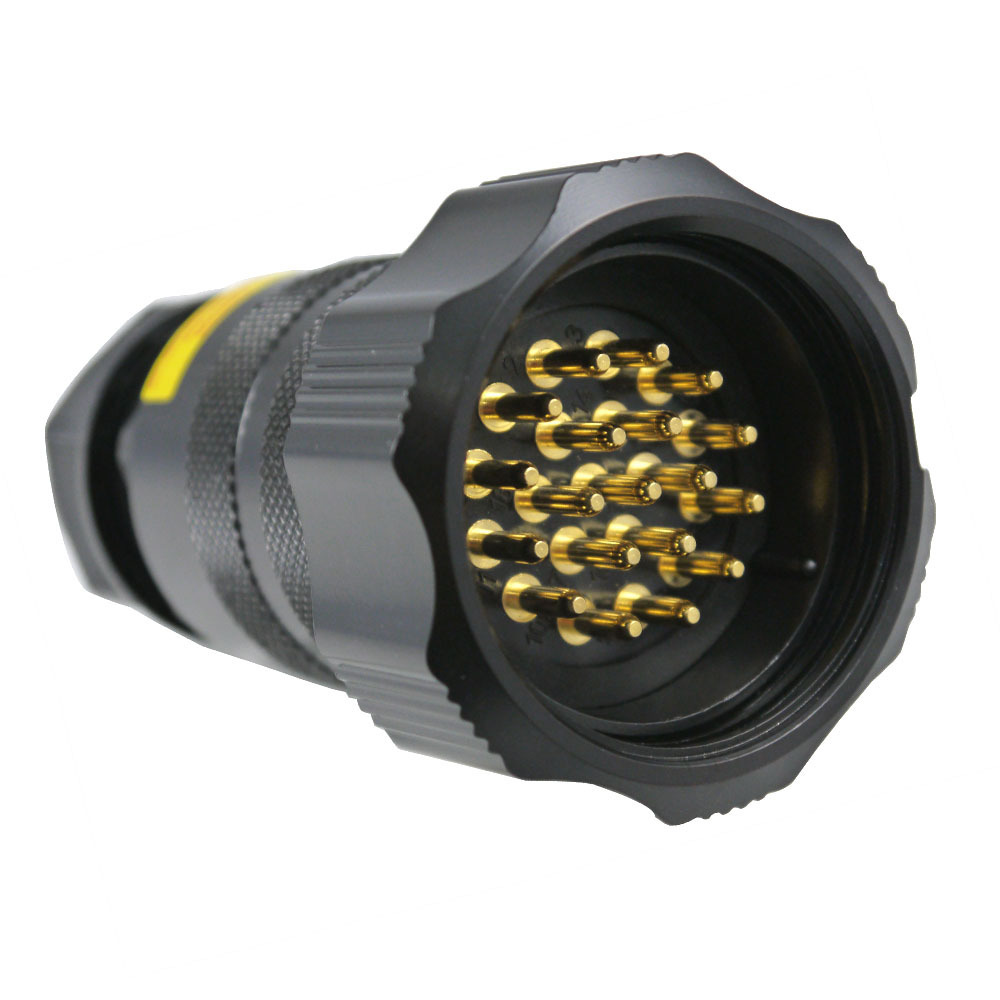

C-19ML 19 Pin Male Cable Connector |
| C-19FL 19 Pin Female Cable Connector | |
| C-19SM 19 Pin Male Panel Mount | |
| C-19SF 19 Pin Female Panle Mount | |
|
Features:
1. Compatible with Socapex "419" and Veam "VSC" connectors. 2. Rugged die-cast aluminum alloy shells with black non-conductive finish. 3. Hard gold plated contacts in solder version. 4. Integral compression-type strain relief handles wide range of cable size. |
|
| Rated Voltage: | AC110-120V, 220-240V |
| Max. Load Current: | AC 20A 220V |
| Operating Limit Voltage: | AC 400V |
| Supply Voltage: | AC 100 ~ 240V, 50/60 Hz |
| Dielectric Strength Test: | 1,800 VAC / Min |
| Insulation Test: | > 500MΩ |
| Contact Resistance: | < 3Ω |
| Terminal Wear Test: | Over 5,000 operations |
| Operating Temperature: | -20 ~ + 85 degree C |
| Body Material: | Aluminum ally |
| Certification: | CE, UL |
Dimensions
C-19ML
C-19FL
C-19SM
C-19SF
Certifications
Packing and Shipping
