DY Mobile Belt Conveyor Dimensions

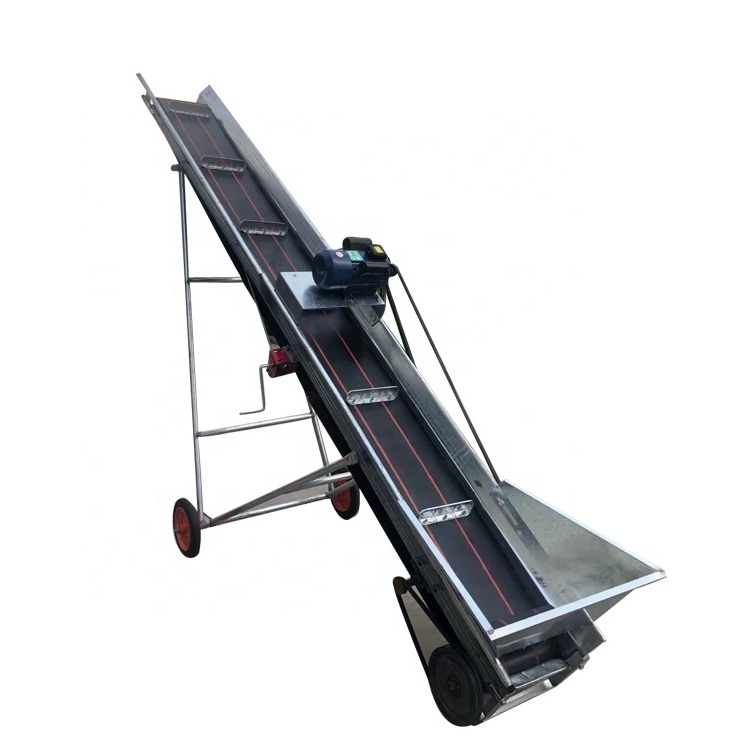

Moving Belt Conveyor
1) Mobile belt conveyor is suitable for limited space, it can be normal operation whether indoors or outdoors,but to minimize the rainy day operations.
2) Moving and through performance is pretty, can be directly loading operations, material handling and other occasions. it can be applied logistics loading and unloading operations.
3) Easy to operate, the machine is equipped with electrical control box contains a master switch, a lift switch. Without human duty, the boot can work.
|
Belt width
(mm) |
Conveying length(m)
Power(kw) |
|
|
Conveying speed
(m/s) |
Conveying amount
(t/h) |
||
|
B400
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
30-60
|
||
|
|
3
|
3-4
|
4-7.5
|
|
|
||
|
B500
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
40-80
|
||
|
|
3
|
4-5.5
|
5.5-7.5
|
|
|
||
|
B650
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
80-120
|
||
|
|
4
|
7.5
|
7.5-11
|
|
|
||
|
B800
|
≤10
|
12-15
|
15-30
|
1.25-2.0
|
120-200
|
||
|
|
4
|
7.5
|
7.5-15
|
|
|
||
|
B1000
|
≤10
|
10-20
|
20-40
|
1.25-2.0
|
200-320
|
||
|
|
5.5
|
7.5-11
|
11-22
|
|
|
||
|
B1200
|
≤10
|
10-20
|
20-40
|
1.25-2.0
|
290-480
|
||
|
|
7.5
|
7.5-15
|
15-30
|
|
|
||
|
B1400
|
≤10
|
10-20
|
＜20-40
|
1.25-2.0
|
400-680
|
||
|
|
11
|
15-22
|
22-45
|
|
|
||
|
B1600
|
≤10
|
10-20
|
＜20-50
|
1.25-2.0
|
600-1080
|
||
|
|
15
|
22-30
|
30-75
|
|
|
||
|
B1800
|
≤10
|
10-20
|
＜20-50
|
1.0-2.0
|
200-1500
|
||
|
|
18.5
|
30-45
|
45-110
|
|
|
||
|
B2000
|
≤10
|
10-20
|
＜20-40
|
1.0-2.0
|
1000-2000
|
||
|
|
22
|
45-55
|
55-132
|
|
|
||
|
B2400
|
≤10
|
10-20
|
＜20-40
|
1.0-2.0
|
1500-3000
|
||
|
|
30
|
55-75
|
75-185
|
|
|
||
Name: Troughing idlers
Brand: Dahan
Original: China
Belt conveyor idler is an important component, accounting for a 35% of the total cost of the belt conveyor, resulting in more than 70% of the resistance, so the quality of the roller is particularly important.
Name:
Non-slip belt
Brand:
Dahan
Original:
China
Non-slip belt for conveying the material transport 17 ° angle and then over.Main industry applications: Tobacco, logistics, packaging, printing, food, wood and ect.
We provide 12months quality warranty to make sure your machine well runs consistently.
a. Professional engineer design the
production line for you
b.Recommend suitable equipment
according to your special demand.
a.Precheck and accept products
befor edelivery
b.Send technicians to the jobsite
for guiding the installation and
adjustment
c.Training operators and finishing
the check to satisfy your requiremnet
a.Common problem can be solved
through web in 24 hours,complex
problem can be reacted immediately
in 24 hours and solved as soon as
possible
b.To establish long-term friendship,
we will regulary contact with our
customers.
