Quick Details
-
Brand Name:
-
TM
-
Dimension(L*W*H):
-
standard
-
Weight:
-
540 KG
-
Features:
-
Great
-
Key Selling Points:
-
multi function
-
futures:
-
compact structure
-
Advantage::
-
Flexible Cost Saving
-
Excavation depth flat bottom::
-
1850-2900mm
Quick Details
-
Core Components:
-
other
-
Application:
-
ditching, digging, excavating
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TM
-
Dimension(L*W*H):
-
standard
-
Weight:
-
540 KG
-
Features:
-
Great
-
Key Selling Points:
-
multi function
-
futures:
-
compact structure
-
Advantage::
-
Flexible Cost Saving
-
Excavation depth flat bottom::
-
1850-2900mm
Product Description
Specification
|

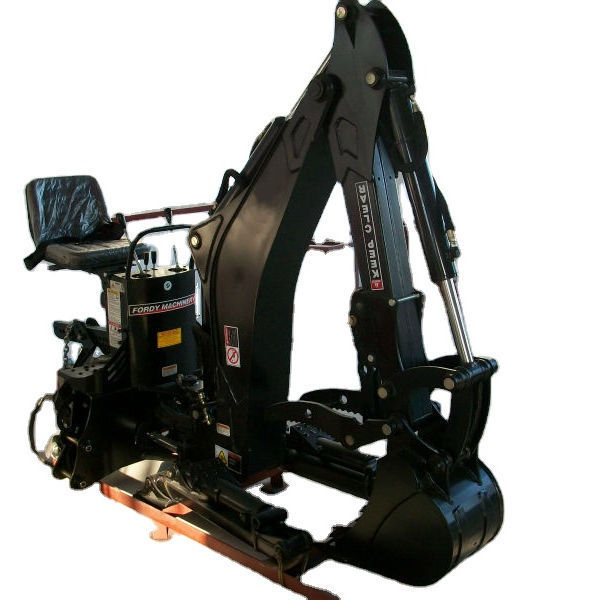

Tractor Backhoe
|
|
|
|
|
|
|||||
|
Model
|
LW-6
|
LW-7
|
LW-8
|
LW-9
|
|
|||||
|
Horsepower Range
|
20-35
|
20-45
|
30-75
|
40-100
|
|
|||||
|
Overall size
|
550×1480×2130
|
2000×1860×2500
|
2140×1860×2800
|
2300×1750×2800
|
|
|||||
|
Max.digging depth(mm)
|
1850
|
2150
|
2640
|
2900
|
|
|||||
|
Max.digging radius(mm)
|
2800
|
3360
|
3930
|
3977
|
|
|||||
|
Max.digging height(mm)
|
2500
|
3400
|
3510
|
3900
|
|
|||||
|
Clischarging height(mm)
|
1400
|
1760
|
2000
|
2362
|
|
|||||
|
Max.digging depth(2ft) Flat botton(mm)
|
1600
|
2000
|
2500
|
2760
|
|
|||||
|
Swing Angle(。)
|
140
|
140
|
140
|
140
|
|
|||||
|
Bucket Rotation(。)
|
160
|
160
|
160
|
150
|
|
|||||
|
Operating Digging Force(KG)
|
16Mpa
|
16Mpa
|
16Mpa
|
16Mpa
|
|
|||||
|
Dipperstick Digging Force(KG)
|
790
|
950
|
1000
|
1270
|
|
|||||
|
Shipping Weight(approx)kg
|
470
|
540
|
600
|
820
|
|
|||||
|
Size(mm/inch)
|
300/12
|
450/18
|
400/16
|
500/20
|
550/22
|
|||||
|
Cap.(m3)
|
0.036
|
0.054
|
0.048
|
0.06
|
0.066
|
|||||
