Electric Rail Drilling Machine

FOB Reference Price: Get Latest Price

≥1 Sets

US $619

≥50 Sets

US $599

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Drilling Speed:: 60s max.

Place of Origin:: China

Brand Name:: HANZI

Model Number:: NZG-31

Voltage:: 220V, 380v

Dimension(L*W*H):: 650*230*250

Power (kW):: 1

Weight (KG):: 50 KG

Applicable Industries:: Railway Rails

Marketing Type:: Hot Product 2023

Product Name:: Electric Rail Drilling Machine

Certificate:: ISO9001:2015

HS Code:: 860120

Application:: Rail Maintenance

Power:: 0.95(kw )/3600(r/rpm)

Engine:: Honda

Surface:: Paint

Rail Gauge:: Broad Gauge, Narrow Gauge

Diameter of the hole:: 10mm-36mm

Quick Details

type:: Fashion

Max. Drilling Dia. (mm):: 36

Range of Spindle Speed(r.p.m):: 2500 - 3000 r.p.m

Drilling Speed:: 60s max.

Place of Origin:: China

Brand Name:: HANZI

Model Number:: NZG-31

Voltage:: 220V, 380v

Dimension(L*W*H):: 650*230*250

Power (kW):: 1

Weight (KG):: 50 KG

Applicable Industries:: Railway Rails

Marketing Type:: Hot Product 2023

Product Name:: Electric Rail Drilling Machine

Certificate:: ISO9001:2015

HS Code:: 860120

Application:: Rail Maintenance

Power:: 0.95(kw )/3600(r/rpm)

Engine:: Honda

Surface:: Paint

Rail Gauge:: Broad Gauge, Narrow Gauge

Diameter of the hole:: 10mm-36mm

Factory Shows

Welcome to our company Hanzi Industrial Shanghai Co., Ltd, a professional and experienced exporter of railway equipment and maintenance machinery. With over a decade of expertise in the field of international trade, we offer a broad range of specialized products, including Rail Cutting Machines , Rail Drilling Machines , Rail Grinding Machines , Rail Tamping Machines , Ballast Regulators , Rail Lifting Machines , Rail Gauge Rulers, Leveling Machines , Rail Stretching Machines , Bolt Wrenches , Rail Welding Machines , Straightening Machines , Rail Aligners , Rail Jack , Rail Joint Adjusters , Rail Rescue Devices , Rail Flippers , Derailment Switches, Track Moving Cars , Grinding Wheels , Drill Bits , and Steel Rails and Rail Fasteners.

Our products have been exported to over 60 countries around the world, and we are proud to be able to provide our clients with a comprehensive range of railway parts and accessories. At our company, we understand the importance of delivering high-quality and reliable railway equipment that meets the needs of our clients, whether they are involved in the construction, maintenance, or upgrading of railway systems.

With our team of knowledgeable and experienced professionals, we are committed to providing our clients with the best possible service, from the initial design and consultation stage to the final delivery of our products. We believe that our attention to detail and our commitment to customer satisfaction sets us apart from our competitors.

So if you are looking for a reliable and experienced supplier of railway equipment, look no further than our company. Contact us today to discuss your requirements and to see how we can help you achieve your goals!

Electric Rail Drilling Machine

INVENTORY AND PACKAGING

Product Description

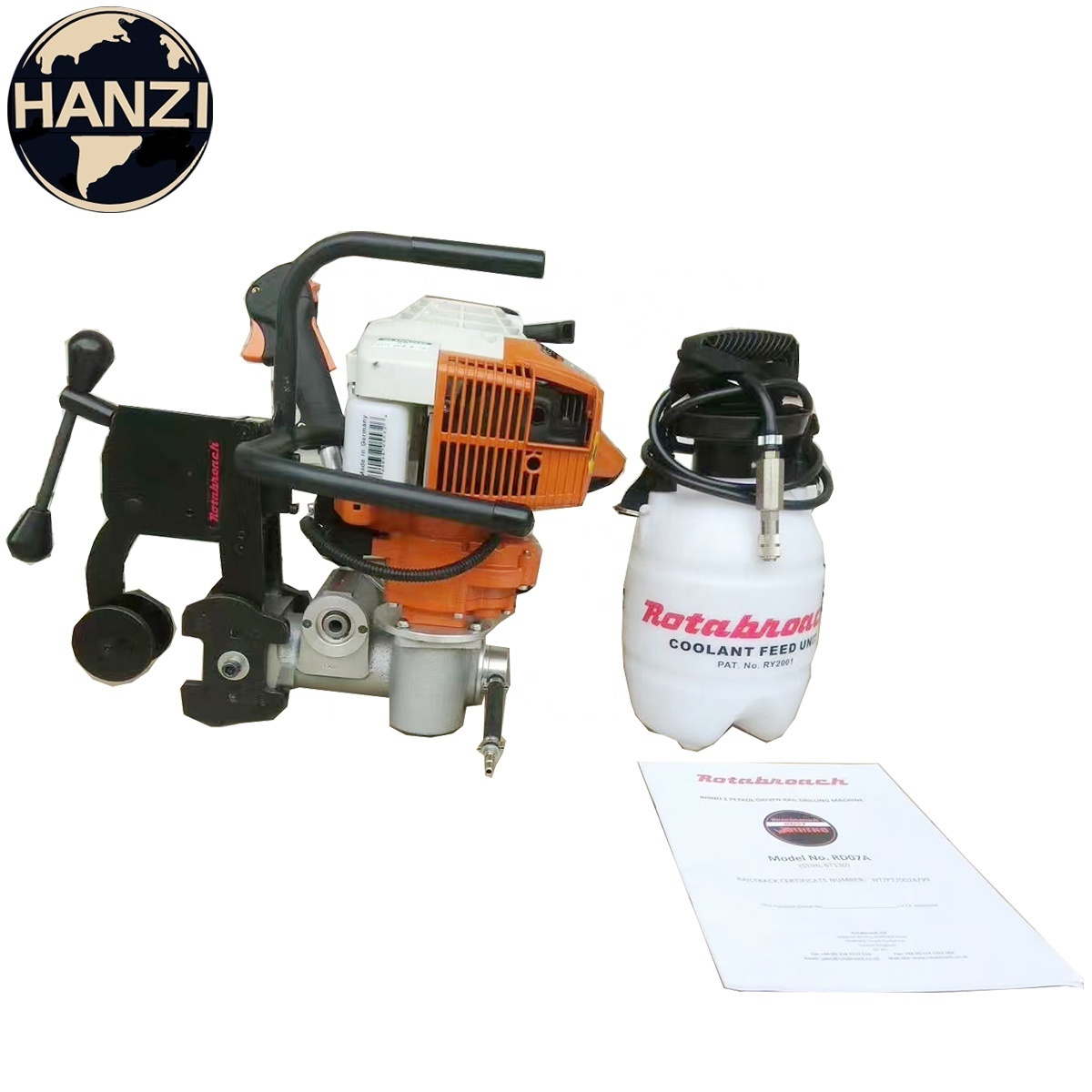

NGZ-31 Internal Combustion Rail

Drilling Machine

1. Power: Honda GX35 gasoline engine, 1.1kW (or Komatsu G4L type; HP two-stroke gasoline engine or Mitsubishi TB43 type);
3. Drill speed: ≤300 r.p.m (260r/min);
3. Drill size: 9.8-φ36mm;
4. Drill stroke: 35mm;
5. Dimensions: 500×350×440mm 6 Overall weight: 18kg

LD-41P Internal Combustion Rail Drilling Machine

Engine: Four-stroke • Displacement: 35.8 cc ・Fuel: Regular unleaded gasoline" ・Start: Pull rope to start •Clutch: Automatic Fence Center ・Power: 1.3 HP; 1 kW" •Drilling range: 0 7-40 mm -With broach: Drill hole diameters on rails up to 50mm thick 13~40 mm hole. - With special auger bit: on rails up to 45mm thick Drill holes with a diameter of 7~27.5 mm.

DZG-35 Rail Drilling Machine

1. Drilling range: Φ9.8mm—Φ36mm
2. Hole depth: 50mm
3. Spindle: 19mm
4. No-load speed: 595rpm
5. Electrical parameters: 230V/50Hz/1800W
6. The stroke is not less than: 190mm
7. Net weight: 12kg
8. Gross weight: 19kg
9. Dimensions: 475*355*145mm
10. Suitable for 43-75kg/m various types of rails

LZG-31 Lithium Battery Rail Drilling Machine

1. Power form Motor (lithium battery) Motor power 1.0kW

2. Lithium battery voltage 36 V
3. Lithium battery capacity 18.2 Ah

4. No-load speed w300r/min

5. Drilling efficiency w35s/hole
6. Drilling accuracy Hole size limit deviation
W0.2, position deviation W1.0
7. Drilling diameter 031 mm drilling stroke, 40mm

8. Machine weight 16kg
9. Dimensions 385x250x450 mm

DZG-31 Electric Drilling Machine

1. Drilling range: Φ9.8—Φ36mm
2. Motor: voltage 380v/power 550w"
3. Working speed: 240n/min
"4. Installation time: 20-30s Unloading time: 15-20s
5. Drilling time is less than 1.5min"
6. The stroke is not less than 105mm
7. Hole deviation: ±0.5mm
8. Dimensions: 500 × 480 × 250 (mm)
9. Weight of the whole machine: 23kg
10. Drill shank taper: Mohs 3~4#
11. Applicable to various types of rails of 43-75kg/m.

ZG-13 Electric Rail Drilling Machine

1. Voltage: 220V
2. Power: 420W
3. Large drilling diameter: 13mm

4. Speed: 550r/min
5. Dimensions: 730×190×290mm
6. Mass: 10kg

ZG-23 Electric Rail Drilling Machine

1. Motor: 220V Power: 1000W
2. Drilling diameter: φ9.8---23mm
3. Speed: 300r/min
4. Mass: 18kg
5. Dimensions: 900×290×300mm
6. Installation time: 20S Unloading time: 5S
7. Drilling time: 60S
8. Drill shank taper: 2---3#
9. Suitable for 43---75kg/m various types of rails
