Quick Details
-
Brand Name:
-
SX
-
Model Number:
-
SX-101
-
Product name:
-
Cattle fence
-
Applicatin:
-
livestock confinement
-
material:
-
high tensile 450 grade galvanised SHS
-
Surface treatment:
-
Galvanized+PVC Coated
-
Certification:
-
ISO9001:2008
-
Packing:
-
Pallet
-
Function:
-
Long Life
-
Color:
-
Silver
-
Advantage:
-
Low Cost
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, ECO FRIENDLY, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SX
-
Model Number:
-
SX-101
-
Product name:
-
Cattle fence
-
Applicatin:
-
livestock confinement
-
material:
-
high tensile 450 grade galvanised SHS
-
Surface treatment:
-
Galvanized+PVC Coated
-
Certification:
-
ISO9001:2008
-
Packing:
-
Pallet
-
Function:
-
Long Life
-
Color:
-
Silver
-
Advantage:
-
Low Cost

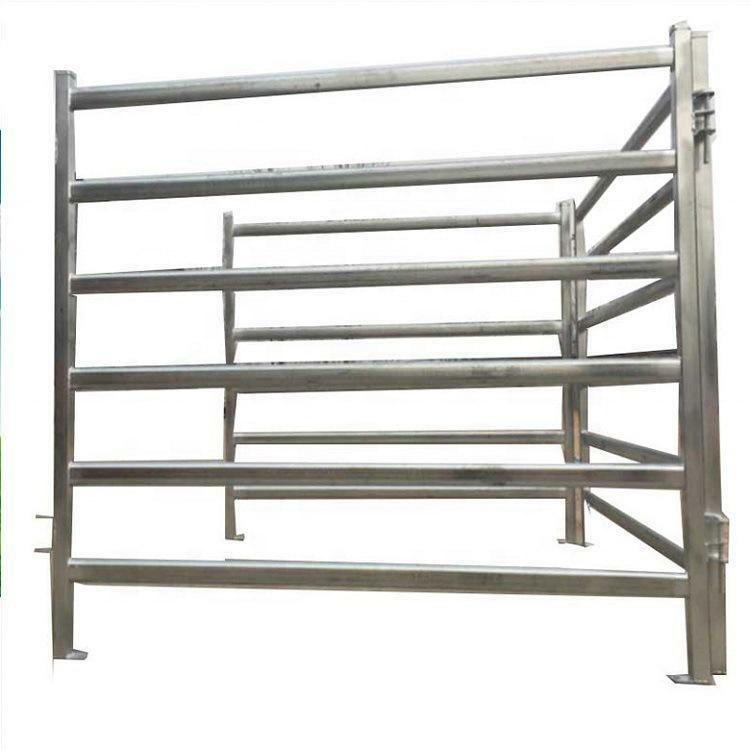

Durable galvanized steel farm fence panel/cattle livestock panels and gates
Livestock panel also called horse panel, Cattle panel and yard panel gates
Materials:
high tensile 450 grade galvanised SHS
Corrosion Form:
hot-dipped galvanized then zinc paint
Features:
It can quickly and easily be installed, without the need to disturb the surface area by digging holes or laying foundations.
Main markets:
Australia, European countries, Canada, America and Asia countries.
Description:
-Elongated lug holes in brackets, for ease when connecting..
--with welded top caps and foot plates, water and dust proof
--welded "U" and "L" lugs for easy connection.
The lugs are welded to bracket all four sides, very durable.
durable galvanized steel farm fence panel/cattle livestock panels and gates
Popular Specification:
Can also contact me directly for the most professioal suggestion.
|
Specification |
Normal size |
|
Height x Length |
1.8m x 2.1m, 1.6 x 2.1m, 1.8m x 2.4m and so on |
|
Pole style |
Round pipe or square tube or oval tube
|
|
Pole specification |
32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on, JUST AS YOUR REQUIREMENT |
|
Package details |
In steel pallet or in bulk |
The Components
all heavily galvaized for long lifespan
durable galvanized steel farm fence panel/cattle livestock panels and gates
|
Budget Panel
|
260mm nominal height between rails |
|
Purpose:
Holding portable yard panel 2.2m x 1.8m x 6 rails
40 x 40 x 1.6mm
Inc. Painted steel caps, feet and long pins
|
|
durable galvanized steel farm fence panel/cattle livestock panels and gates
|
Heifer Panel
|
260mm nominal height between rails |
|
Purpose:
Holding portable yard panel - Low volume use only 2.2m x 1.5m x 5 rails
40 x 40 x 1.6mm
Inc. Painted steel caps, feet and long pins
|
|
durable galvanized steel farm fence panel/cattle livestock panels and gates
GATE IN FRAME
|
Low 2.4m G.I.F.
|
2.4m G.I.F.
|
3.3m G.I.F.
|
|
|
|
|
|
Purpose: Intermediate yard gate
(low volume use) Frame: 2m high x 2.4m wide 40 x 40 x 1.6mm Gate: 1.5m high x 2.15m wide 40 x 40 x 1.6mm x 6 rails |
Purpose: Intermediate yard gate
Frame: 2.4m high x 2.4m wide 50 x 50 x 1.6mm Gate: 1.5m high x 2.15m wide 40 x 40 x 1.6mm x 6 rails |
Purpose: Entry yard gate
Frame: 2.4m high x 3.3m wide 50 x 50 x 1.6mm Gate: 1.5m high x 3m wide 50 x 50 x 1.6mm x 6 rails |
durable galvanized steel farm fence panel/cattle livestock panels
|
Double Gate in Frame
|
||
|
|
Purpose: Entry gate
Frame: 2.4m high x 4.6m wide 65 x 65 x 3mm Gates: 1.8m high x 2.15m wide x 2 off 40 x 40 x 1.6mm |
|
|
Manway Gate
|
Silde gate |
Manway Gate in Panel
|
|
|
||
|
Purpose: Personnel access gate
Frame: 2.4m high x 0.75m wide Gate: 1.8m high x 0.6m wide 40 x 40 x 1.6mm x 6 rails |
Purpose: Controls movement in race
Nylon rollers:
|
Purpose: Personnel access gate with the same dimensions as a standard panel
|
durable galvanized steel farm fence panel/cattle livestock panels and gates
