Quick Details
-
Brand Name:
-
Atech sensor
-
Model Number:
-
PL806
-
Process Pressure:
-
-0.1~4 Mpa
-
Protection class:
-
IP67
-
Measuring range:
-
30M
-
Signal output:
-
4...20mA/HART/RS485/Modbus...
-
Working temp:
-
-20℃~ +60℃
-
Accuracy:
-
2mm
-
Frequency range:
-
26G
-
Material:
-
316L
-
Color:
-
orange, blue, yellow, white, silver grey
-
Certification:
-
CE, FCC
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
1 years
-
Place of Origin:
-
Shanxi, China
-
Brand Name:
-
Atech sensor
-
Model Number:
-
PL806
-
Process Pressure:
-
-0.1~4 Mpa
-
Protection class:
-
IP67
-
Measuring range:
-
30M
-
Signal output:
-
4...20mA/HART/RS485/Modbus...
-
Working temp:
-
-20℃~ +60℃
-
Accuracy:
-
2mm
-
Frequency range:
-
26G
-
Material:
-
316L
-
Color:
-
orange, blue, yellow, white, silver grey
-
Certification:
-
CE, FCC
Introduction

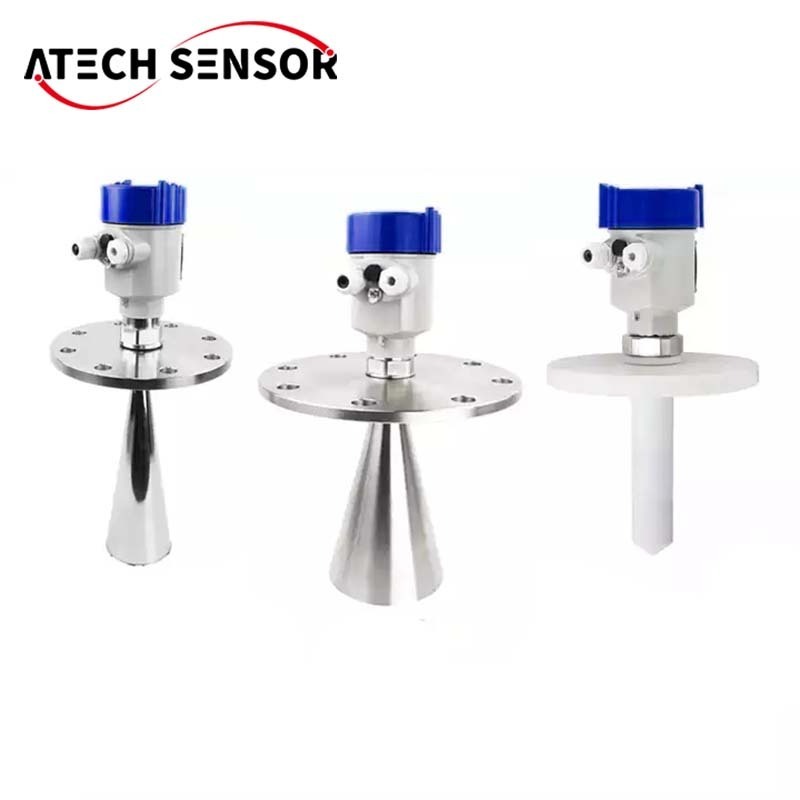

26G radar level gauge is suitable for liquid, paste, granule and block material level and non-contact measurement, suitable for changes in temperature,pressure big; there is an inert gas and volatile.The measurement method of microwave pulse, can work normally in the industrial frequency band range. The beam energy is low, can be installed on all kinds of metal, non-metallic container or pipe, no harm to human body and environment
Operation principle
Radar level sensor antenna of radar level gauge transmits the narrow microwave pulses and downward transmission by the antenna. Microwave is reflected back and received by the antenna system again, when the microwave exposure to the measured medium surface, and transmit the signal to the electronic circuit parts automatically converted into level signal
Features of
26G Radar Level Sensor
1). Antenna size is small, easy to install;
2). Non-contact radar, no wear, no pollution.
3). Almost free from corrosion, foam impact;
4). It is almost free from water vapor in the atmosphere, temperature and pressure changes.
5). Severe dust working environment has little effect on high-frequency level meter.
6). Shorter wave length that has a better reflection on the inclined solid surface.
7). Small beam angle, energy concentration, enhanced echo capabilities meanwhile beneficial to avoid interferences.
8). Measuring blind zone is smaller, it will achieve good results for canister’s measuring.
9). High signal to noise ratio, even in the case of fluctuations can obtain better performance.
10). High frequency, it is the best choice for measurement of solids and low dielectric media.
| PL-805 | |||
|
Application : All kinds of corrosive liquid Measuring Range : 10 meters Process Connection : Thread, Flange Medium Temperature : -40 ℃ ~ 130 ℃ Process Pressure : -0.1~0.3 MPa Accuracy : ± 5mm Protection Grade : IP67 Frequency Range : 26GHz Signal Output : 4~ 20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade : Exia Ⅱ C T6 Ga/ Exd ia IIC T6 Gb |
||
|
|||
|
Application:Anti-high temperature, Anti-high pressure ,Liquid, Mildly corrosive liquid
Measuring Range:30 meters Process Connection:Thread, Flange Medium Temperature:-40℃ ~ 250℃ Process Pressure:-0.1 ~ 4.0 MPa Accuracy: ±3mm Protection Grade:IP67 Frequency Range: 26GHz Signal Output:4~20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
||
|
|||
|
Application:Solid material, Strong dust
Easy to crystallize, condensation occasion Measuring Range: 70 meters Process Connection:Universal Flange Medium Temperature: -40℃ ~ 250℃ Process Pressure: -0.1 ~ 0.1 MPa Protection Grade: IP67 Accuracy: ±15mm Frequency Range:26GHz Signal Output:4~20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
||
| PL-808 | |||
|
Application:Solid material, Strong dust,
Accuracy: ±15mm
RS485/ Modbus
|
||
| PL-809 | |||
|
Application:Solid particles, Powder
Measuring Range:Liquid 30m/Solid 20m/powder 15m Process Connection:Thread, Flange Medium Temperature:-40℃ ~ 250℃ Process Pressure:-0.1 ~ 4.0MPa (Flat Flange) -0.1 ~ 0.1MPa (Universal Flange) Accuracy:±10mm Protection Grade:IP67 Frequency Range:26GHz Signal Output:4... 20mA/HART (Two-wire / Four) RS485/ Modbus Explosion-proof Grade:Exia ⅡC T6 Ga/ Exd ia IIC T6 Gb |
|||
| PL-810 | |||
|
A
pplication:Hygienic liquid storage, Corrosive medium container
Four-wire (DC24V/AC220V)
|
|||
