Hessan Woodworking machine High-glossy PUR hotmelt glue MDF Paper PVC Sticking production line/ panel laminating machine

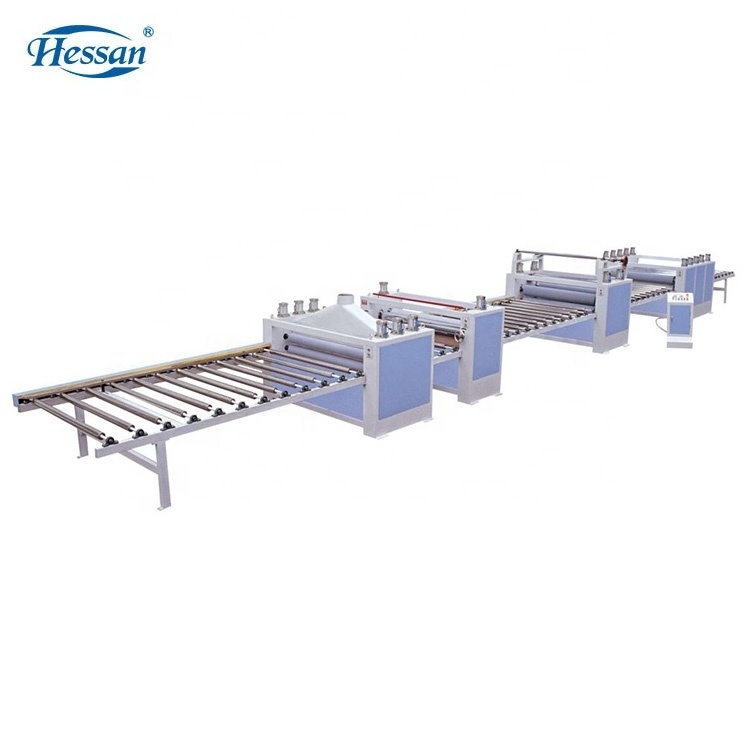

Item: Guangzhou Cold Glue Paper Pressing Laminating Machine on Board

Model: HY-T-668C

Advantages:

1) More than 20 years production experiences;

2) Provide overseas service;

3) Acquired ISO9001 & CE certificates;

4) Good experiences in world market,products are exported more than 20 countries.

Specifications:

1) HY-T-668C is specialize in sticking the decorating paper or PVC on the MDF, chipboards and
plywood for producing panel of furniture which high efficient capability and pressure create a smoothly excellent surface of the finished product.

2) Surface materials: decorating paper, PVC foils, PU paper;
3) Base materials: Plywood, particleboard, hardboard, MDF, Gypsum board;
4) Cold Glue: PVAC glue, latex glue, UF glue.

Including:

1) Dust cleaning machine: 1set
Brushing roller: Φ190X1350mm,1pcs; Nature rubber roller: Φ114X1350mm, 5pcs;
Upper roller lifting power: 0.75kw; Transmission driving by conveying motor

2) Glue spreading:
Nature rubber roller: Φ190X1350mm, 2pcs; Dosing roller: Φ156X1350mm, 1pcs;
Transmission power: 2.2kw; Upper roller lifting power: 0.75kw;

3) Heating Oven:
Heating pwer:30KW; Power supply by the sticking machine

4) Sticking machine: 1set
Nature rubber roller: Φ270mm; 4pcs; PVC heating roller: Φ156X1350mm, 1pcs;
Transmission power: 2.2kw; Upper roller lifting power: 0.75kw; Auto paper cutting.

5) Pressing machine: 1 set
Nature rubber roller: Φ270X1350mm, 7pcs; Chrome plate pressing roller: Φ270X1350mm, 3pcs, 2kw/pcs;
Transmission power: 2.2kw; Upper roller lifting power: 0.75kw;

PS:This production line is electrical speed control
