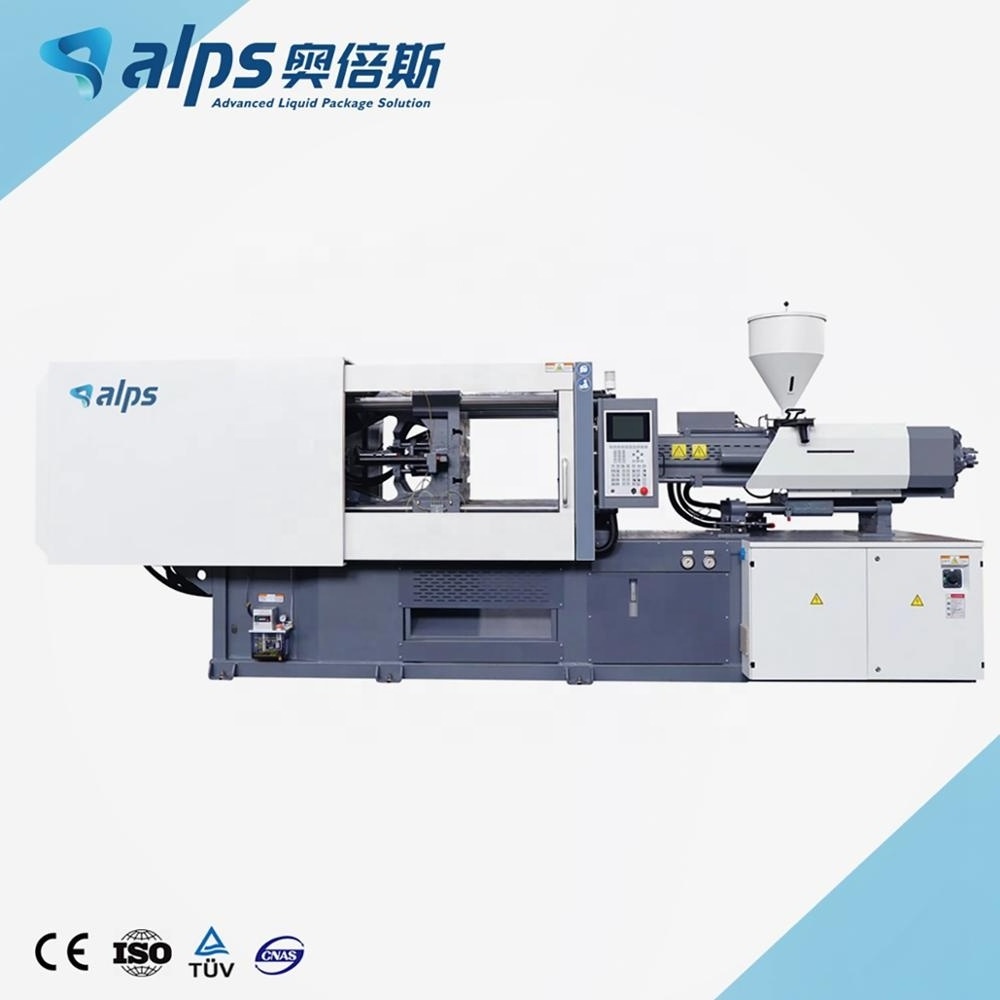

Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine
Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine
Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine
Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine
Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine
Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine
Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine
Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine

Automatic Servo Type Plastic Beverage Drink Bottle Tube Capsule PET Preform Making Injection Molding Machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $35000
≥3 Sets
US $25000
≥5 Sets
US $19000
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Mold Height(mm):
280 - 680 mm
Ejector Stroke(mm):
190 mm
Ejector Force(kN):
180 kN
Theoretical Shot Volume(cm³):
3160 cm³
Injection Rate (g/s):
650 g/s
Injection Weight (g):
1600 g
Screw Speed (rpm):
156 - 200 rpm
Screw diameter (mm):
85 mm
Screw L/D Ratio:
24
Distance between Tie Bars:
760x760
Weight (KG):
15000 kg
Place of Origin:
Jiangsu, China
Open Stroke(mm):
680 mm
Model Number:
INJXXX
Brand Name:
ALPS
Power (kW):
72 kW
Name:
Injection molding machine
Automatic:
Yes
Controlled:
PLC (SIEMENS)
Drive type:
Hydraulic system
Voltage:
Customed Avaiable
Application:
PET preform / Cap
LANGUAGE:
Language Customized
Motor:
Servo Motor
Machine dimension(L*W*H):
7.3*1.85*1.4m
Injection Pressure:
80MPa-200MPa

Quick Details

Distance between Tie Bars(Width)(mm):
680mm
Distance between Tie Bars(Height)(mm):
680mm
Plasticizing Capacity(g/s):
3100g
Mold Height(mm):
280 - 680 mm
Ejector Stroke(mm):
190 mm
Ejector Force(kN):
180 kN
Theoretical Shot Volume(cm³):
3160 cm³
Injection Rate (g/s):
650 g/s
Injection Weight (g):
1600 g
Screw Speed (rpm):
156 - 200 rpm
Screw diameter (mm):
85 mm
Screw L/D Ratio:
24
Distance between Tie Bars:
760x760
Weight (KG):
15000 kg
Place of Origin:
Jiangsu, China
Open Stroke(mm):
680 mm
Model Number:
INJXXX
Brand Name:
ALPS
Power (kW):
72 kW
Name:
Injection molding machine
Automatic:
Yes
Controlled:
PLC (SIEMENS)
Drive type:
Hydraulic system
Voltage:
Customed Avaiable
Application:
PET preform / Cap
LANGUAGE:
Language Customized
Motor:
Servo Motor
Machine dimension(L*W*H):
7.3*1.85*1.4m
Injection Pressure:
80MPa-200MPa
Product Description

Servo Type Plastic Injection Molding Machine

*We supplied clamping force ranges from 98ton to 3400ton injection molding machine. besides, we also have special machine for PVC, PET, Variable Pump, clear double color, servo-motor machine,high speed injection machine.

Technical Parameter :injection molding machine
Model
Clamping  Force
Shot weight  A/B
Heat power
Pump power
Oil tank capacity
Dimensional
Weight
BST-1000A
1000KN
128g
162g
7.6KW
11KW
180L
4.3*1.5*1.6M
3.4t
BST-1320A
1320KN
188g
205g
8.2KW
13KW
200L
4.5*1.6*1.7M
3.9t
BST-1400A
1400KN
230g
252g
8.2KW
13KW
220L
4.8*1.6*1.7M
4.2t
BST-1650A
1650KN
286g
326g
8.2KW
15KW
250L
5.0*1.6*1.7M
5t
BST-1800A
1800KN
335g
378g
11KW
15KW
250L
5.3*1.6*1.8M
5.5t
BST-2050A
2050KN
415g
472g
11.6KW
17KW
270L
5.4*1.6*1.8M
6t
BST-2300A
2300KN
546g
592g
11.6KW
18.5KW
300L
5.7*1.8*2.0
6.5t
BST-2600A
2600KN
650g
690g
15.5KW
25KW
350L
6.1*1.7*1.8
8t
BST-3000A
3000KN
709g
760g
15.5KW
25KW
370L
6.5*1.8*1.8
9t
BST-3400A
3400KN
772g
826g
17.5KW
30KW
400L
6.7*2.0*1.9
10.8t
BST-3850A
3850KN
1008g
1072g
17.5KW
30KW
400L
7.0*2.2*2.0
11.8t
BST-4500A
4500KN
1430g
1512g
20.5KW
37KW
450L
7.3*2.3*2.4
13.8t
BST-4800A
4800KN
1590g
1670g
23.4KW
40KW
600L
8.3*2.2*2.2
16.2t
BST-5200A
5200KN
1980g
2130g
28.1KW
43.5KW
750L
8.6*2.2*2.3
20t
BST-5800A
5800KN
2230g
2430g
28.1KW
48.5KW
850L
8.75*2.2*2.3
21.8t
BST-6500A
6500KN
2745g
2870g
37.1KW
55KW
1000L
9.2*2.2*2.4
26t
BST-7500A
7500KN
3810g
3960g
40.9KW
67KW
1200L
10.7*2.3*2.7
38t
BST-8500A
8500KN
4200g
4350g
42.5KW
74KW
1300L
11*2.4*2.8
45t
