Wuhan HUAYI Electric was founded in 2005, located in Wuhan City, China. We are a professional manufacturer of electric testing equipment with over 15 years industry experience, engaged in high voltage tester with high performance, good quality, customized specification and easy operation. ISO qualified factory, strong R&D team and after-sales engineers make us gain good feedback from wide customers. HUAYI is committed to preventative, maintenance, troubleshooting and commissioning all the time. Our products are involved in
AC/DC Hipot tester,
series resonant test system
,
transformer tester,
relay tester
,
circuit breaker/switch tester
,
oil/SF6 tester,
cable tester
and other electric instruments, widely adapted to electric power, water conservation, oil, railway, mine, chemical.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HUAYI
-
Model Number:
-
BYKC-3000
-
Product name:
-
Testing Machine
-
Application:
-
Electrics
-
Power supply:
-
220V
-
Function:
-
Detect
-
Certificate:
-
ISO 9001
-
Type:
-
Portable
-
Keyword:
-
Breaker Tester
-
Color:
-
White
-
Display:
-
LCD
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
HUAYI
-
Model Number:
-
BYKC-3000
-
Product name:
-
Testing Machine
-
Application:
-
Electrics
-
Power supply:
-
220V
-
Function:
-
Detect
-
Certificate:
-
ISO 9001
-
Type:
-
Portable
-
Keyword:
-
Breaker Tester
-
Color:
-
White
-
Display:
-
LCD
Product Description
Introduction

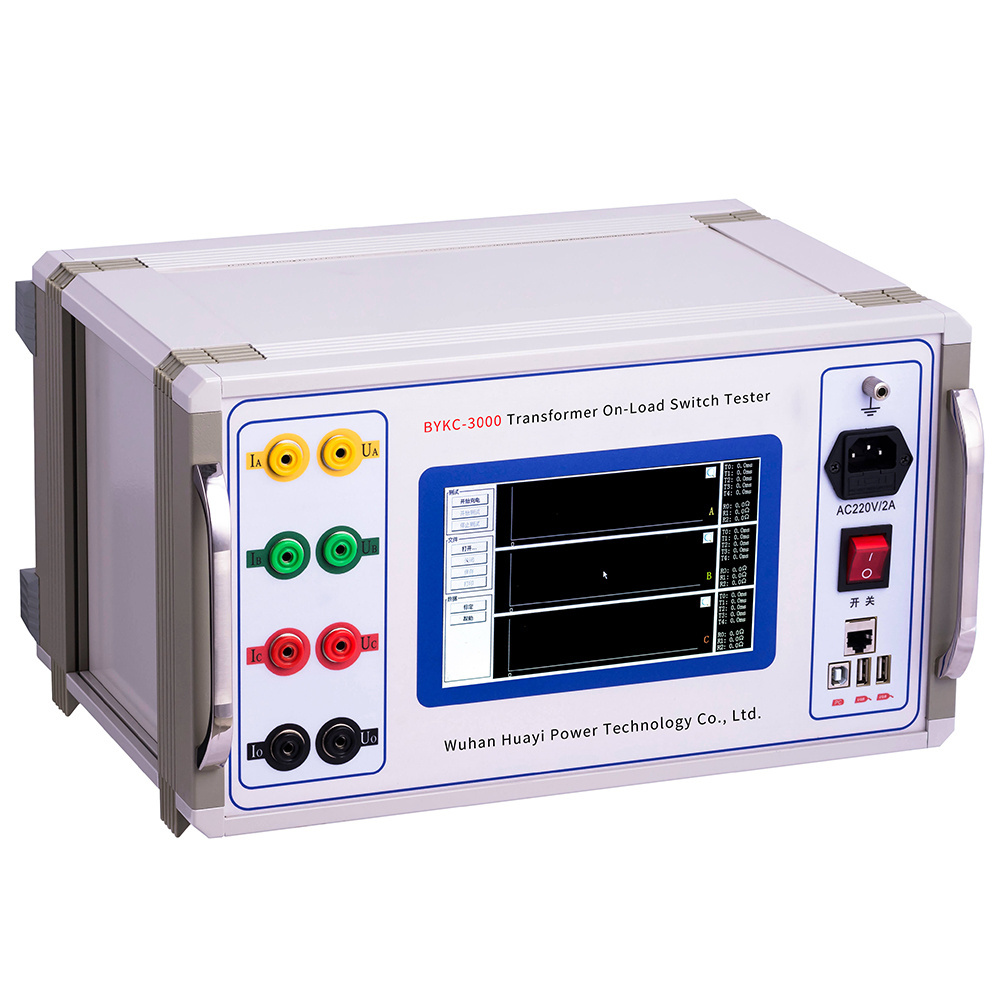

Transformer On Load Tap Changer Analyzer Transition Waveform Test Set BYKC-3000
Laura whatsapp: +86 15102796928
Features
1. Test Y0Y△ type transformer, displaying resistance value directly without conversion
2. With humanized data analyzing, it can find the fault in waveform automatically and make remarks.
3. Waveform is displayed based on sampling data and adjust the resistance value and time range automatically.
4. △ type transformer can display three phases synchronism.
5. Can test with winding or without winding.
6. With four-ends wring way, measure the resistance precisely, no need lead-wire compensation.
7. Can test continuously, saving the time of transformer outage.
8. Can generate Word report, convenient to save and search the data.
9. It is controlled by microcomputer, matching 800×480 color LCD touch screen, fast printer, and supporting mouse. Easy to operate.
10. Can save 1000 groups data inside and connect with USB to save as well.
2. With humanized data analyzing, it can find the fault in waveform automatically and make remarks.
3. Waveform is displayed based on sampling data and adjust the resistance value and time range automatically.
4. △ type transformer can display three phases synchronism.
5. Can test with winding or without winding.
6. With four-ends wring way, measure the resistance precisely, no need lead-wire compensation.
7. Can test continuously, saving the time of transformer outage.
8. Can generate Word report, convenient to save and search the data.
9. It is controlled by microcomputer, matching 800×480 color LCD touch screen, fast printer, and supporting mouse. Easy to operate.
10. Can save 1000 groups data inside and connect with USB to save as well.
Technology Parameters
|
Three-phase constant current source charging, charging current
|
3A/1Agear；0.6A/0.2A gear
|
|
Max voltage at end
|
24V
|
|
Transition resistance Max range
|
100Ω
|
|
Transition resistance measurement range
|
1A gear：0.4Ω～20Ω
|
|
|
0.2Agear：10Ω～100Ω
|
|
Waveform recording time length
|
300ms
|
|
Sample rate
|
30k
|
|
Time resolution
|
0.1ms
|
|
Resistance resolution
|
0.1Ω
|
|
Accuracy
|
Transition resistance：±5% reading ±0.1Ω
|
|
|
Transition time：±0.5%reading ±0.2mS
|
|
Temperature
|
-10～40℃
|
|
Relative humidity
|
<85%RH
|
Accessory
|
Serial Number
|
Name
|
Amount
|
Serial Number
|
Name
|
Amount
|
|
1
|
Mainframe
|
one
|
8
|
Pen
|
one
|
|
2
|
210m Test line with clip (red, yellow, green, black)
|
four
|
9
|
Printing paper
|
two
|
|
3
|
31m Short stub with crocodile clip (red, yellow, green, black)
|
four
|
10
|
Fuse
|
three
|
|
4
|
Power line
|
one
|
11
|
Specification
|
one
|
|
5
|
Mouse
|
one
|
12
|
Inspection Report
|
one
|
|
6
|
Mouse pad
|
one
|
13
|
Certification
|
one
|
|
7
|
USB Flash disk
|
one
|
|
|
|
Products Show
Our Company
Production
office
Warehouse
R&D team
Meeting room
show room
Production Line
We are professional manufacturer in China, have own production line and R&D team, providing best price and quality.
Filed Test&Service
Packing & Delivery
Our Certifications
FAQ
1. How can I choose the suitable one?
Dear customer, please tell us your detailed requirements by mail or online, we will recommend the suitable one as your request.
2.What is the mini order quantity?
MOQ: generally 1 unit/piece/set
3. How can I pay?
Dear customer, we accept many payment term, such as T/T, Western Union...
4.Is will be broken during transport?
Dear customer, please do not worry, we do standard export package.
5.What should I do if I do not know how to use?
Dear customer, please do not worry, manual user will be sent together, you can also contact us with more technological support.
