- Product Details
- {{item.text}}
Quick Details
-
Frequency:
-
125KHz ID Reader
-
Communication:
-
Wiegand 26 standard
-
Optional:
-
Wiegand34bits/ RS232/RS485
-
Dimensions:
-
260*260*35mm
-
Reading Distance:
-
70-100M
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
No brand
-
Model Number:
-
Xpo-180
-
Frequency:
-
125KHz ID Reader
-
Communication:
-
Wiegand 26 standard
-
Optional:
-
Wiegand34bits/ RS232/RS485
-
Dimensions:
-
260*260*35mm
-
Reading Distance:
-
70-100M

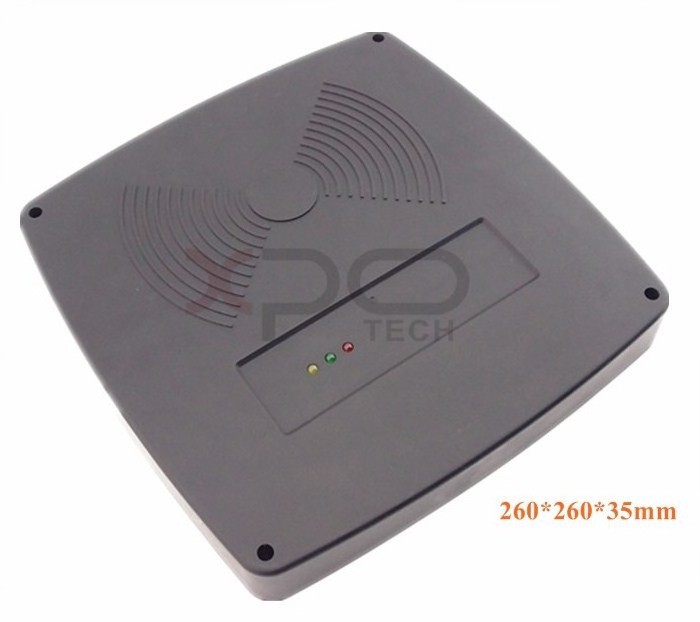

Access Control Long Range Rfid Reader
Technical Parameters:
|
Access Control Long Range Rfid Reader |
|
|
Xpo-180 |
Xpo-181 |
|
260*260*35mm |
230*230*35mm |
|
125KHz |
|
|
Reading distance: 70-100cm |
|
|
Big Buzzer: Ringing can be listen outside |
|
|
Two LED: Power supply and reading condition |
|
|
Various of output modes: WG26/WG34/WG42/RS232/ABA |
|
|
Special digital singal technology: automatic remote, adaptive to environment and anti-jamming function |
|
|
Special anti-jamming software sytem: anti-jamming distance between two card readers is 1.5m. |
|
|
Voltage: 12V DC, Current: ≤100mA |
|
|
Working Temperature: -10-70 C° |
|
|
Weight: 1.5kg |
|
|
Suitable for: Long distance access control system, attendance system, meeting signing in, automatic personnel tracking, OUT/IN management of parking, check of production line, logistics, animal identificaiton management, etc |
|
Benefits:
- When the card approach the reader, the red light turn into green, after glinting to turn redcolor again, the buzzer sound shows transiting data. It has 500ms proximity time distance for card proximity. After finishing card proximity, if the same ID card is still in the proximity range, reader will not send out the data, neither giving any sound hint. But for Different ID card entering Proximity Area, Reader can do response continually and send out the data.
Notice:
- Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply.
- When external Power is used, make sure sharing the power with Controller Box or using the same GND.
- When the distance between card reader and controller is more than 50m, please use Power Line with at least 1.5 square cm Dia, or using several parallel Network wires.
Other Access Control Card Readers
Payment:
- If the total payment is less than 500USD, we usually accept Paypal or Western Union;
- For big amount we accept bank transfer.
Shipment:
- Normally we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 working days depending on the country delivered to.
Warranty:
- Warranty for one year, maintenance forever,change within 3 months be cause of product quality.
