Quick Details
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CNDingtek
-
Principle:
-
Ultrasonic
-
Detection Range:
-
4m
-
Protection Level:
-
IP68
-
Power:
-
8500mah Non-recharged Lithium battery
-
Material:
-
ABS
-
Certificate:
-
CE
-
MOQ:
-
1unit
-
Warranty:
-
1 year
-
Wireless:
-
NB-IoT LoRaWAN Sigfox GPRS 4G
-
Dimension:
-
115*115*40mm
Quick Details
-
Mounting Type:
-
Bracket Mounting
-
Description:
-
Ultrasonic Sensor
-
Model Number:
-
DF703
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CNDingtek
-
Principle:
-
Ultrasonic
-
Detection Range:
-
4m
-
Protection Level:
-
IP68
-
Power:
-
8500mah Non-recharged Lithium battery
-
Material:
-
ABS
-
Certificate:
-
CE
-
MOQ:
-
1unit
-
Warranty:
-
1 year
-
Wireless:
-
NB-IoT LoRaWAN Sigfox GPRS 4G
-
Dimension:
-
115*115*40mm
Product Description

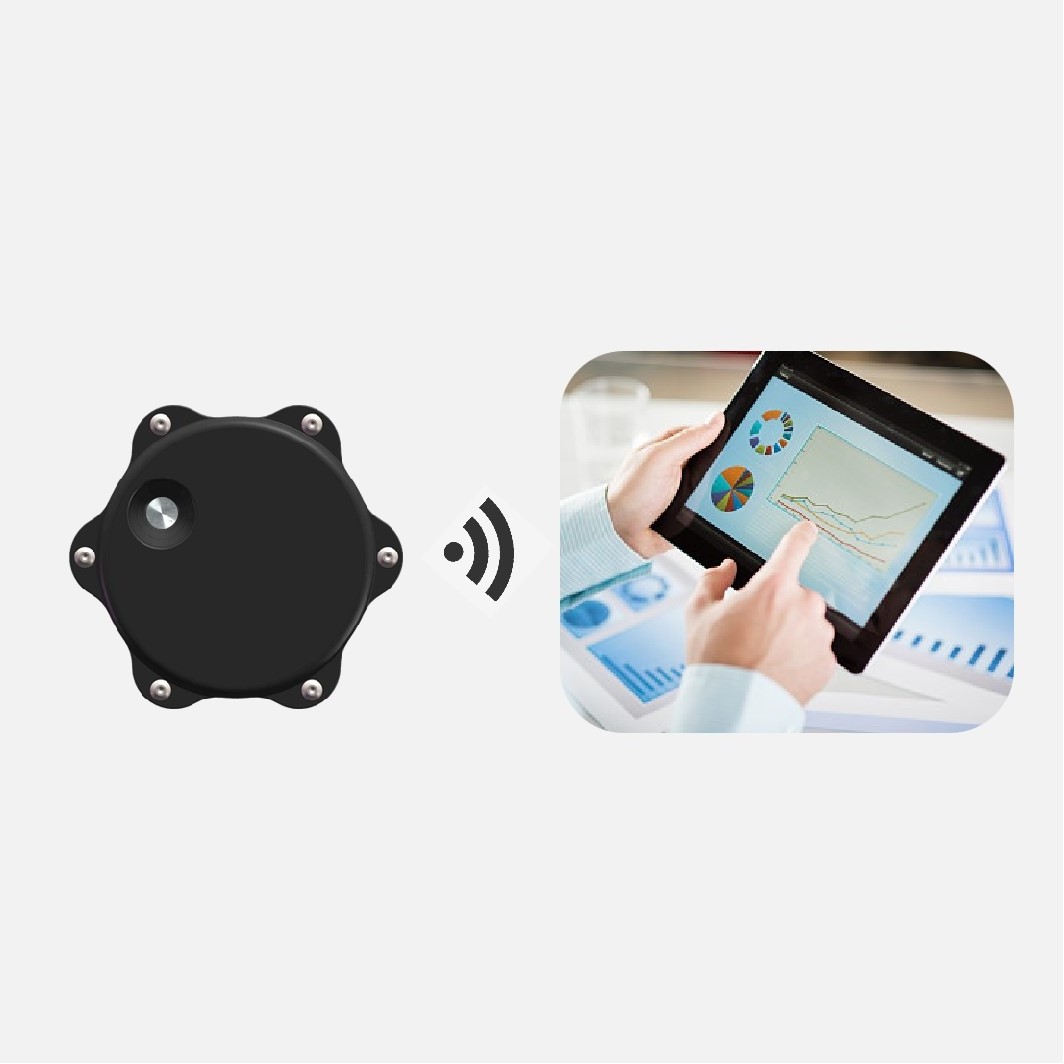

Smart Bin Level Sensor.
DF703 sensor is designed for waste bin status detection. It can detect the following status:
- Full
- Flame risk
- Inclined or not
Through the NB-IoT/Lorawan/Sigfox/GPRS/4G module， it transmit the status to base station or gateway, then via internet network to network server or application server. Finally user can monitor the status remotely.
GPS module can be added. Note: GPS can work well only when the sensor is used outdoor and not covered by metal.
As it is with algorithm of low power consumption, the internal battery can work for more than 8 years (at 4 hours interval upload interval).
Specification
|
Overview
|
Dimension
|
115*115*40mm
|
|
|
Net Weight
|
150g
|
|
|
Color
|
Black
|
|
|
Material
|
ABS
|
|
Detector
|
Principle
|
Ultrasonic
|
|
|
Detection Range
|
400cm
|
|
|
Blind area
|
0-15cm
|
|
|
Accuracy of height
|
3cm
|
|
|
Accuracy of temperature
|
2℃
|
|
|
Accuracy of angel
|
2°
|
|
Wireless
|
Communication
|
NB-IoT/Cat-M/LoRaWAN/Sigfox/GPRS/4G
|
|
Battery
|
Inner Battery
|
Non-recharged Lithium Battery 8500mAh @ 3.6V
|
|
|
Battery Life
|
More than 8 years
|
|
Environment
|
Operating Temperature
|
-20 ~ +70℃
|
|
|
Storage Temperature
|
-40 ~ +85℃
|
|
|
Protection Level
|
IP68
|
Network
Platform
Application Case
FAQ
Q: Can the sensor be integrated to clients' platform?
A: Yes, we will provide protocol or API, our engineer will also provide technical support.
Q:
Can the sensor add GPS function?
A:
Yes, but it will increase the consumption. GPS can work well when used outdoor and not covered by metal.
Q: Can I get discount for large quantity order?
A: Yes, please cotact our sales manager when the quantity is more than 100 pieces.
Q: Is ODM and OEM available?
A: Yes
