Quick Details
-
Application:
-
Other
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
MCLPANEL
-
Model Number:
-
PC hollow sheet
-
Type:
-
twin wall R structure
-
Product name:
-

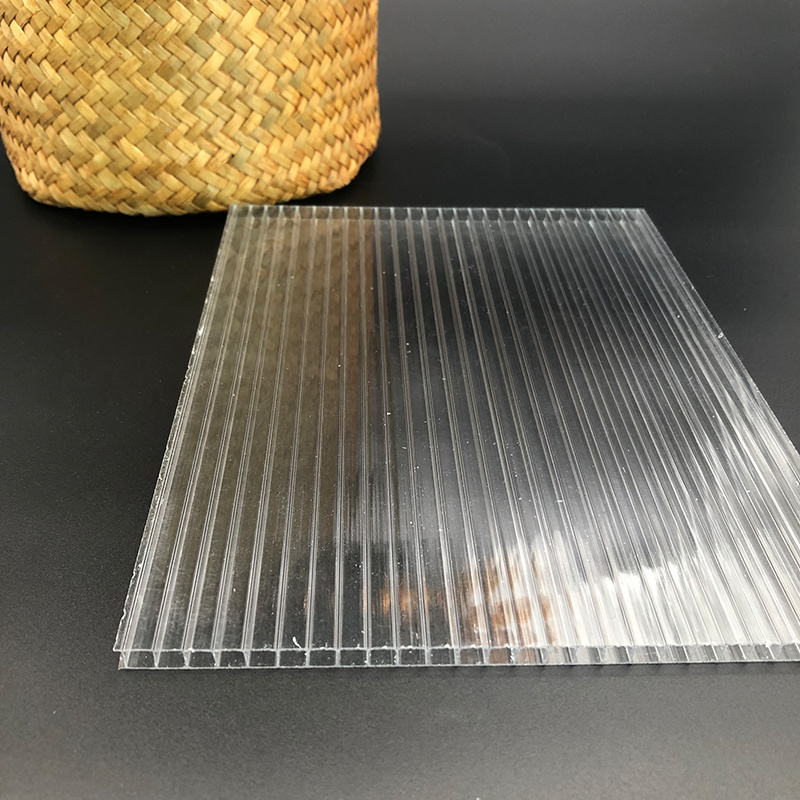

Hollow Polycarbonate Sheet
-
Material:
-
100% Virgin Polycarbonate
-
Thickness:
-
4 mm-12 mm
-
Color:
-
Clear Blue Green Opal Brown
-
Width:
-
Max 2100mm
-
Length:
-
5800mm/6000mm/11800mm/12000mm
-
Structure:
-
2-Wall/3-Wall/4-Wall/Honeycomb/U Lock
-
Coating:
-
UV Protection Coating
-
Certification:
-
ISO9001:2008
Quick Details
-
Warranty:
-
More than 5 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
-
Application:
-
Other
-
Design Style:
-
Contemporary
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
MCLPANEL
-
Model Number:
-
PC hollow sheet
-
Type:
-
twin wall R structure
-
Product name:
-
Hollow Polycarbonate Sheet
-
Material:
-
100% Virgin Polycarbonate
-
Thickness:
-
4 mm-12 mm
-
Color:
-
Clear Blue Green Opal Brown
-
Width:
-
Max 2100mm
-
Length:
-
5800mm/6000mm/11800mm/12000mm
-
Structure:
-
2-Wall/3-Wall/4-Wall/Honeycomb/U Lock
-
Coating:
-
UV Protection Coating
-
Certification:
-
ISO9001:2008
Shanghai MCLPANEL Plastic Technology Co., Ltd. is a manufacturer focused on the PC industry for nearly 15 years. Our products include PC sheet (PC hollow sheet, PC solid sheet, u-lock pc sheet, PC plug-pattern sheet, PC corrugated sheet), PC sheet processing (Engraving, folding Bending, punching, cutting), PC products (PC bubble house, PC awning, PC domn, PC kayak, PC chiar mat, etc.)
| Product PARAMETERS | |||
| Name | PC Hollow Sheet | Material | 100% Virgin polycartonate material |
| Thickness | 4mm -40mm | Width | 2.1m , 1.22m or customized |
| Length: | 5.8m/11.8m/Customized | Color | Clear/Green/Brown/Blue/Milky.ect |
| Retardant | Grade B1 (GB Standard) | Stype | R-structure, H-structure, M-structure |
| Certification | ISO9001 & ISO 14001 | Surface | With 50 micron UV protection |
| Packaging: | Both sides with PE film, logo on the PE film. Customized package is available too. | ||
| Delivery | Within 7-10 working days once we received the deposit. | ||
| Technical Parameters | ||||||
| Impact strength | Transparency | Specific grevity | Coefficient of thermal expansion | Service temperature | Heat conductivity | |
| 2.1j/m-2.3j/m | 40%-80% | 1.2g/cm³ | 0.065mm/m°C | -40°C—120°C | 3.0-3.9w/m²°C | |
| Tensile strength | Flexural strength | Modulus of elasticity | Effect of sound insulation | Tensile stress at break | Elongation at break | |
| ≥60N/mm | 100N/mm² | 2400Mpa | 10mm two laminates reduced 10db | ≥65Mpa | >100% | |
| The number of containers that can be loaded | ||||
| capacity for 20 GP | 2.1m*5.8m*6mm | 400 sheet | ||
| 2.1m*5.8m*8mm | 300 sheet | |||
| 2.1m*5.8m*10mm | 240 sheet | |||
| capacity for 40 GP | 2.1m*5.8m*6mm | 800 sheet | 2.1m*11.8m*6mm | 400 sheet |
| 2.1m*5.8m*8mm | 600 sheet | 2.1m*11.8m*8mm | 300 sheet | |
| 2.1m*5.8m*10mm | 480 sheet | 2.1m*11.8m*10mm | 240 sheet | |
What's the order process?
a. Inquiry---provide us all clear requirements.
b. Quotation---official quotation form with all clear specifications.
c. Customization--- We offers ultimate customization and personalized solutions.
d. Sample ---Standard sample of our factory.
e. Payment terms--- T/T 30% in advanced, balanced before shipment.
f. Production---mass production
g. Shipping--- by sea, air or courier. Detailed picture of package will be provided.
1. Using exquisite craftsmanship and strict inspection standards, make the tinting of polycarbonate sheet more uniform.
2. The normal thickness of anti-UV layer is 50 micron. If for special projects, we can do 80 micron, or even thicker.
3. For polycarbonate solid sheet, the thickest we can do 20mm at present. Can meet your requirement for different situations.
4. To prevent pc sheets fade easily and extend service life, we use color master-batch instead of toner.
5. For raw material, we all use 100% virgin polycarbonate material. This helps us produce very high quality pc sheet without defects, and helps us gain good reputation among customers.
|
1) Unusual decorations, corridors and pavilions in gardens and recreational and rest places; |
|
2) Interior and exterior decorations of commercial buildings, and curtain walls of the modern urban buildings; |
|
3) The transparent containers, front wind shields of motorcycles, airplanes, trains, ships, vehicles, motor boats, sub marines; |
|
4) Telephone booths, street name plates and sign boards; |
|
5) Instrument and war industries - windscreens, army shields |
|
6) Walls, roofs, windows, screens and other high quality indoor decoration materials; |
|
7) Sound insulation shields on express ways and city hour highways; |
| 8) Agriculture greenhouses and sheds; |
