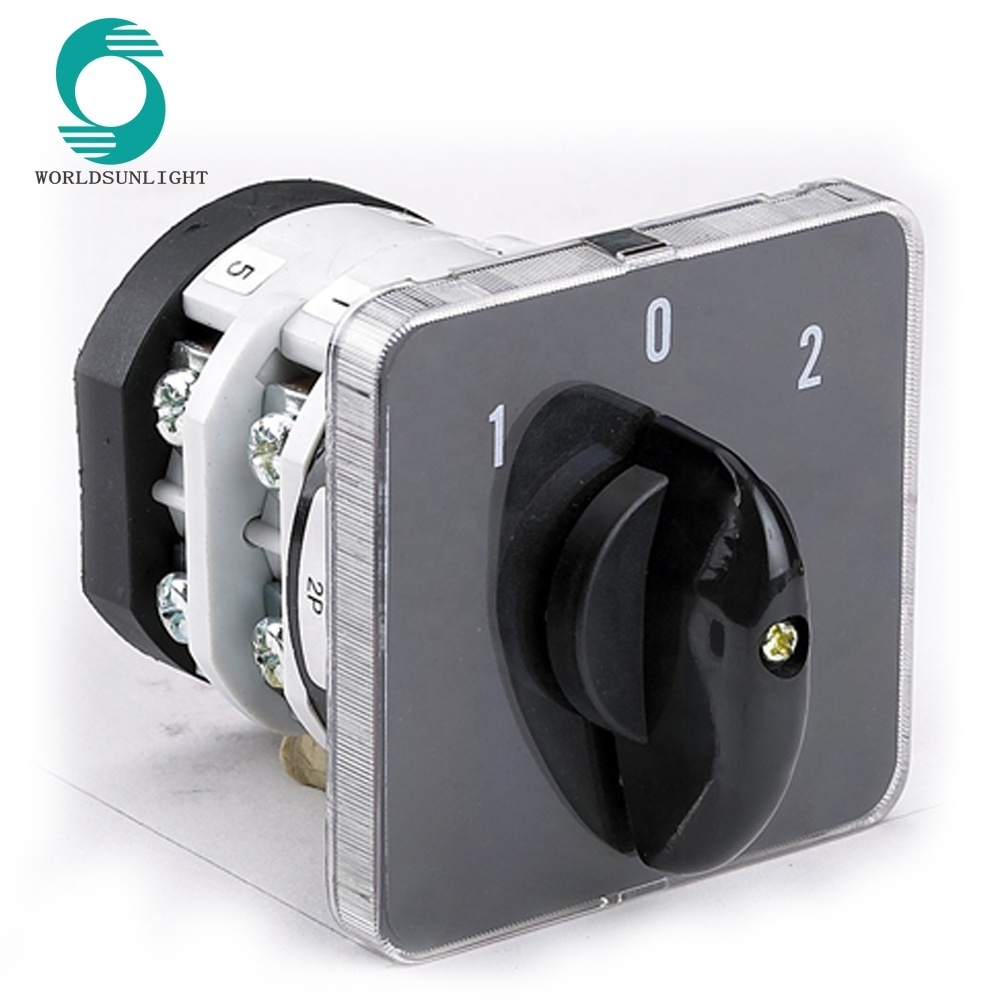

CE approval 3 phase motor LW31-32 32A rotary cam switch
1. CE approval 3 phase motor LW31-32 32A rotary cam switch application :
|
LW31 series rotary switches applied to switchgear and control of electric mkotors as well as to change over of electric circuits,it's a good substitution for other cam switches.
LW31 series rotary switches have six current ratings:
20A, 25A, 32A, 50A, 75A
|
2. CE approval 3 phase motor LW31-32 32A rotary cam switch features :
1)Rated current:
32A
2)R handel
3)function:control switch of motor,change over switch of circuit
4)LW31 series rotary switches have five current rating: 20A, 25A, 32A, 50A, 75A
5)It's a good substitution for other cam switches.
Diagram for the type of handle:
|
Introdution for the type and meaning of products:
|
3. CE approval 3 phase motor LW31-32 32A rotary cam switch technical parameter :
|
Description
|
LW31-20
|
LW31-25
|
LW31-32
|
LW31-50
|
LW31-75
|
|||||||||||||||||||
| Rated thermal currentITH |
A
|
20
|
25
|
32
|
50
|
75
|
||||||||||||||||||
| Rated working voltageUe |
V
|
110 | 220 |
440
|
110 | 220 | 440 | 500 |
690
|
110 | 220 | 440 | 500 |
690
|
110 | 220 | 440 | 500 |
690
|
110 | 220 | 440 | 500 |
690
|
| Rated working currentLe | ||||||||||||||||||||||||
| AC-21A |
A
|
20
|
25
|
32
|
50
|
70
|
||||||||||||||||||
| AC-22A |
A
|
16
|
20
|
32
|
40
|
63
|
||||||||||||||||||
| DC-20 |
A
|
20
|
25 | 32 | 50 | 75 | ||||||||||||||||||
| power |
P
|
|||||||||||||||||||||||
| AC-23A |
KW
|
5 |
7.5
|
7.5 | 11 |
15
|
11 | 18.5 |
22
|
15 | 22 |
30
|
18.5 | 30 |
37
|
|||||||||
| AC-3 |
KW
|
4 |
5.5
|
5.5 | 7.5 |
11
|
7.5 | 15 |
18.5
|
11 | 18.5 |
22
|
15 | 22 |
30
|
|||||||||
| AC-4 |
KW
|
2.2 |
3
|
2.2 | 4 | 4 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 9 | 7.5 | 11 | 15 | |||||||||
| DC-23 |
KW
|
0.77 | 1.2 |
|
2 | 2.2 | 2 | 2.2 | 3 | 6 | 4 | 8 | ||||||||||||
Selection of contact diagrams:
|
4. CE approval 3 phase motor LW31-32 32A rotary cam switch dimension and installation :
|
|
Description
|
Dimensions(mm)
|
Installation(mm)
|
||||||||||
| A | C | H | L | E | D1 | D2 | S | F | G | D3 | T | |
|
LW31-20
|
54 | Φ44 | 38 |
25+12n
|
32 | Φ9.5 | Φ3.2 | 1.5 | 35 | Φ45 | Φ4.5 |
6
|
|
LW31-20
|
72 | Φ44 | 38 |
25+12n
|
32 | Φ9.5 | Φ3.2 | 1.5 | 58 | Φ45 | Φ4.5 |
6
|
|
LW31-25
|
72 | Φ59 | 36 |
25+13n
|
33 | Φ9.5 | Φ3.2 | 1.5 | 58 | Φ64 | Φ4.5 |
6
|
|
LW31-25
|
105 | Φ59 | 53 |
23+13n
|
33 | Φ9.5 | Φ3.2 | 1.5 | 85 | Φ64 | Φ4.5 |
6
|
|
LW31-32
|
72 | Φ59 | 36 |
23+18n
|
33 | Φ9.5 | Φ3.2 | 1.5 | 58 | Φ64 | Φ4.5 |
6
|
|
LW31-32
|
105 | Φ59 | 53 |
23+18n
|
33 | Φ9.5 | Φ3.2 | 1.5 | 85 | Φ64 | Φ4.5 |
6
|
|
LW31-50
|
105 | Φ80 | 53 |
34+18n
|
46 | Φ13 | Φ5.3 | 3 | 85 | Φ90 | Φ5.5 |
8
|
|
LW31-75
|
105 | Φ80 | 53 |
34+27n
|
46 | Φ13 | Φ5.3 | 3 | 85 | Φ90 | Φ5.5 |
8
|
5. CE approval 3 phase motor LW31-32 32A rotary cam switch pictures :
6. CE approval 3 phase motor LW31-32 32A rotary cam switch packaging :
Packaging Details:
Standard export packaging, also can do as customers' order
Delivery Detail: 3-15 days(depend on your order quantity)
