Quick Details
-
Product name:
-

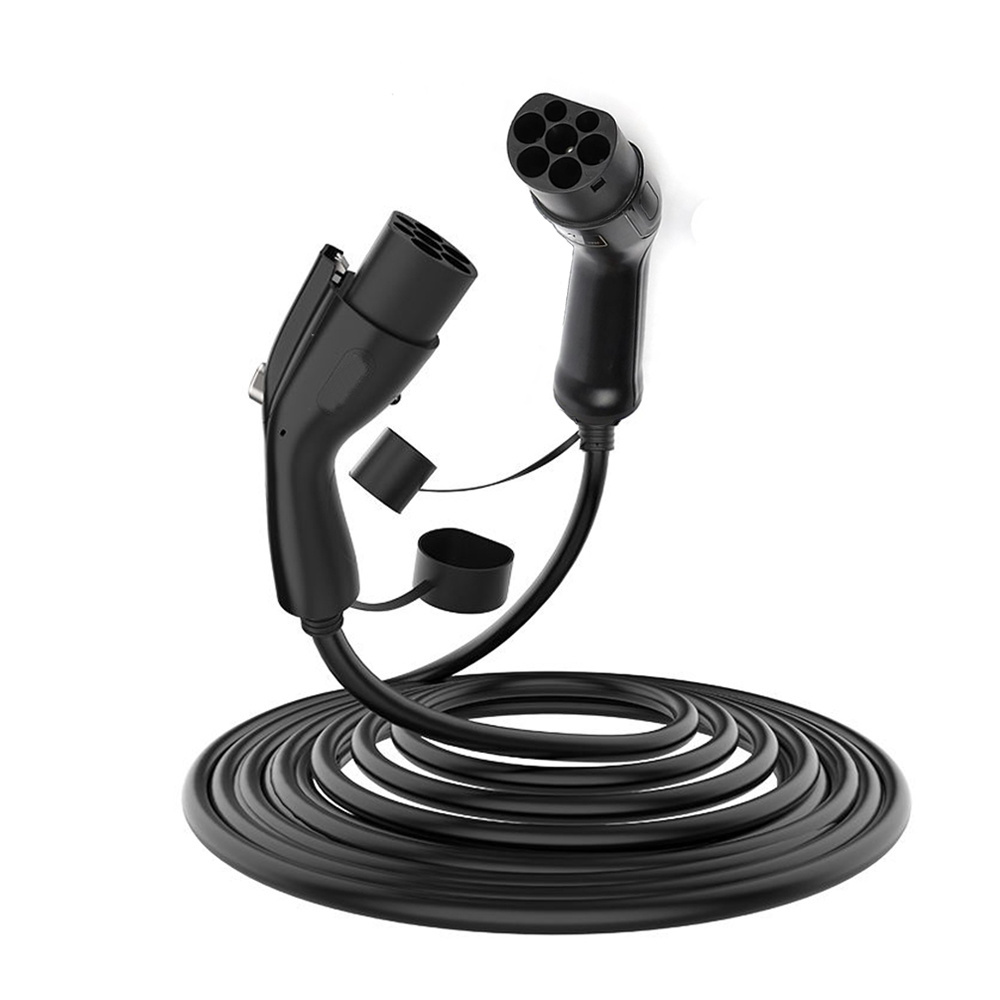

Type 2 To GBT adapter
-
Rated voltage:
-
380V
-
Rated Current:
-
32A
-
Fire retardant level:
-
94V-0
-
Certificate:
-
CE
-
Waterproof rate:
-
IP54
-
Weight:
-
4.5kg
-
Operating temperature:
-
-35℃ to 50℃
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
OWP-ETG-916A
-
Brand Name:
-
OWP
-
Product name:
-
Type 2 To GBT adapter
-
Rated voltage:
-
380V
-
Rated Current:
-
32A
-
Fire retardant level:
-
94V-0
-
Certificate:
-
CE
-
Waterproof rate:
-
IP54
-
Weight:
-
4.5kg
-
Operating temperature:
-
-35℃ to 50℃
Products Description
|
ITEM
|
Type 2 Male EV Pulg
|
GB/T Male EV Pulg
|
|
Standard
|
IEC 62196-2
|
GBT20234-2015
|
|
Rated Current
|
16A , 32A (single / three phase)
|
16A , 32A (single / three phase)
|
|
Operation Voltage
|
AC 250/AC 480V
|
AC 250/AC 480V
|
|
Insulation Resistance
|
>1000MΩ （DC 500V)
|
>1000MΩ （DC 500V)
|
|
Withstand Voltage
|
2000v
|
2000v
|
|
Contact Resistance
|
0.5mΩ Max
|
0.5mΩ Max
|
|
Terminal Temperature Rise
|
<50K
|
<50K
|
|
Operating Temperature
|
-30℃- +50℃
|
-30℃- +50℃
|
|
Coupled Insertion Force
|
>45N <80N
|
>45N <80N
|
|
Impact Insertion Force
|
>300N
|
>300N
|
|
Waterproof Degree
|
IP55
|
IP55
|
|
Flame Retardant Grade
|
UL94 V-0
|
UL94 V-0
|
|
Certification
|
TUV/CE/UKCA
|
CQC
|
