Quick Details
-
Keypad Button Material:
-
polyester, polycarbonate
-
Cross Reference:
-
1
-
Color:
-
Pantone,RAL
-
Certification:
-
ISO9001:2008
-
Material:
-
PE PC
-
Rear adhesive:
-
3M468MP Adhesive
-
Adhesive:
-
3M467/468
-
Printing:
-
Screen Printing
-
Size:
-
Customized Size
-
grapchi overlay:
-
PET/PC/OEM graphic overlay
-
Product name:
-
lexan polycarbonate graphic overlay membrane switch labels sticker
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
FLEXKYS
-
Model Number:
-
Custom
-
Keypad Button Material:
-
polyester, polycarbonate
-
Cross Reference:
-
1
-
Color:
-
Pantone,RAL
-
Certification:
-
ISO9001:2008
-
Material:
-
PE PC
-
Rear adhesive:
-
3M468MP Adhesive
-
Adhesive:
-
3M467/468
-
Printing:
-
Screen Printing
-
Size:
-
Customized Size
-
grapchi overlay:
-
PET/PC/OEM graphic overlay
-
Product name:
-
lexan polycarbonate graphic overlay membrane switch labels sticker

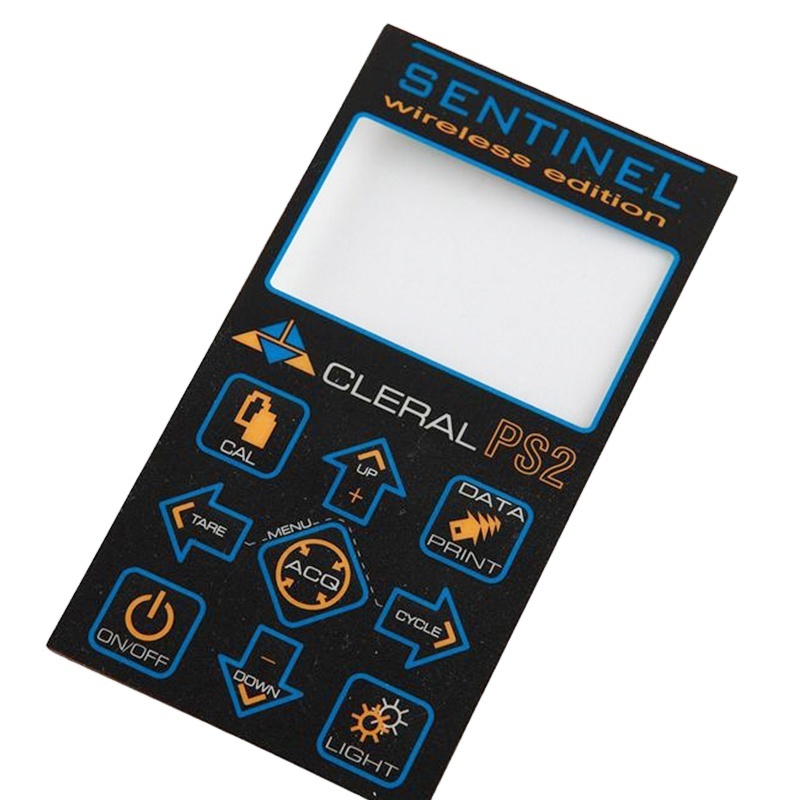

Custom lexan polycarbonate graphic overlay membrane switch labels sticker
Feature
| Part | Ordinary Material | ||
| Graphic Overlay | Finish | Specification | |
| PC | Gloss | 0.175/.25/.35/.5 mm thickness | |
| Matt | 0.175/.25/.35/.5 mm thickness | ||
| PET | Fine Texture | 0.15/.20 mm thickness | |
| Valet Texture | 0.15/.20 mm thickness | ||
| Gloss with Hard Coat | 0.18 mm thickness | ||
| Rear Adhesive | Paper Double-sided Tape | 0.10 mm thickness | |
Product Description
QC Standard
| Overlay Printing | Spelling mistake | Not allowed |
| Incorrect Font | Not allowed | |
| Dimension error | >0.2mm is Not allowed | |
| Color | Less than 2 levels with the specified Pantone color | |
| Dot impurities |
Diameter less than 0.2mm Distance between two impurities is more than 50mm The number of impurities is less than 2 within 100cm |
|
| Linear impurities | Width is less than 0.2mm,length is less 0.4mm in panel surface.Distance between two impurities is more than 50mm | |
| Window impurities | Diameter is less than 0.2mm in the center of the window |
