Quick Details
-
Brand Name:
-
guofeng
-
Product name:
-

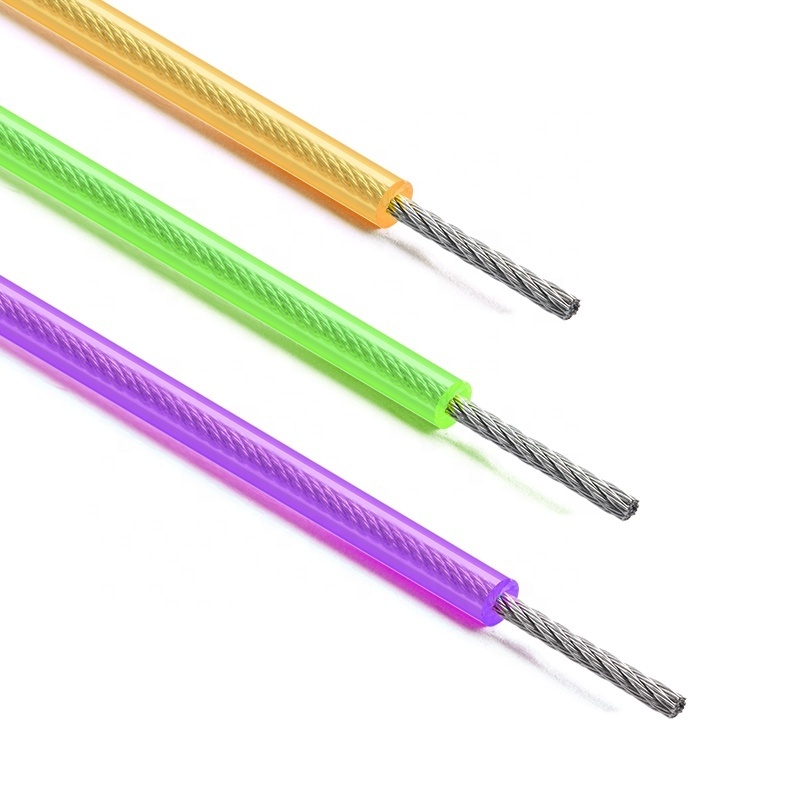

High Quality Coated Green Metal Steel Cable & Wire Rope
-
diameter:
-
0.6mm-12mm
-
color:
-
clear /red/green or other
-
length:
-
500mm-3m or as requirement
-
construction of steel:
-
7*7, 7*19, 1*19, etc
-
material of coating:
-
PVC, PE, PU, nylon,etc
-
Advantage:
-
Customized Services
-
breaking load:
-
industrial standard, or as your requirement
-
application:
-
industrial, outdoor gardens and indoors, etc
-
sample:
-
support
Quick Details
-
Tolerance:
-
±1%
-
Grade:
-
stainless steel+vinyl coated
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
guofeng
-
Product name:
-
High Quality Coated Green Metal Steel Cable & Wire Rope
-
diameter:
-
0.6mm-12mm
-
color:
-
clear /red/green or other
-
length:
-
500mm-3m or as requirement
-
construction of steel:
-
7*7, 7*19, 1*19, etc
-
material of coating:
-
PVC, PE, PU, nylon,etc
-
Advantage:
-
Customized Services
-
breaking load:
-
industrial standard, or as your requirement
-
application:
-
industrial, outdoor gardens and indoors, etc
-
sample:
-
support
Rust-proof Decoration Industry wire rope with pvc coated Cable Plastic Coating Stainless 316 Cable
|
1.Diameter |
0.6-12mm |
Custom-made available |
|
2.construction |
7X7,7X19,etc |
|
|
3.material |
stainless steel or galvanized |
|
|
4.MOQ |
500pcs |
|
| 5.length | 1.5m-5m | |
| 6.place of origin | china | |
|
7.coating
|
as requirement |
|
|
8.end parts of fittings |
|
|
|
9.Lead time |
7days if there were enough material in stock |
|
|
10.sample |
Free sample available if all of dimensions same as our existing one ,if not ,contact me ,to get a cost efficient solution. |
|
|
advantage |
|
|
|
specification |
Refer to the drawing as below: All of specification custom-made available. the tighter tolerance ,the higher the cost of the cost.
|
|
Durable stainless steel cable: 1 / 32 inch steel cable is made of high-quality structural core. Durable, high strength, good weather resistance, suitable for a variety of operations.
Aluminum slide bar: with aluminum crimp ring sleeve, suitable for 1 / 32 inch diameter wire rope cable.
Strength and flexibility: steel cables have high tensile strength, providing a combination of strength and flexibility. Stainless steel cables are stronger and can withstand greater weight.
Widely used: hanging indoor or outdoor string lamp, fastening device, garage door, clothes line, wind bell, shed frame, bird feeder, hanging art, curtain, garden line, etc.
Easy to store: equipped with wired shaft, easy to store and avoid confusion of steel wire rope
how to choose material: 1stain 1.1.1.
1.stainless steel :
providing good corrosion resistance and strength comparable to galvanized carbon steel grades.
2.galvanized steel:
Zinc coated carbon steel offers some corrosion resistance. It remains ductile over long periods of working. Usually higher break strengths than stainless steels.
|
Diameter |
construction |
weight(100m) |
Minimum Breaking load(N) |
|
1.0mm |
1*19 |
0.495 |
950(95kg) |
|
|
7*7 |
0.393 |
650 (65kg) |
|
1.2mm |
1*19 |
0.713 |
1440(144kg) |
|
|
7*7 |
0.566 |
950(95kg) |
|
1.5mm |
1*19 |
1.114 |
2200(220kg) |
|
|
7*7 |
0.884 |
1500(150kg) |
|
1.8mm |
1*19 |
1.604 |
3200(320kg) |
|
|
7*7 |
1.273 |
2100(210kg) |
|
2.0mm |
1*19 |
1.98 |
3900(390kg) |
|
|
7*7 |
1.527 |
2650(265kg) |
|
2.4mm |
1*19 |
2.851 |
5650(565kg) |
|
|
7*7 |
2.264 |
3800(380)kg |
|
2.5mm |
1*19 |
3.094 |
6100(610kg) |
|
|
7*7 |
2.381 |
4100(410kg) |
|
3.2mm |
7*7 |
4.024 |
6850(685kg) |
|
|
7*19 |
3.901 |
6800(680kg) |
|
3.8mm |
7*19 |
5.675 |
9650(965kg) |
|
|
7*7 |
5.502 |
9600(960kg) |
|
4.0mm |
7*19 |
6.609 |
12500(1250kg) |
|
4.2mm |
7*7 |
6.933 |
13000(1300kg) |
|
4.5mm |
7*7 |
7.958 |
13500(1350kg) |
|
4.8mm |
7*19 |
8.778 |
15300(1530kg) |
|
6.0mm |
7*19 |
8.716 |
23900(2390kg) |
