Quick Details
-
Working Mode:
-
NC/NC; Power on to lock/Power off to lock
-
Material:
-
Stainless Steel
-
Lock Size:
-
124Lx43Wx32H(mm)
-
Suitable for:
-
wooden door, metal door, PVC door
-
LOGO Printing:
-
Yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
XPOTECH
-
Standard:
-
ANSI
-
Working Mode:
-
NC/NC; Power on to lock/Power off to lock
-
Material:
-
Stainless Steel
-
Lock Size:
-
124Lx43Wx32H(mm)
-
Suitable for:
-
wooden door, metal door, PVC door
-
LOGO Printing:
-
Yes

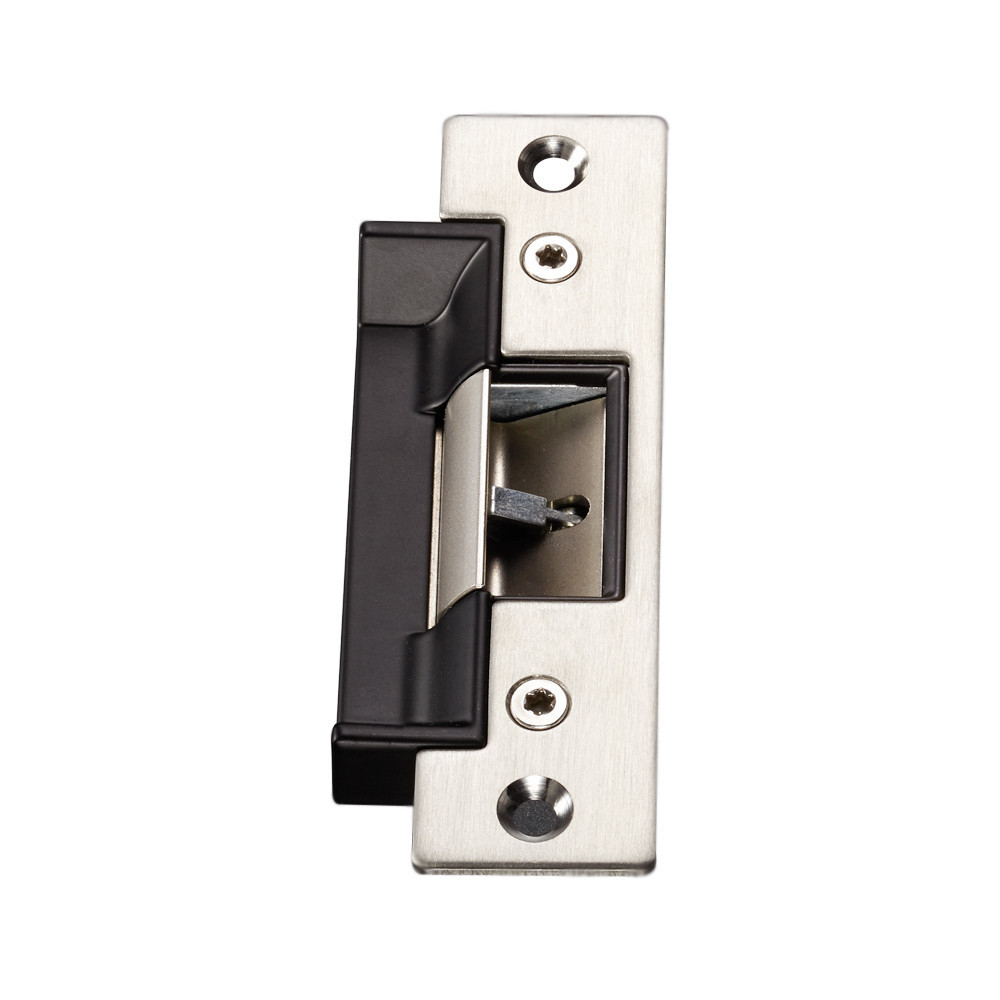

XPOTECH ANSI standard Heavy Duty Electric Strike Lock
The electric strike 124KS 2 wires is the same as 124KS 5 wires, except that the 124KS 5 wires has signal output. This lock is an ANSI standard Heavy Duty Electric Strike. This is suitable for many different doors. The operating principle of electric strike is that electromagnetism produces the force to pull or push the release lever so that to lock or open the door.
Our Electric Strike Lock Advantages
Holding 400kg
Special design,easy to adjust the distance of the Lock-tongue
Designed for Metal Frame drill a hole,then install it directly
Testing to 100000 cycles
High-Temperature Painted,Durable and Beautiful Artical
Product Specification
| Product Parameter | Parameter Description |
| Lock Size | 124Lx43Wx32H(mm) |
| Strike Structure | Stainless Steel |
| Holding Force | 400kg |
| Voltage | DC12V (Need Order DC24V) |
| Current | 240mA |
| Signal Output | Door Status Output NO/NC/COM |
| Feature | Fail Secure(124KS-NO); Fail Safe(124KS-NC) |
| Suitable For | Wooden Door,Metal Door,PVC Door |
| Surface Temperature | Within + 20℃ |
| Suitable Temperature | - 10~+55℃(14-131F) |
| Operating Humidity | 0~90%(non-condensing) |
| Face plate Housing | Painted Steel |
| Lock tongue | Surface by coating nickel |
| Function | Built-out MOV |
| Weight | 0.4kg |
2 Wirels no Feedback one
5 Wirels with Feedback one
