Quick Details
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
757*760*1005mm
-
Weight:
-
500kg
-
Cycle life:
-
>6000
-
Voltage:
-
614.4V
-
Nominal Capacity:
-
80Ah
-
warranty:
-
5 years
-
OEM/ODM:
-
yes
-
Apllication:
-
Commercial&industrial backup system
-
Cell type:
-
3.2v Lifepo4 Cell
-
Communication:
-
RS485/CAN
-
Material:
-
Steel
Quick Details
-
Battery Type:
-
LiFePO4
-
Model Number:
-
PC-600V80AH
-
Brand Name:
-
EVERBEST
-
Place of Origin:
-
Guangdong, China
-
Dimension (L*W*H):
-
757*760*1005mm
-
Weight:
-
500kg
-
Cycle life:
-
>6000
-
Voltage:
-
614.4V
-
Nominal Capacity:
-
80Ah
-
warranty:
-
5 years
-
OEM/ODM:
-
yes
-
Apllication:
-
Commercial&industrial backup system
-
Cell type:
-
3.2v Lifepo4 Cell
-
Communication:
-
RS485/CAN
-
Material:
-
Steel
Product Description
Specification
|

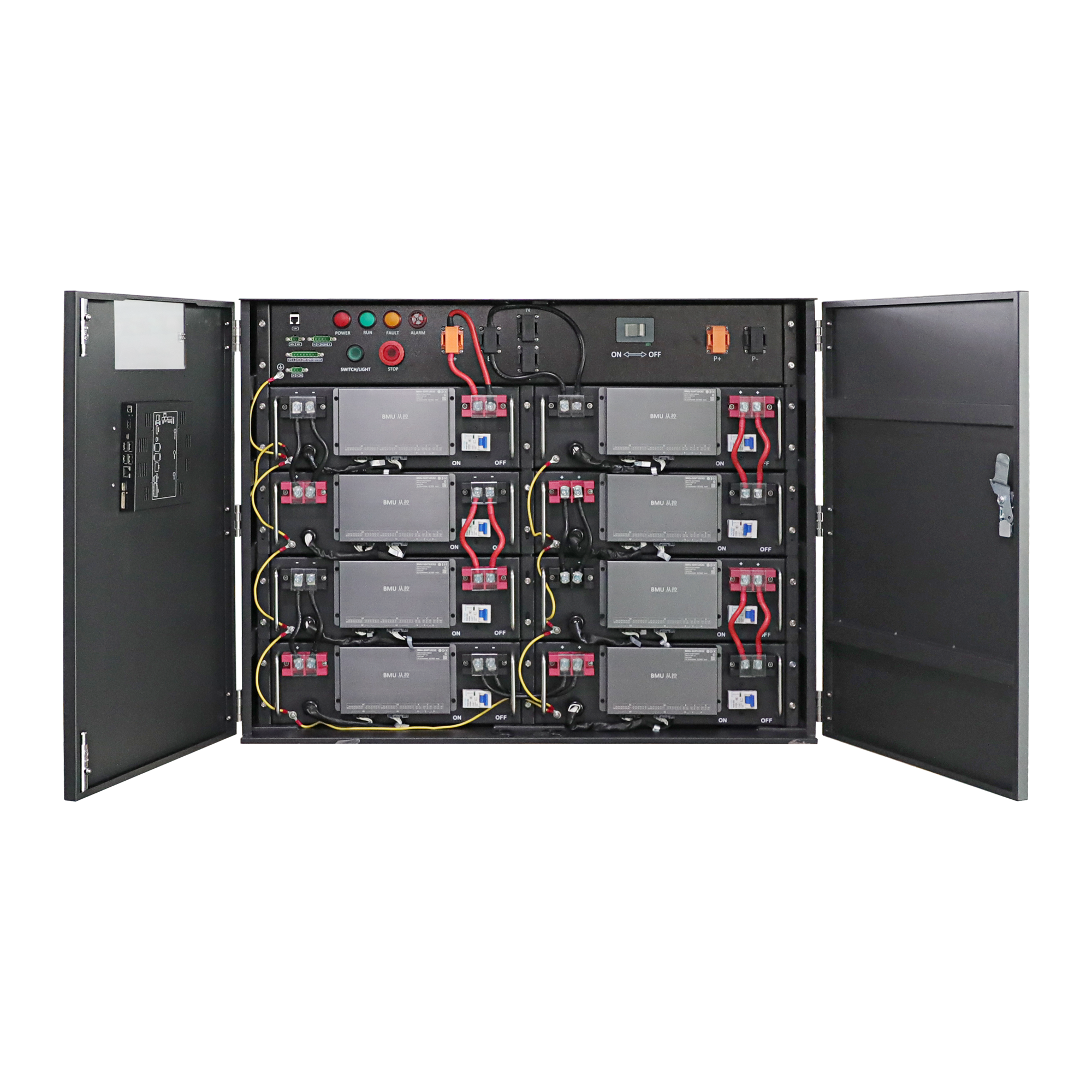

614.4V80Ah High Voltage System
|
|
|
||
|
General Data
|
Dimension(L*W*H)
|
757*760*1005mm
|
||
|
|
PCS Capacity
|
8
|
||
|
|
Weight
|
-
|
||
|
|
Communication Type
|
Dry Connection/ RS485/CAN
|
||
|
|
Operating Temperature Range
|
-20 to 60ºC(<0ºC No charging)
|
||
|
|
Relative Humidity
|
0~95%(non-condensing)
|
||
|
|
Noise emission
|
<75dB@1m
|
||
|
Battery Data
|
Cell Type
|
LiFePO4
|
||
|
|
Battery Capacity(BOL)
|
80Ah
|
||
|
|
Nominal Battery Voltage
|
614.4V
|
||
|
|
Battery Voltage Range
|
480~700.8V
|
||
|
|
Max.Charging Current
|
80A
|
||
|
|
Max.Discharging Current
|
160A
|
||
|
|
Cycle Life
|
≥6000(80%DOD)
|
||
|
|
Operating Temperature Range
|
-20 to 60ºC(<0ºC No charging)
|
||
