Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Superb Heater
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
Final Dimension
-
Core Components:
-
heater
-
After-sales Service Provided:
-
Overseas third-party support available
-
Sheath Material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Insulation material:
-
High-purity Mgo
-
Application:
-
3D Printer / Mold / Packing Machine / Glass Bending Machine
-
Denisty:
-
50 w/c㎡
-
Diameter:
-
2.8mm - 35mm
-
Length:
-
10mm - 10000mm
-
Product name:
-
12v heater element 5w
-
Certification:
-
ISO9001 ROHS CE
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
12-480v
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Superb Heater
-
Dimension(L*W*H):
-
Custom Size
-
Weight:
-
Final Dimension
-
Core Components:
-
heater
-
After-sales Service Provided:
-
Overseas third-party support available
-
Sheath Material:
-
Seamless SS304 / SS316/SS321 / Incoloy800
-
Insulation material:
-
High-purity Mgo
-
Application:
-
3D Printer / Mold / Packing Machine / Glass Bending Machine
-
Denisty:
-
50 w/c㎡
-
Diameter:
-
2.8mm - 35mm
-
Length:
-
10mm - 10000mm
-
Product name:
-
12v heater element 5w
-
Certification:
-
ISO9001 ROHS CE
Cartridge heater are cylindrical electrical heating element.Mostly used for heating up solids such as injection presses heating plates or various tools,they can also be used for heating up water of gases under certain conditions.Widely used for manufacturing plastic and rubber parts in the car industry or in the food processing industry,etc.They are also commonly found used in the chemical,electronics,medical equipment and packing industries etc.

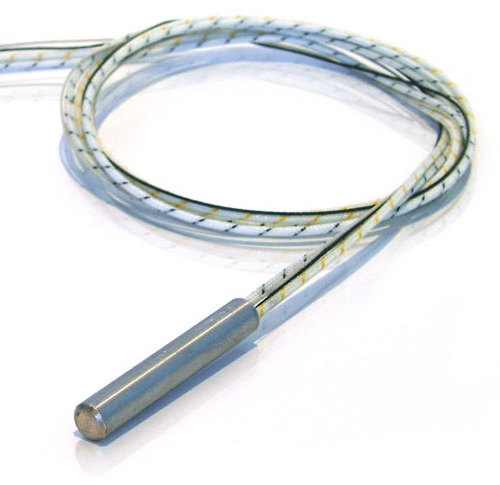

6.35mm (1/4") 220V 100W Cartridge Heater Heating Resistance Heater Element with Thermocouple
- Cartridge heater type as follows
Cartridge Heater Material Specification
- Tube Material: Seamless SS304, SS321, SS316L, SS310S, Incoloy 600/800/840 etc;
- MGO Rod: Imported from Japan Tateho, USA OTC;
- MGO Powder: Imported from UK UCM, Japan Tateho;
- Resistance Heating Wire: Sweden Kanthal, Germany BGH, NiCr8020;
- High Temperature Wire: Fiberglass wire, Pure Nickel Core wire, Telfon wire, Silicone wire;
- Terminal Pin: Nickel-manganese alloy, pure nickel wire.
Product Shows
Cartridge Heater Applications
- Injection moulding - Internal heating of nozzles
- Hot runner systems - Heating of manifolds
- Packaging industry - Heating of cutting bars
- Packaging industry - Heating of hot stamps
- Laboratories - Heating of analytical equipment
- Medical - Dialysis, Sterilization, Blood Analyzer, Blood/Fluid Warmer, Temperature Therapy
- Telecommunications - Deicing, Enclosure Heater
- Transportation - Oil/Block Heater, Aircraft, Coffee Pot Heaters
- Food Service - Steamers, Dish Washers
- Industrial - Glass Bending Machine, Hole Punches, Hot Stamp
- PCB Equipment, Smokeless barbecue furnace etc.
Procedure for Sizing Cartridge Heaters
- Establish a maximum temperature at which the part will operate.
- Determine total wattage needed to produce this temperature.
- Establish the largest diameter and the length of the cartridge heater that is best suited to the dimensions of your part.
- Estimate the number of heaters needed for even heat. Divide the total wattage by the number of cartridge heaters to determine the wattage rating of each heater.
- Determine the watt density of the size selected (3.14 * diameter * heat length = area. Wattage / Area = watt density).
- Determine fit (subtract minimum outside diameter of the heater from maximum inside diameter of hole).
Cartridge Heater Technical Data
|
Name |
6.35mm (1/4") 220V 100W Cartridge Heater Heating Resistance Heater Element with Thermocouple |
|
Diameter (mm) |
2.8-35mm (Non-standard can be customized) |
|
Diameter Tolerance |
±0.03mm |
|
Length (mm) |
10mm - 10000mm |
|
Length Tolerance |
±1.5mm |
|
Power |
Max 50W/cm 2 |
|
Temperature |
Max 850 ℃ |
|
Available with a built in Thermocouple |
K or J type Thermocouple |
|
Power Tolerance |
+5% - 10% (closer tolerances are available upon special request) |
|
Input voltage |
12V-480V (non-standard can be customized) |
|
Insulation resistance (500 [V-DC] unheated) |
≥50MΩ |
|
The maximum leakage current (253 [V-AC] unheated) |
≤0.5mA |
|
High voltage stability (temperature) Rated voltage |
≤24V -500V-DC> 24V 1500V-AC |
|
Terminal unheated length |
<3mm-20mm |
|
Non-terminal unheated length |
<3mm-20mm |
Packaging & Delivery
|
Delivery Ways |
Delivery Time |
|
Express (DHL, TNT, Fedex) |
About 5-7 days |
|
Air |
About 7 days |
|
Sea |
About 20-30 days |
|
Production Time |
About 5-20 days after getting payment (According to quantity) |
|
Packing Ways |
Vacuum packing bag + Carton + Pallet |
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. Is it OK to print my logo?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q6: Do you offer guarantee?
A: Yes, we offer 1 year warranty to our products.
