Quick Details
-
Brand Name:
-
VLC
-
Model Number:
-
XL-SM1030
-
Rated Voltage:
-
5.0V DC
-
Resistance:
-
15Ω±10%
-
Excitation Method:
-
2-2 phase exciting
-
Drive Mode:
-
Bi-polar drive
-
Pull Torque:
-
5.0gf-cm Min
-
Pull Out Torque:
-
5.5gf-cm Min
-
Max. Starting Frequecy:
-
800PPS Min
-
Insulation Class:
-
E
-
Insulation Resistance:
-
1.0MΩ(DC 100V)
-
Operating temperature:
-
-20~+60℃
Quick Details
-
Phase:
-
2
-
Type:
-
Hybrid
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
VLC
-
Model Number:
-
XL-SM1030
-
Rated Voltage:
-
5.0V DC
-
Resistance:
-
15Ω±10%
-
Excitation Method:
-
2-2 phase exciting
-
Drive Mode:
-
Bi-polar drive
-
Pull Torque:
-
5.0gf-cm Min
-
Pull Out Torque:
-
5.5gf-cm Min
-
Max. Starting Frequecy:
-
800PPS Min
-
Insulation Class:
-
E
-
Insulation Resistance:
-
1.0MΩ(DC 100V)
-
Operating temperature:
-
-20~+60℃
|

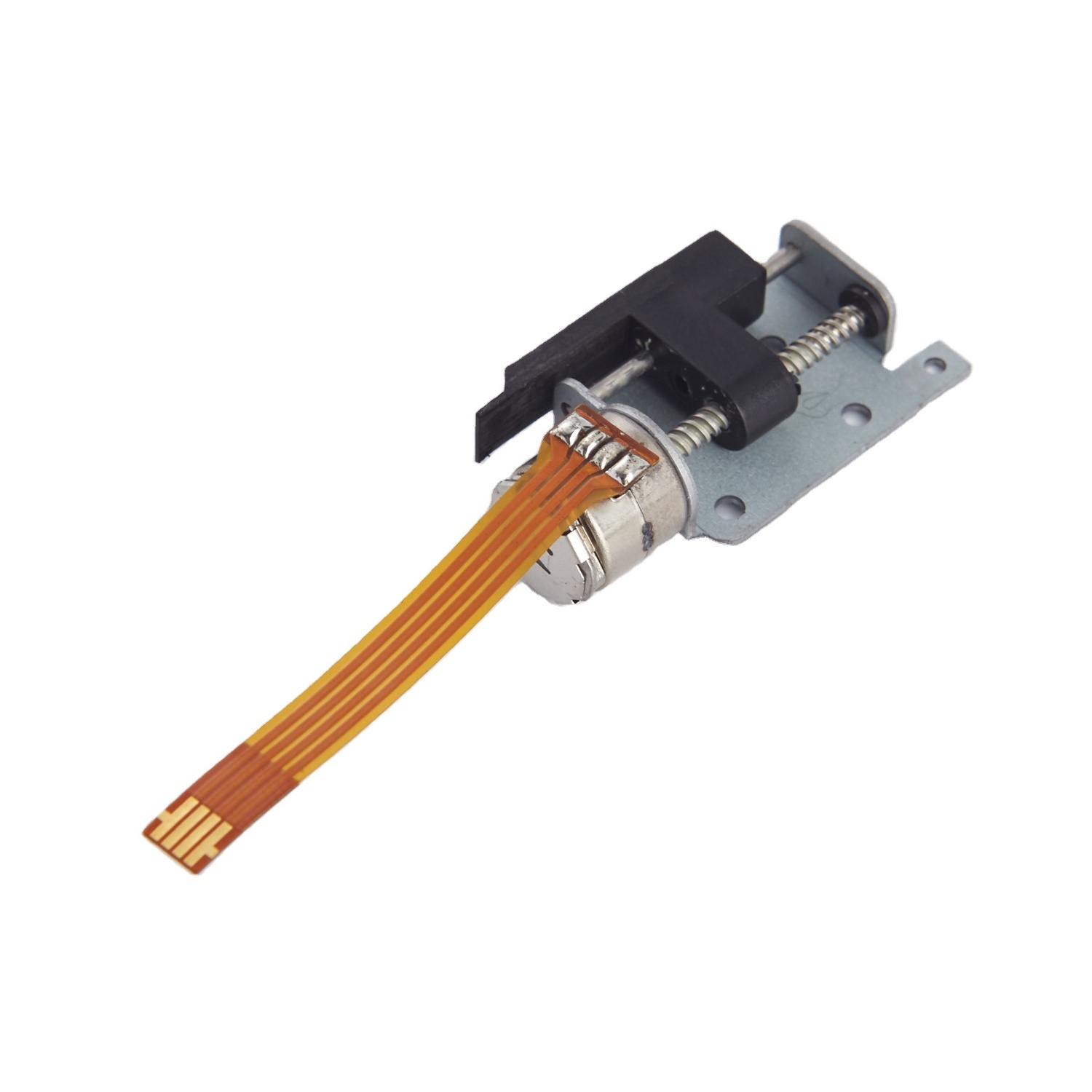

Product Name
|
micro stepper motor
|
|
Material
|
Stainless steel, Iron
|
|
Function
|
The micro stepper motor is a kind of linear screw motor. Its working principle is to use electronic circuit to supply power when DC is changed. The angular displacement is controlled by controlling the number of pulses, so as to achieve accurate posioning. At the same time, the speed and acceleration of motor rotation can be controlled by controlling the pulse frequency, so as to regulate speed.
|
|
Package
|
50 pieces per plastic tray, 500 pieces (10 trays) per carton.
|
-
-
Rated Voltage: 5.0V DC
-
Resistance: 15 Ω±10%
-
No. of Phase: 2
-
Step Angle: 18°
-
Excitation Method: 2-2 phase exciting
-
Drive Mode: Bi-polar drive
-
Pull Torque: 5.0gf-cm Min
-
Pull Out Torque: 5.5gf-cm Min
-
Max. Starting Frequecy: 800PPS Min
- Insulation Class: E
- Insulation Resistance: 1.0MΩ(DC 100V)
-
Operating temp.: -20~+60℃
-
Foshan Xielliang Optoelectronic Products Co., Ltd which is also named as Foshan V-Light Copration is located in Nanhai District, Foshan City, Guangzhou Province. The company covers an area of 1600m2, including a dust-free purification workshop of 200m2. With more than 100 sets of advanced equipment, complete development, design, production, sales capabilities and the main staffs of decades of experience, the company is committed to professional production of various optoelectronic optical devices, such as IR-CUT, P-IRIS, auto Iris, Shutter Unit, micro motor, etc.
The thermal imaging shutter module independently developed by the company perfectly replaces the similar products imported from abroad, breaks the monopoly situation of foreign manufacturers for many years, and makes a positive contribution to the development of domestic related industries. With its excellent performance, the product has been successfully applied in the field of thermal imaging military industry, thus helping the national defense cause.
Q1. Are you a trader or a manufaturer?
We are a professional manufacturer of optoelectrnic products.
Q2. Can your products be customized?
Yes, all of our products can be customized acording to your design needs.
Q3. Is it possible for you to develop new products if we underteke the tooling cost?
Yes, it is. You're welcome to place an order of new products.
Q4. What's your minimum order quantity?
The MOQ is based on the model you order. In addition, we also can negotiate according to
your exact situation.
Q5. How about your products’ quality?
We have strict and standardized quality management system, advanced and precise
production and inspection equipment, skilled workers, to ensure the quality of products.
