Quick Details
-
Max. Loading Capacity:
-
50000L
-
Weight (KG):
-
50 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCT
-
Voltage:
-
110v-380v
-
Dimension(L*W*H):
-
1*1*1.2~3*3*5
-
Power (kW):
-
7500 kW
-
Reaction temperature:
-
room temperature to 300℃
-
Heating methods:
-
electric heating, steam heating, heated in water
-
Motor:
-
explosion proof motor
-
Seal:
-
single/double mechanical seal
-
Speed control:
-
inverter for frequency control
-
Stirring methods:
-
anchor paddle, block, ribbon, turbine type, a dispersing disc, modular
-
Reaction pressure:
-
-0.1~0.6Mpa
-
Power(W):
-
7.5KW-45KW
Quick Details
-
Barrel Volume (L):
-
20000
-
Max. Loading Volume (L):
-
500 L
-
Range of Spindle Speed(r.p.m):
-
20 - 20000 r.p.m
-
Max. Loading Capacity:
-
50000L
-
Weight (KG):
-
50 KG
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JCT
-
Voltage:
-
110v-380v
-
Dimension(L*W*H):
-
1*1*1.2~3*3*5
-
Power (kW):
-
7500 kW
-
Reaction temperature:
-
room temperature to 300℃
-
Heating methods:
-
electric heating, steam heating, heated in water
-
Motor:
-
explosion proof motor
-
Seal:
-
single/double mechanical seal
-
Speed control:
-
inverter for frequency control
-
Stirring methods:
-
anchor paddle, block, ribbon, turbine type, a dispersing disc, modular
-
Reaction pressure:
-
-0.1~0.6Mpa
-
Power(W):
-
7.5KW-45KW

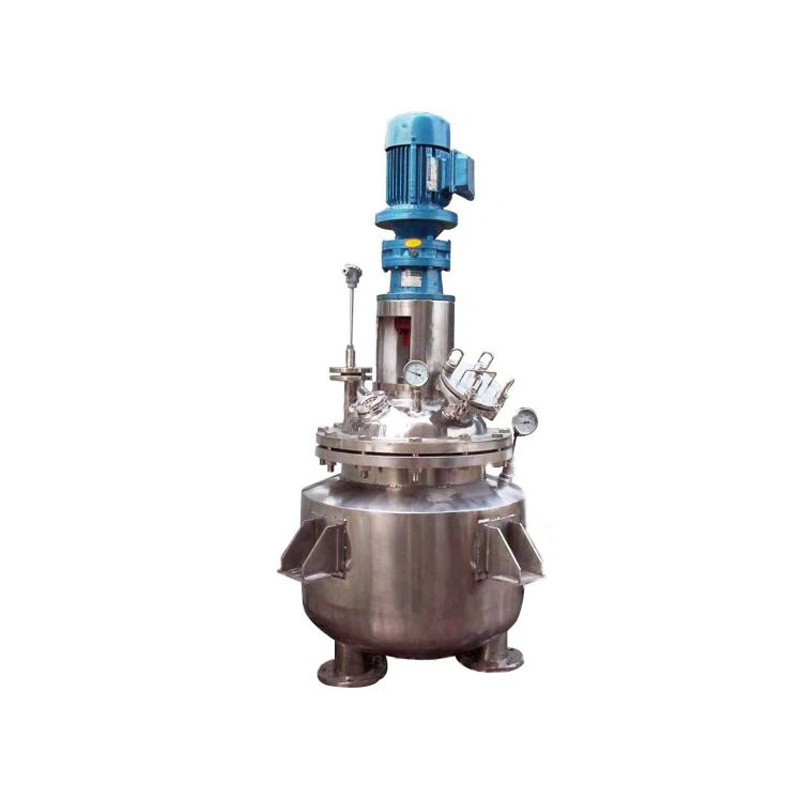

grease mixing kettle grease making machine mixer
1. Introduction:
1) Reactor is the main chemical reaction of the typical production equipment, which is widely used in resins, adhesives, grease, butter oil , paint, cosmetics and other chemical production.
2) To break down or combined the materials through mixing, filling and cooling, to promote the reaction of polymerization.
3) The reactor consists of body, gears, mixing devices, heating devices, cooling devices, seal composition.
4) Corresponding auxiliary equipment: distillation column, condenser, water separator, collecting cans, filters ect.
fixed bed reactor
2.Used in:
1). Unsaturated resin, alkyd resin , acrylic resin, polyester resin , curing agent and complete sets of production equipment.
2). Emulsion , white latex, water-based polyurethane, water-based glue sets of production equipment.
3). 107 rubber, silicone oil, grease,butter oil ,, and other sets of production equipment, hot melt adhesive .
4). Complete sets of production equipment.
5). PU glue, adhesive, grafted gum syrup glue sets of production equipment.
6). Complete sets of raw rubber production equipment.
7). Waste silicone cracking, distillion, recycling sets of production equipment.
8). Dispersion paints, coatings , stirring and mixing equipment.
fixed bed reactor
3. Pictures of reactor and it's products:
reactor apply for:
It can be designed as require.
4. Technical Parameters of industrial reactor:
|
Type |
Volume(L) |
Heating mode |
Structure |
Paddle structure |
Shaft seals |
Remarks |
|
FYF-100 |
115 |
Three choices:
1.Electric heating
2.Steam heating
3.Hot water/oil heating |
Three choices:
1.Jacketed with oil/water
2.Outer pipe/tube
3.Outer and inner pipe/tube |
Three layers:
anchor paddle + block + ribbon; turbine type, with a dispersing disc. |
Three choices:
1. Single mechanical seal
2. Double mechanical seal
3.Packing |
1.The power of motors, stirring speed level determined according to actual requirements.
2.The thickness of the cylinder pressure to be based on response. |
|
FYF-200 |
220 |
|||||
|
FYF-300 |
330 |
|||||
|
FYF-500 |
535 |
|||||
|
FYF-1000 |
1050 |
|||||
|
FYF-1500 |
1550 |
|||||
|
FYF-2000 |
2080 |
|||||
|
FYF-2500 |
2600 |
|||||
|
FYF-3000 |
3120 |
|||||
|
FYF-4000 |
4120 |
|||||
|
FYF-5000 |
5150 |
|||||
|
FYF-6000 |
6150 |
|||||
|
FYF-8000 |
8180 |
|||||
|
FYF-10000 |
10200 |
|||||
|
FYF-12000 |
12200 |
|||||
|
FYF-16000 |
16200 |
|||||
|
FYF-20000 |
20200 |
|||||
|
FYF-30000 |
30300 |
|||||
|
Remark: data in this table for reference, the actual data according to specific process requirements, material viscosity, and other design. |
||||||
5. reactor used in the production:
