Quick Details
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
900/1100
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Weight (KG):
-
80 KG
Quick Details
-
Max. Length of Workpiece (mm):
-
800
-
Machining Capacity:
-
Light Duty
-
Spindle Bore(mm):
-
38 mm
-
Range of Spindle Speed(r.p.m):
-
50 - 2500 r.p.m
-
Width of bed (mm):
-
100
-
Max. Turned Length (mm):
-
800 mm
-
Spindle Motor Power(kW):
-
900/1100
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Weight (KG):
-
80 KG
|

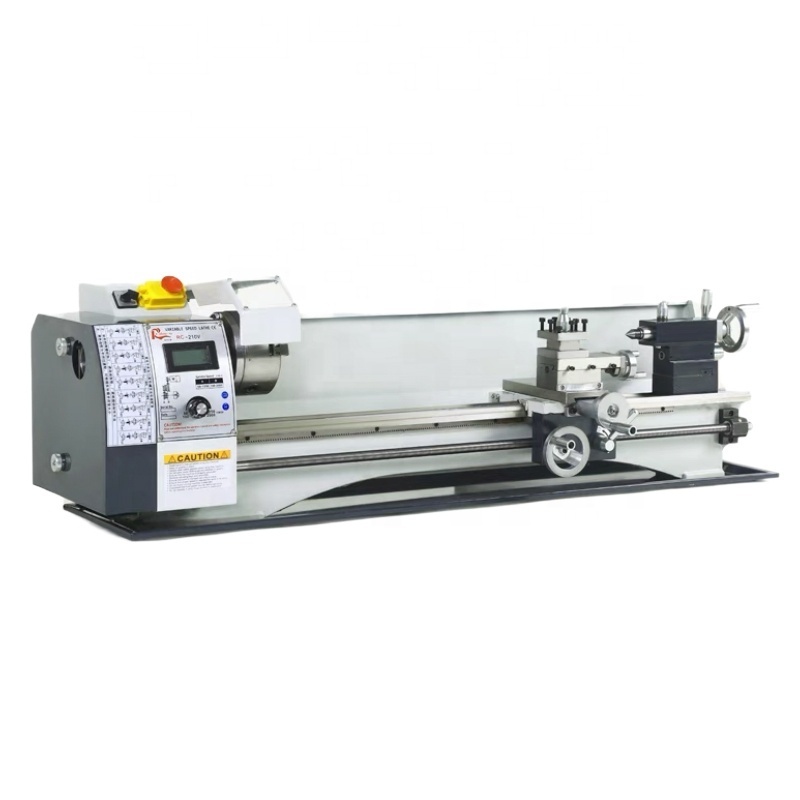

Model:
|
WM210V
|
|
Max. swing over bed:
|
210 mm
|
|
Distance between two centers:
|
800 mm
|
|
Bed width:
|
100 mm
|
|
Spindle Bore:
|
38mm
|
|
Spindle taper:
|
MT5 short taper
|
|
Spindle Steps:
|
Stepless
|
|
Spindle speed range:
|
50-2500RPM
|
|
Number of metric thread stages:
|
9
|
|
Metric thread range:
|
0.5-3 mm
|
|
Tool holder position:
|
4
|
|
Max. travel of the tool holder trailing plate:
|
55 mm
|
|
Max. travel of middle tractor:
|
75 mm
|
|
Max. travel of large tractor:
|
400/600/800 mm
|
|
Travel of tailstock sleeve:
|
60 mm
|
|
Taper of tailstock:
|
MT2
|
|
Main motor:
|
900W/1100W
|
|
Overall dimensions LXWXH:
|
1210mmX390mmX370mm
|
|
Weight:
|
80kg
|
Q: How about the price?
A: We promise the price we offer is lowest if same application, only to enlarge the market share.And given you cost price for consumable parts.
Q:How could i choose the most suitable machines designer ?
A:Please tell us your specification.we could choose the best model for you.or you can choose the exact model.you also can send us the products drawing, we will choose the most suitable machines for you.
Q:what is your main products
A:we specialized in all kinds of GSK productions (GSK CNC machine ,GSK robot,GSK system)and machines such us CNC lathe, CNC milling machine ,machine center ,lathe,milling,turn mill machine ,grinding machine and so on.
Q: Do you provide training and maintenance?
A: Yes. In order to make your production more efficient, after signing contract, you can send someone to my company for professional operation training. we also can dispatch our engineer go to your country and assist you on installation and operation. But all accommodation charge and Round trip tickets should be stand by the buyer.BTW,we have own service team in malaysia and singapore.
Q:Whats your fast delivery time ?
A:If have stock after we received prepayment with 15days can arrange shipment.
Generally delivery time around 30 days not include national holiday.
Q: How to solve the quality problems after sales?
A: Take photos or video of the problems and send to us After we check and confirm the problems, within 24 hours ,we will reply satisfied solution for you.
Q:What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.
For regular orders,we prefer 30% in advance,70% before shipment.
Q: What's the MOQ?
A: 1 set.(Only some low cost machines will be more than 1 set)
Q: Could I visit your factory ?
A:Of course,Yes! Warmly welcome all customer from all over the world to visit our factory.
