Quick Details
-
Dimension(L*W*H):
-
1580*1080*1200mm
-
Weight:
-
910 KG
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Price:
-
factory price
-
Drilling depth:
-
200m
-
Drilling diameter:
-
300mm
-
Engine:
-
Diesel Power
-
Spindle Speed:
-
64 128 287 557r/min
-
Color:
-
Optional
-
Application:
-
Water Well ,Core sample drilling
-
Drilling angle:
-
90 ~75
-
Max drilling depth:
-
200m
-
Local Service Location:
-
Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Japan, Malaysia, Morocco, South Korea, Chile, Sri Lanka, Romania, South Africa, Kazakhstan, Nigeria, Uzbekistan
-
Certification:
-
ISO
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JinDi
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1580*1080*1200mm
-
Weight:
-
910 KG
-
Warranty:
-
1 Year
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Price:
-
factory price
-
Drilling depth:
-
200m
-
Drilling diameter:
-
300mm
-
Engine:
-
Diesel Power
-
Spindle Speed:
-
64 128 287 557r/min
-
Color:
-
Optional
-
Application:
-
Water Well ,Core sample drilling
-
Drilling angle:
-
90 ~75
-
Max drilling depth:
-
200m
-
Local Service Location:
-
Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Pakistan, India, Mexico, Japan, Malaysia, Morocco, South Korea, Chile, Sri Lanka, Romania, South Africa, Kazakhstan, Nigeria, Uzbekistan
-
Certification:
-
ISO

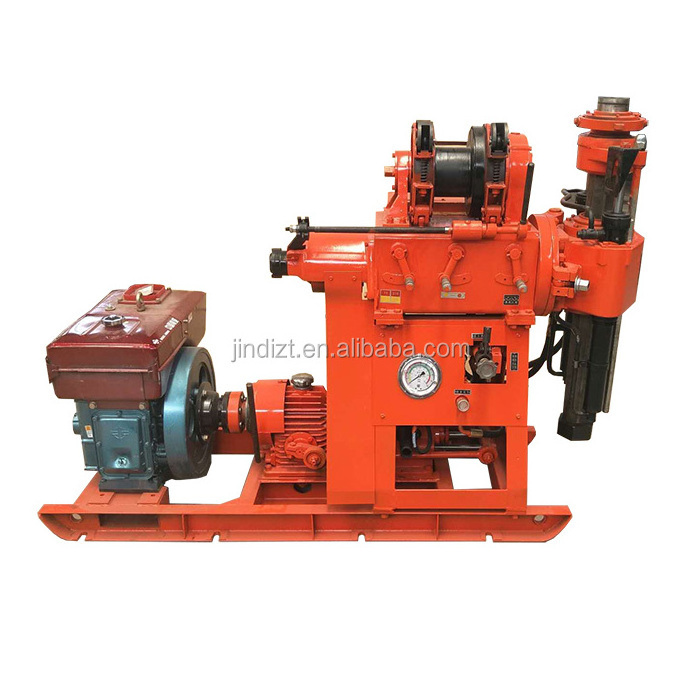

wireline coring drilling rig/core sample drilling machine/soil sample testing drilling machine
1, The drilling machine has a hydraulic automatic feed mechanism, improve drilling efficiency,
reduce manual labor workers.
2. Card holder mechanism instead of using the ball chuck, can implement non-stop down the lever,
easy to operate, safe and reliable.
3. With bottom hole pressure gauge indicates the pressure, easy to grasp hole situation.
4 The handle centralized, easy to operate.
5. Light weight, decomposition and strong, easy to move, adapted to the plains or mountain areas .
|
Drilling depth |
200m |
|
|
Maximum open hole caliber |
300mm |
|
|
End hole caliber |
75mm |
|
|
Drill rod caliber |
60mm |
|
|
Drilling angle |
90° ~75° |
|
|
Drill weight (No include power) |
975kg |
|
|
Unity machine dimensions |
1433×697×1273 m |
|
|
Spindle |
||
|
spindle speed |
64 128 287 557 r/min |
|
|
Spindle stroke |
450mm |
|
|
Winch |
||
|
Max.single line hoisting capacity |
2400kg |
|
|
Single line lifting speed |
0.41 ,0.82,1.64m/s |
|
|
steel wire rope caliber |
13m(35m) |
|
|
Mud pump |
||
|
Type |
Horizontal single urn twin-action |
|
|
Displacement |
170/150L/min(diesel or electromotor) |
|
|
Diesle engine |
ZS1115 16.2kw 2200r/min |
|
|
Electric motor |
Y160M—4 11kw 1440r/min |
|
Note: We made different size machine for drilling , it is the part one , if you want know more demands , pls let me know , I can give you an best suggestion. Thanks
Q: How to choose drilling rig?
Answer:drilling machine including drilling rig, mud pump, engine ( diesel engine or motor) and tower. Choose drilling machine, should be based on drilling purpose, hole depth, hole structure and transportation condition.
How to install this rig? How to operate this rig?
Don't worry, buy our products, we will give you professional guidance.
