Quick Details
-
Model Number:
-
UMT8-HV-4G
-
Usage:
-
Industrial
-
color:
-
Black
-
Communication:
-
SMS
-
material:
-
metal
-
Power:
-
Electronic
-
Wireless:
-
GPRS Upload
-
Display Type:
-
Analog and Digital
-
Theory:
-
Temperature Sensor
-
Wire:
-
Ethernet Transmission
-
Type:
-
Room Temperature Thermostat
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Hong Kong
-
Brand Name:
-
EASEMIND
-
Model Number:
-
UMT8-HV-4G
-
Usage:
-
Industrial
-
color:
-
Black
-
Communication:
-
SMS
-
material:
-
metal
-
Power:
-
Electronic
-
Wireless:
-
GPRS Upload
-
Display Type:
-
Analog and Digital
-
Theory:
-
Temperature Sensor
-
Wire:
-
Ethernet Transmission
-
Type:
-
Room Temperature Thermostat

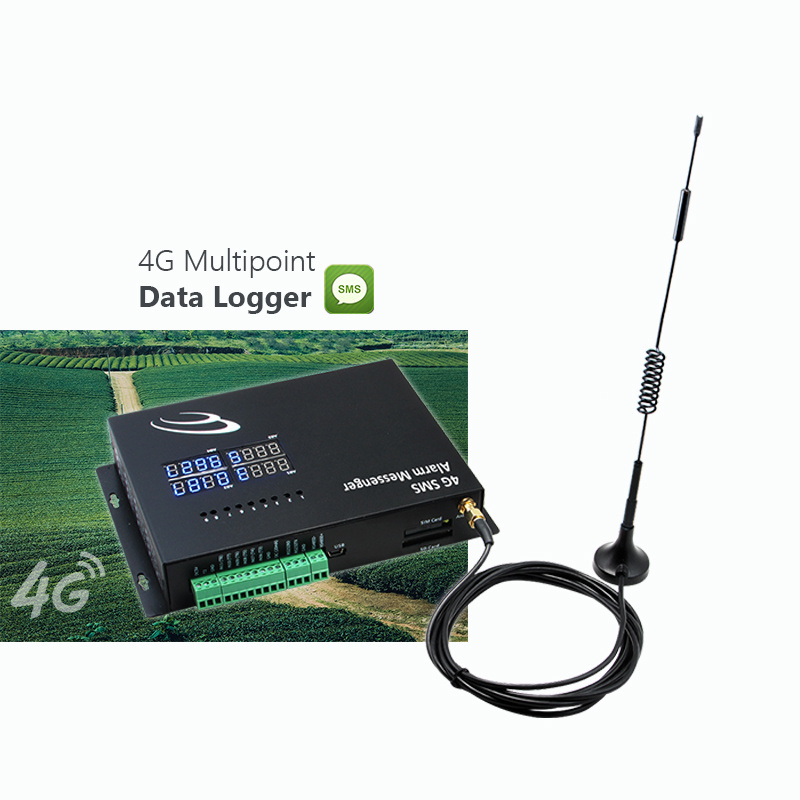

Temperature monitoring 4G data logger automatic transmission SMS alarm
UMT8-HV-4G
is a wireless datalogger supporting max. 11 temperature sensors.
It sends SMS via 4G mobile network.
[detail]
It is a Temperature and Humidity SMS Alarm Messenger with built-in module supporting worldwide 4G mobile network.
4G Data Logger provides faster wireless connection in a more secure and reliable 4G mobile network.
Its built-in UPS feature providing user alert of AC power loss.
During power loss, operation is backed up by internal rechargeable battery.
Overview:
* 8 Temperature Sensors (max.)
* 1 Humidity Sensor
* 8 Analog Channels (max.)
* 10 Digital Inputs
* 4 Pulse Channels
* 4 Relay Outputs
* RS485 Data In
* 32GB SD memory card slot
Its internal 4MB memory logs ~30000 data records, and expandable to 32GB with SD card.
Data can be uploaded to server via SMS in interval to save power.
Progammable data logging interval starts from 1 minute up to 24 hours.
Features
1) Real Time 4G Data & SMS Alarm over SMS
2) Integrated 16 bit MCU & Siemens 4G Module
3) Programmable data input type & alert hi/low
4) Programmable Data Upload Interval & Logging Interval
5) Easy setup via USB port by PC software
6) Remote Setup over 4G mobile network
7) RS485 Port support data capturing in Modbus protocol
8) Flexible AC/DC power with internal battery backup
|
Product name |
UMT8-HV-4G 4 Pulse Channels 4G SMS data logger java sms messaging |
|
Display Type |
Analog and Digital |
|
Signal Type |
4~20mA or 0~5VDC |
|
Output |
5VDC |
|
Modbus Device Port |
RS485 & RS232 |
|
Data Upload Interval |
Programmable (1min ~ 24 hours) |
|
Pulse Channel |
On/Off Switching |
|
Industrial Protocol |
Modbus |
|
Digital Channel |
Alarm Dry Contact |
|
Alarm Trigger |
Digital Alarm / AD Level High or Low / Power Loss |
|
Humidity Sensor |
1 Humidity Sensor |
|
Analog Channels |
8 Analog Channels |
|
Digital Input |
4 Digital Inputs |
|
Pulse Channel |
4 Pulse Channels |
Free Software:
Setup software is bundled for routine configuration via USB port locally or GSM Modem remotely
[Applications]
* water pipes network real time monitoring - water in and out temperature
* oil/gas pipes network, pump stations
* underground water level real time monitoring
* environmental monitoring system - wind/temperature/humidity/CO2/pressure
* remote Industrial equipment monitoring
* rural equipment monitoring e.g. power plant, antenna tower
* measuring equipment data capture and report via 4G mobile network
* food chain, storage, transport industry, building management
* agricultural, farming, laboratory, medical industry
