Quick Details
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
China
-
Brand Name:
-
RS
-
Thickness:
-
0.36mm
-
Adhesive type max width:
-
1800mm
-
Non adhesive type max width:
-
1900mm
-
Working voltage:
-
48VAC
-
Transparency:
-
80% hight transparent with low haze
-
Power consumption:
-
3.6Watt/sqm
-
Technique:
-
Clear Glass Frosted Glass Laminated GlassTempered GlassTinted Glass
-
Available color:
-
White and Dark Grey
-
Length:
-
30m,custom produced
-
OFF/ON:
-
Opaque/Transparent
Quick Details
-
Warranty:
-
2 years
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Hotel
-
Design Style:
-
Traditional
-
Place of Origin:
-
China
-
Brand Name:
-
RS
-
Thickness:
-
0.36mm
-
Adhesive type max width:
-
1800mm
-
Non adhesive type max width:
-
1900mm
-
Working voltage:
-
48VAC
-
Transparency:
-
80% hight transparent with low haze
-
Power consumption:
-
3.6Watt/sqm
-
Technique:
-
Clear Glass Frosted Glass Laminated GlassTempered GlassTinted Glass
-
Available color:
-
White and Dark Grey
-
Length:
-
30m,custom produced
-
OFF/ON:
-
Opaque/Transparent
Product Paramenters
|
Product Name
|
|

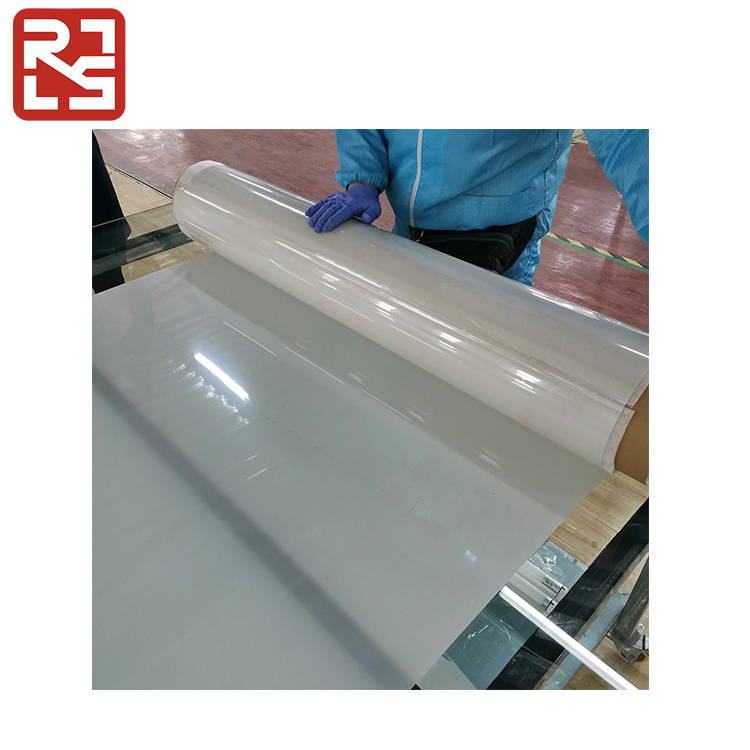

Electric Switchable Glass
|
|
||
|
Product Description
|
|
65V High Transparent Switchable PDLC Film
|
|
||
|
Operation Model
|
Power On
|
Transparent
|
|
||
|
|
Power Off
|
Opaque
|
|
||
|
Optical Performance
|
Avaliable Colour
|
Milky White
|
Dark Grey
|
||
|
|
Haze(on)
|
4-5%
|
4-5%
|
||
|
|
Haze(off)
|
>90%
|
>90%
|
||
|
|
View Angle
|
About 145 Degree
|
|
||
|
|
Light Transmittance( On)
|
90%
|
32%
|
||
|
|
Light Transmittance( off)
|
4%
|
4%
|
||
|
|
UV Block
|
>99%
|
|
||
|
|
Infrared Block
|
On Model>17% Off Model >80%
|
|
||
|
Size
|
|
Self-adhesive Film Roll Size:1*50M,1.2*50M,1.5*50M ,1.8*50M(standard type)
Non-adhesive Film Roll Size:1*50M,1.2*50M,1.5*50M,1.8*50M,2.0*50M(standard type) |
|
||
|
|
Thickness
|
0.4mm
|
|
||
|
|
Operating Voltage
|
AC65±5V
|
|
||
|
|
Power Consumption
|
About 3.7W/SQM
|
|
||
|
|
Frenquency Rate
|
50-60HZ
|
|
||
|
|
Operating Temperature
|
- 20℃-- 70 ℃
|
|
||
|
|
Switch Time
|
Less than 1 second (Off→On :about 200 milliseconds On→Off :about 600 milliseconds)
|
|
||
|
|
Life Time
|
More than 100000h(20years)
|
|
||
|
|
Dimmer Function
|
YES
|
|
||
|
|
Projection Screen
|
YES
|
|
||
|
|
Warranty Time
|
Two years
|
|
||
