Quick Details
-
Place of Origin:
-
China(mainland)
-
Brand Name:
-
SharpHowe
-
Model Number:
-

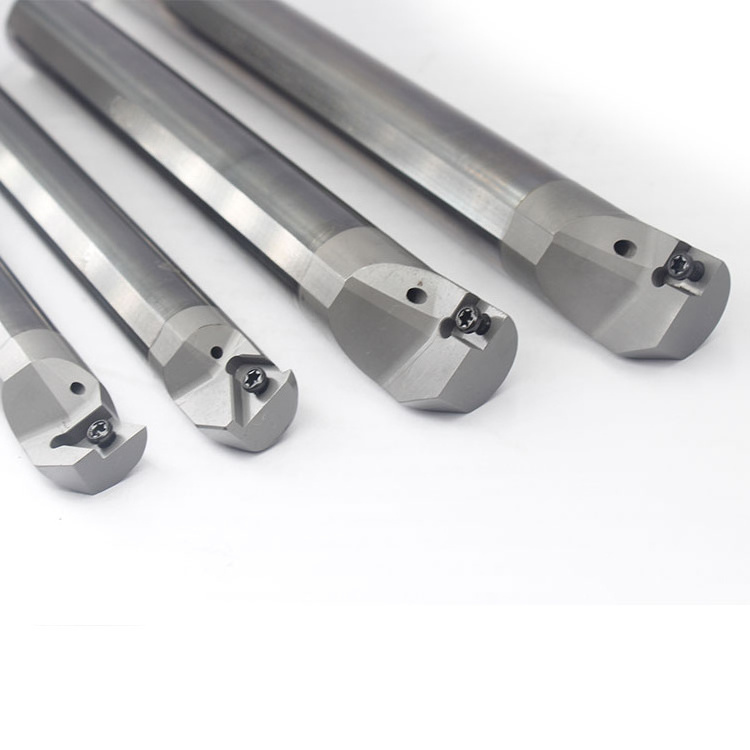

AC25R-SCLCR09, Carbide boring bar AC20S-SDUCR11
-
Material:
-
Tungsten Carbide
-
Advantage:
-
Ant-vibration
-
Holder length:
-
200
-
D Min.:
-
30 mm
-
Holder diameter:
-
25 mm
-
Used Insert:
-
CCMT120408
-
Certification:
-
ISO9001
Quick Details
-
Usage:
-
Internal Turning Tool
-
Hardness:
-
HRC98, HRC90-92
-
Coating:
-
PVD&CVD, Uncoated
-
Place of Origin:
-
China(mainland)
-
Brand Name:
-
SharpHowe
-
Model Number:
-
AC25R-SCLCR09, Carbide boring bar AC20S-SDUCR11
-
Material:
-
Tungsten Carbide
-
Advantage:
-
Ant-vibration
-
Holder length:
-
200
-
D Min.:
-
30 mm
-
Holder diameter:
-
25 mm
-
Used Insert:
-
CCMT120408
-
Certification:
-
ISO9001
| Specification | D(mm) | Length(mm) | dm(mm) | Insert | Screw | Wrench | Weight |
| AC04J-SCLCR-03 | 4 | 110 | 5 | CC..0301 | MS1804A | T06 | |
| AC04K-SCLCR-03 | 4 | 125 | 5 | CC..0301 | MS 1804A | T06 | |
| AC05J-SCLCR-03 | 5 | 110 | 6 | CC..0301 | MS 1804A | T06 | |
| AC05K-SCLCR-03 | 5 | 125 | 6 | CC..0301 | MS 1804A | T06 | |
| AC06J-SCLCR03 | 6 | 110 | 7 | CC..0301 | MS 1804A | T06 | |
| AC06J-SCLCR04 | 6 | 110 | 7 | CC..0401 | MS2004A | T06 | |
| AC06K-SCLCR03 | 6 | 125 | 7 | CC..0301 | MS 1804A | T06 | |
| AC06K-SCLCR04 | 6 | 125 | 7 | CC..0401 | MS2004A | T06 | |
| AC07K-SCLCR06 | 7 | 125 | 9 | CC..0602 | MS2506A | T09 | |
| AC08K-SCLCR06 | 8 | 125 | 10 | CC..0602 | MS2506A | T09 | |
| AC10K-SCLCR06 | 10 | 125 | 11 | CC..0 602 | MS2506A | T09 | |
| AC12M-SCLCR06 | 12 | 150 | 13 | CC..0 602 | MS2506A | T09 | |
| AC14M-SCLCR09 | 14 | 150 | 16 | CC..0 9T3 | MS4011A | T15 | |
| AC16Q-SCLCR09 | 16 | 180 | 18 | CC..0 9T3 | MS4011A | T15 | |
| AC16R-SCLCR09 | 16 | 200 | 18 | CC..0 9T3 | MS4011A | T15 | |
| AC20R-SCLCR09 | 20 | 200 | 25 | CC..0 9T3 | MS4011A | T15 | |
| AC20S-SCLCR09 | 20 | 250 | 25 | CC..0 9T3 | MS4011A | T15 | |
| AC25R-SCLCR09 | 25 | 200 | 30 | CC..0 9T3 | MS4011A | T15 | |
| AC25S-SCLCR09 | 25 | 250 | 30 | CC..0 9T3 | MS4011A | T15 | |
| AC25T-SCLCR09 | 25 | 300 | 30 | CC..0 9T3 | MS4011A | T15 | |
| AC32S-SCLCR12 | 32 | 250 | 38 | CC..1204 | MS5011A | T20 | |
| AC32T-SCLCR12 | 32 | 300 | 38 | CC..1204 | MS5011A | T20 | |
| AC32V-SCLCR12 | 32 | 400 | 38 | CC..1204 | MS5011A | T20 |
The company
Proud cutting tools Co., Ltd. is incorporated to provide efficient cutting tools and solutions for global customers. According to the drawings and technical requirement, we can provide the efficiency technical processes, cutting tools, measure and inspection gauges, fixture and other consumption material associated.
We aim to supply fast and best service, to meet your requirements. Proud cutting tools Co., Ltd. aims to be your one-stop technical service consultants!
Proud cutting tools include the following items,
1) Solid carbide products, (drills, mills, reamers, and custom tailor products), carbide inserts, PCD, CBN, PCBN, Cermet inserts, and other carbide inserts.
2) All kinds of indexable cutting tools for different processes, turning, threading, grooving, drilling and boring process.
3) Tooling system for machine tools and other special equipment facilities based on international standards, such as DIN69871-JT, DIN2080, MAS403-BT and so on…Collet chucks, side-locked holders, shell-mill holders, shrink-fit holder, drill chucks, Morse taper serials , HSK and TMG21 modular tooling system.
4) All the spare parts for the cutting tools and accessories, collet, wrench, screw, shims, nut, pull stud etc.
5) HSS drills, HSS mills, HSS mills, taps and dies, all kinds of inspection gauges and instruments.
