Quick Details
-
Product name:
-
Steel Double Sprocket nylon Bearing house Conveyor Roller
-
Application:
-
Production Line / Sprocket roller conveyor
-
OEM:
-
Accept OEM
-
Size:
-
Customized Size
-
Function:
-
Conveyor Goods
-
Shaft:
-
45# Cold Drawing Round Steel
-
Sprocket:
-
Steel or SUS304
-
Load Capacity:
-
Customized
-
Bearing house:
-
Nylon(Polyamide)
-
Connect between tube and sprocket:
-
Welding
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DP ROLLER
-
Product name:
-
Steel Double Sprocket nylon Bearing house Conveyor Roller
-
Application:
-
Production Line / Sprocket roller conveyor
-
OEM:
-
Accept OEM
-
Size:
-
Customized Size
-
Function:
-
Conveyor Goods
-
Shaft:
-
45# Cold Drawing Round Steel
-
Sprocket:
-
Steel or SUS304
-
Load Capacity:
-
Customized
-
Bearing house:
-
Nylon(Polyamide)
-
Connect between tube and sprocket:
-
Welding
Products Description

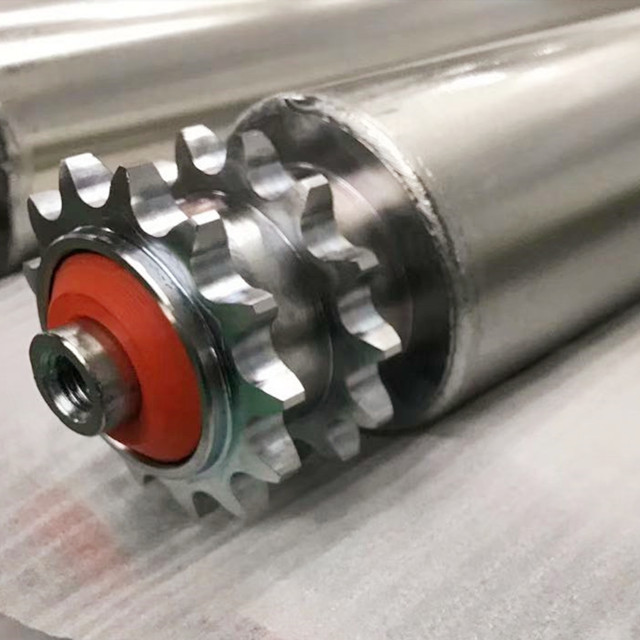

DP2341 Steel Single Sprocket
Polyamide Bearing house Conveyor
Roller
Steel Double Sprocket /
Polyamide Bearing house

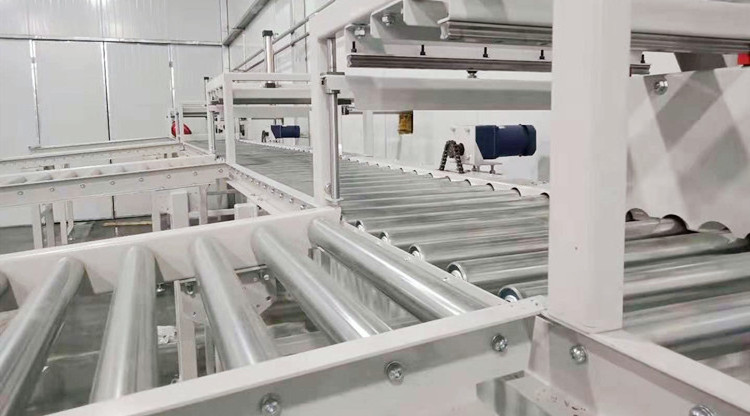

Application: Sprocket Roller Conveyor
Application Environment:Indoor(Food factory , Electronics factory, ……)
Conveying Goods: Carton, Turnover box, Pallet….
Products Features:
1. High torque and Heavy duty
Welding the steel sprocket to the steel tube gives it the capacity to transmit high torque and meet the requirements
for heavy duty transportation.
2. High reliability
The roller offers a very high degree of functional dependability.
3. Low-noise, Smooth running
The use of precision ball bearings, Polyamide bearing house and end caps result in very quiet running.
2. High reliability
The roller offers a very high degree of functional dependability.
3. Low-noise, Smooth running
4. Excellent dust and water resistance
The design of the end cap protects the bearings.
5.
Temperature range: -5℃ to 40℃
6. Various specifications
7. Anti-static treatment (specify when ordering)
6. Various specifications
7. Anti-static treatment (specify when ordering)
General technical data
|
No.
|
Part
|
Description
|
|
1
|
Tube
|
Zinc-plated Steel, Stainless Steel
|
|
2
|
Shaft
|
Uncoated steel, zinc-plated steel, stainless steel
|
|
3
|
Bearing housing
|
Polyamide(Black)+End cap(Yellow/Red/Green)
|
|
4
|
Bearing
|
Precision ball bearing,2RZ,C3
|
|
5
|
Sprocket
|
Steel or SUS304, Double
|

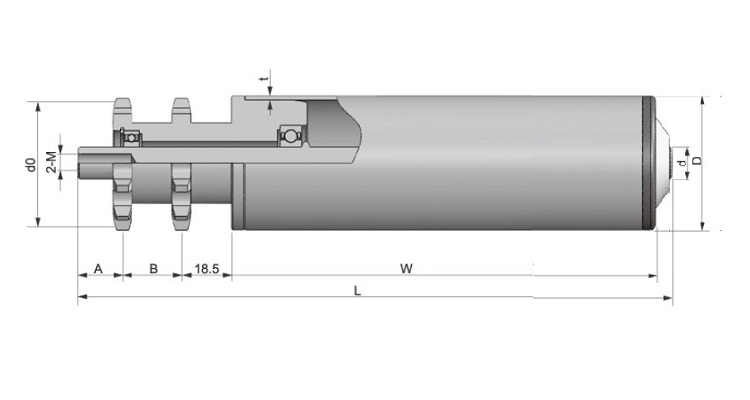

Structure Drawing
DP2341 Steel Double Sprocket Polyamide Bearing house Conveyor Roller
Female Tread
|
Tube Dia.(D)
|
Shaft Dia.(d)
|
A
|
B
|
|
Chain
Pitch
|
Teeth Number
|
Sprocket
Series
|
Dia.(d0)
|
|
Ø38
|
Ø12
|
17
|
22
|
L=W+63
|
12.7
|
11
|
08B/RS40
|
45.08
|
|
Ø50
|
Ø12/Ø15
|
17
|
22
|
l=W+63
|
12.7
|
11
|
08B/RS40
|
45.08
|
|
Ø60
|
Ø12/Ø15
|
17
|
22
|
L=W+63
|
12.7
|
14
|
08B/RS40
|
57.07
|
|
Ø76Ø80/Ø89
|
Ø20
|
20
|
25
|
L=W+69
|
15.875
|
13
|
10A/RS50
|
66.34
|
|
Tube(Material)
|
Tube(Specification)
|
Shaft
|
|
|
||
|
|
|
Ø12(M8*15)
|
Ø15(M10*20)
|
Ø20(M12*25)
|
||
|
Steel,Zinc-plate
|
Ø38*1.5mm
|
√
|
|
|
||
|
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø50*2.0mm
|
√
|
√
|
|
||
|
|
Ø60*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
|
|
Ø60*3.0mm
|
|
√
|
√
|
||
|
|
Ø76*2.5mm
|
|
√
|
√
|
||
|
|
Ø76*3.0mm
|
|
|
√
|
||
|
|
Ø80*3.0mm
|
|
|
√
|
||
|
|
Ø89*3.0mm
|
|
|
√
|
||
|
Stainless Steel
|
Ø38*1.5mm
|
√
|
|
|
||
|
|
Ø50*1.5mm
|
√
|
√
|
|
||
|
|
Ø60*2.0mm
|
√
|
√
|
|
||
|
|
Ø76*3.0mm
|
|
|
√
|
||
