Quick Details
-
Product Name:
-
Rotary IBC Oil tank washing nozzle
-
Material:
-
Ss303,SS304 ,SS316
-
Application:
-
360 Degrees to Clean Nozzle,washing
-
Thread type:
-
NPT BSPT
-
Thread size:
-
2" BSPP female (or quickly connection fitting )
-
Flow Rate:
-
110-1135 L/min(30-300 gpm)
-
Pressure:
-
3-24 bar
-
Cycle Time:
-
10to 30min.
-
Cleaning Range:
-
30.5m
-
Tank opening size:
-
158 mm
Quick Details
-
Weight (KG):
-
11
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CS
-
Product Name:
-
Rotary IBC Oil tank washing nozzle
-
Material:
-
Ss303,SS304 ,SS316
-
Application:
-
360 Degrees to Clean Nozzle,washing
-
Thread type:
-
NPT BSPT
-
Thread size:
-
2" BSPP female (or quickly connection fitting )
-
Flow Rate:
-
110-1135 L/min(30-300 gpm)
-
Pressure:
-
3-24 bar
-
Cycle Time:
-
10to 30min.
-
Cleaning Range:
-
30.5m
-
Tank opening size:
-
158 mm
Contact us
Products Description
CS

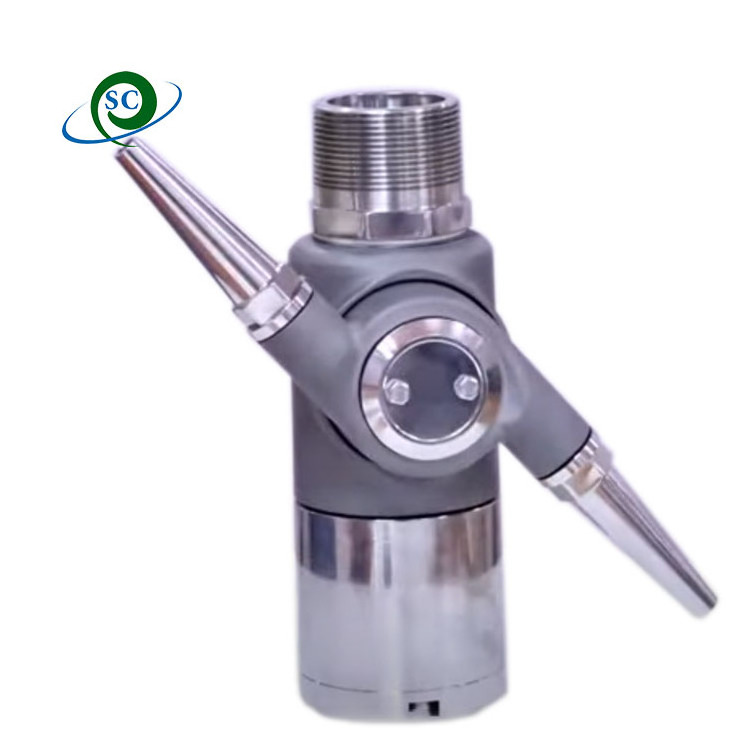

Stainless Steel 360 Degree High Pressure Oil Tank Jet Cleaning Spray Nozzle
|
Product Name
|
High Pressure 360 Rotary Tank Washing Nozzle
|
|
Material
|
Ss303,SS304 ,SS316
|
|
Thread Type
|
NPT, BSPT
|
|
Spray Angle
|
360°
|
|
Thread Size
|
2" BSPP female （or quickly connection fitting ）
|
|
Item No
|
BG30
|
|
Main material
|
316 L
|
|
Sealing material
|
PEEK/EPDM
|
|
Cleaning diameter（φ)
|
30.5 m
|
|
Recommend pressure
|
3-24 bar
|
|
Cycle time
|
10 to 30 min
|
|
Flow rate
|
110-1135 L/min(30-300 gpm)
|
|
Working temperature
|
30-120 ℃
|
|
Min tank opening size
|
158 mm
|
|
N.W.:
|
11 kg
|
|
Application
|
Blenders
• Brewery tanks • Food processing vats and tanks • Pulp storage chests • Petrochemical/chemical processing reactors • Processing tanks • Tanker trucks • Wine vats |
360 degree tank cleaner diameter 100 ft. (30.5 m) 3D Tank Spray Nozzles
The series of 3D tank cleaning nozzle drive the turbine through the cleaning fluid to drive the internal speed reduction
mechanism, and the gear mechanism operates according to the set track to realize the revolution and the rotation, thereby
achieving 360° thorough cleaning.
The series of 3D tank cleaning nozzle drive the turbine through the cleaning fluid to drive the internal speed reduction
mechanism, and the gear mechanism operates according to the set track to realize the revolution and the rotation, thereby
achieving 360° thorough cleaning.
Details Images
Application Scenario
Spraying a liquid through a spray nozzle can serve different purposes:
DISTRIBUTION
Engineers design nozzles with different spray distribution patterns. Patterns can be solid stream, full cone, hollow cone, flat spray, spoon flat fan. The nozzle design aims at the uniformity and impact force of the jet sprayed whether nozzles are used individually or overlapping. Below figures show detailed information for a variety of capacities and spray sections. We mark distribution on every page for your convenience.
