Quick Details
-
Relative Humidity::
-
95% (25 °C)
-
Action Error::
-
≤3%
-
Working Condition::
-
- 20 °C - 60 °C .
-
Application:
-
kato &tadano &p&h& liebherr &terex&manitowoc &hitachi
-
Model Number:
-
wtl a 700 lmi system
-
MOQ:
-
1 set
-
Packing:
-
non fumigation wooden box
-
Brand:
-
wtau
-
Certification:
-
ccs&ce
Quick Details
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
WTAU
-
IP Grade::
-
IP65
-
Relative Humidity::
-
95% (25 °C)
-
Action Error::
-
≤3%
-
Working Condition::
-
- 20 °C - 60 °C .
-
Application:
-
kato &tadano &p&h& liebherr &terex&manitowoc &hitachi
-
Model Number:
-
wtl a 700 lmi system
-
MOQ:
-
1 set
-
Packing:
-
non fumigation wooden box
-
Brand:
-
wtau
-
Certification:
-
ccs&ce
Load Moment Indicator(safe load indicator or Crane computer) is a device which is installed on various sorts of cranes like mobile, crawler, tower, gantry, portal, marine and offshore crane. It alert the operator if the lift is exceeding the safe operating range. In some cases, the device will physically lock out the machinery in circumstances it determines to be unsafe.
It controls the lifting equipment to function as per the manufacturer's suggested safe load charts. Each of the measured parameters like load weight, working radius, control limit,angle and extension of the crane boom, etc will then further be displayed in the operator's cabin.

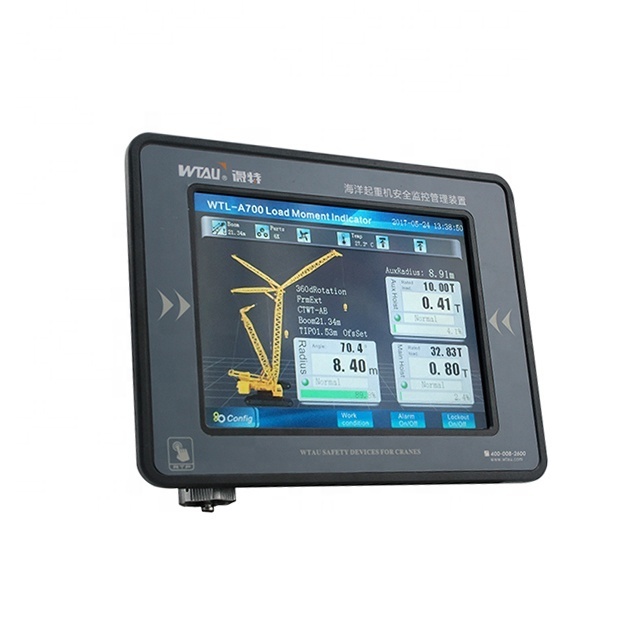

- Model: WTL-A700
- Display:8 inch LCD
- Working Temperature: -20 ℃ ~ 70 ℃
- Operating Humidity: 95%RH(25 ℃ )
- Weight Measurement Range: 0T~999.9T
- Resolving Ability: 0.1T
- Singal Input: <= 6 Channels
- Control Output: <= 6 Channels
- System Composition Error: ±5%(F.S.)
- Power Comsumption:<30W
- Alarm Volume: >60db
- IP Grade: IP 65
- Power Supply: AC220V/DC24V
