Quick Details
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGTAI
-
Model Number:
-
KDT
-
Product name:
-
Electric flat cart paper making industry
-
Name:
-
motorized rail electric vehicle transfer cart
-
Size:
-
Customized Size
-
control:
-
push button control
-
safety feature:
-
warning alarm, end stop
-
usage:
-
industrial
-
power source:
-
cable reel, rail, battery
-
detailed:
-
flat electric transfer cart
-
Style:
-
Square
-
Feature:
-
Strong
Quick Details
-
Usage:
-
Tools
-
Material:
-
Stainless steel
-
Wheel:
-
Four-wheel
-
Warranty:
-
1 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
HENGTAI
-
Model Number:
-
KDT
-
Product name:
-
Electric flat cart paper making industry
-
Name:
-
motorized rail electric vehicle transfer cart
-
Size:
-
Customized Size
-
control:
-
push button control
-
safety feature:
-
warning alarm, end stop
-
usage:
-
industrial
-
power source:
-
cable reel, rail, battery
-
detailed:
-
flat electric transfer cart
-
Style:
-
Square
-
Feature:
-
Strong

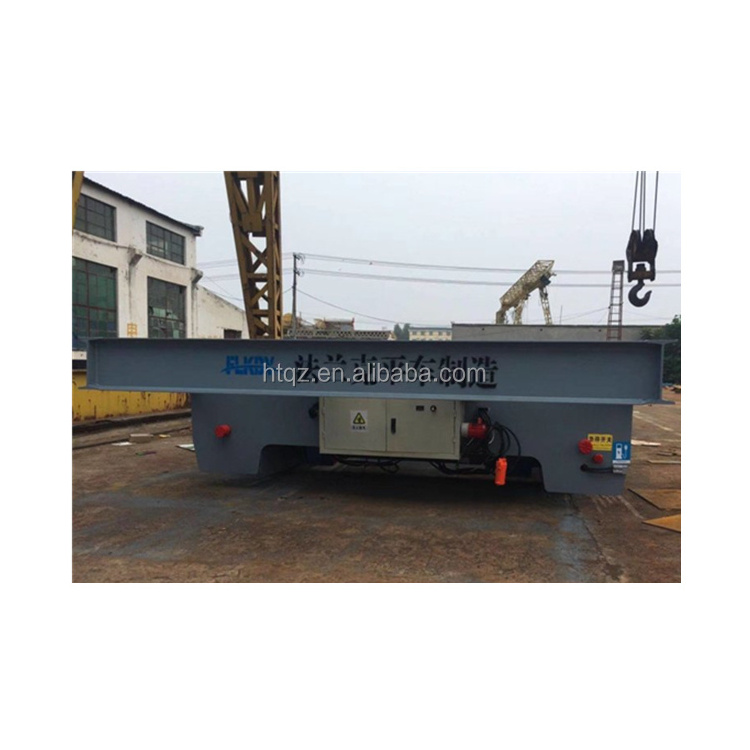

Electric flat cart paper making industry motorized rail electric vehicle transfer cart
Electric flat cart paper making industry motorized rail electric vehicle transfer cart
Flat Electric Transfer cart, also known as electric flat car, electric flat car, trolley car, crossover car, electric rail car, ground climbing car, etc., is a kind of in-plant electric rail transport vehicles, first of all, it is a rail-type transport vehicles, the need to lay tracks on the ground, track is generally i-shaped surface contact rail;Secondly, it is an electrically driven vehicle that runs automatically under the drive of motor reducer. Thirdly, it is a flat car with a flat surface and no hatchcover. Under special circumstances, it can be non-flat but no hatchcover.This kind of vehicle has simple structure, convenient use, large carrying capacity, not dirty not to hit, easy maintenance, long service life, etc, because of its convenience, husky, economic, practical, easy to clean, and many other advantages, become the enterprise internal and factory and factory of choice for short distance between the fixed point often carry heavy transport.
| Product Parameters | ||||||
| Model | Rated load (T) | Wheel Base (mm) | Running speed (min) | Motor Power (Kw) | Ground Clearance (mm) | Max Wheel Load (KN) |
| KPT - 2T | 2 | 1200 | 25 | 0.8 | 50 | 14.4 |
| KPT - 5T | 5 | 2500 | 25 | 1.5 | 50 | 25.8 |
| KPT - 10T | 10 | 2600 | 25 | 1.5 | 50 | 42.6 |
| KPT - 16T | 16 | 2800 | 20 |
2.2 |
50 | 64.5 |
| KPT - 20T | 20 | 2800 | 20 | 2.5 | 50 | 77.7 |
| KPT - 25T | 25 | 3200 | 20 | 3 | 50 | 94.5 |
| KPT - 30T | 30 | 3200 | 20 | 4 | 50 | 110.4 |
| KPT - 40T | 40 | 3800 | 20 | 5.5 | 50 | 142.8 |
| KPT - 50T | 50 | 4200 | 20 | 5.5 | 50 | 174 |
| KPT - 63T | 63 | 4300 | 20 | 7.5 | 75 | 221.4 |
| KPT - 80T | 80 | 4700 | 20 | 7.5 | 75 | 278.4 |
| KPT - 100T | 100 | 4900 | 20 | 11 | 75 | 343.8 |
| KPT - 150T | 150 | 7000 | 18 | 15 | 75 | 265.2 |
Advantage:
- This kinds of mold transfer flat cart needn’t run via the rails, which gets rid of relying for the rails.
- It can not lead to impairment for the cement ground, and can run freely, go forward, back forward, turning...
- This kinds of mold transfer flat cart is battery powered, so only charged fully, can it run freely without limited distance.
-
Professional team for Xinxiang New Leader Machinery Manufacturing Co., Ltd, the proper solution will be provided once getting for your inquiry.
- The mold transfer flat carts are customized as per your true demand.
Henan Hengtai Hoisting Equipement co., LTD. By virtue of scientific management system, convenient transportation conditions, strong production capacity, advanced detection means and strong sales network, to produce high quality, beautiful appearance lifting products to serve large and medium-sized enterprises at home and abroad.Company has a sound quality assurance system closely, the product research and development, design, manufacture, process, quality inspection, after-sales service and other links are covered in the quality assurance system under the control of, in the elaboration structure, energy conservation, environmental protection, safe and reliable, to adopt new technology of new materials and other aspects, make the product quality level enhances unceasingly, product marketing all over the world.
