Quick Details
-
Application:
-
Construction
-
Rated Lifting Moment:
-
7848t.m, 7848t.m
-
Place of Origin:
-
China
-
Brand Name:
-
other
-
Weight (KG):
-
104600 kg, 104600kg
Quick Details
-
Rated Loading Capacity:
-
650 Ton
-
Max. Lifting Height:
-
126m, 126m
-
Engine Brand:
-
Other
-
Application:
-
Construction
-
Rated Lifting Moment:
-
7848t.m, 7848t.m
-
Place of Origin:
-
China
-
Brand Name:
-
other
-
Weight (KG):
-
104600 kg, 104600kg

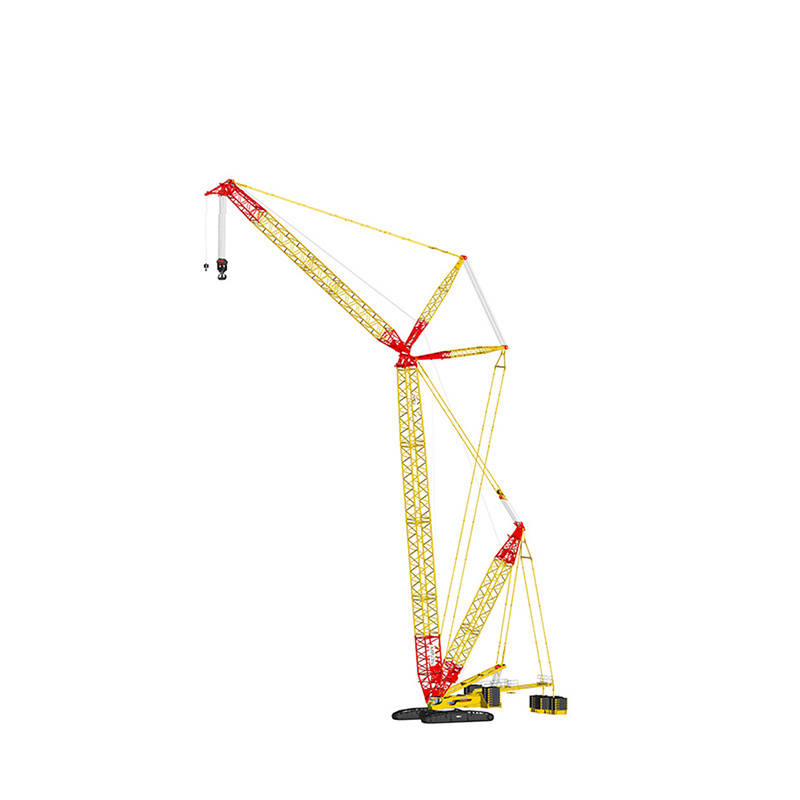

650 ton New Crawler Hydraulic Crane Grab Bucket For Aerial Work Platform With Ce Certificate XGC650
Contact way
Sales Manager
Mark Li
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-13764758759
Web: www.newindu.com
Mark Li
Newindu Construction Engineering (Shanghai) Co.,Ltd
Add: Suite 2801, Super Ocean Finance Center,2067 West Yan'an Road, Shanghai 200336, China
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Skype/Wechat: +86-13764758759
Web: www.newindu.com
Products Description
The crane of this model has been improved from the aspects of assembly and disassembly convenience, operation comfort and lifting capacity, safer and more reliable. Equipped with various advanced technologies such as mast one-key erecting and stepless luffing, the crane’s performance is superior to that with other domestic brands in various aspects.
Under the premise of conventional function realization, wind power working condition has been specially developed for XGC650 to meet the installation requirement of 2.0MW~3.0MW wind power equipment.
Performance Characteristics:
* Uperlift counterweight uses stepless luffing, and equipped with superlift counterweight calculation software. Customer in their practical application can select suitable superlift counterweight weight and radius according to their lifting planning, and at the same time the superlift counterweight is ensured clear off the ground for stepless luffing.
* The goose head is specially designed for wind power lifting, with features of light-weight, strong lifting ability, and the max. lifting load without superlit is up to 165t, the max. boom length is up to 147m+12m.
* The total vehicle weight is in the advanced level of the same tonnage, and the lifting performance is in the international
advanced level, main performance index such as the max. load moment, main boom length, lifting height and et., reach or even exceed the international advanced level. Especially the mobile superlift system greatly improve the adaptability and convenient for the crane.
* Main hoist winch uses φ28mm high-strength wire rope to ensure powerful single line pull, efficient reduction of parts of line, and improve load lifting efficiency.
Under the premise of conventional function realization, wind power working condition has been specially developed for XGC650 to meet the installation requirement of 2.0MW~3.0MW wind power equipment.
Performance Characteristics:
* Uperlift counterweight uses stepless luffing, and equipped with superlift counterweight calculation software. Customer in their practical application can select suitable superlift counterweight weight and radius according to their lifting planning, and at the same time the superlift counterweight is ensured clear off the ground for stepless luffing.
* The goose head is specially designed for wind power lifting, with features of light-weight, strong lifting ability, and the max. lifting load without superlit is up to 165t, the max. boom length is up to 147m+12m.
* The total vehicle weight is in the advanced level of the same tonnage, and the lifting performance is in the international
advanced level, main performance index such as the max. load moment, main boom length, lifting height and et., reach or even exceed the international advanced level. Especially the mobile superlift system greatly improve the adaptability and convenient for the crane.
* Main hoist winch uses φ28mm high-strength wire rope to ensure powerful single line pull, efficient reduction of parts of line, and improve load lifting efficiency.
Product Paramenters
|
Item
|
Unit
|
Parameter value
|
|
Max. rated lifting capacity for boom
|
(t)
|
650
|
|
Max. rated lifting capacity for luffing jib
|
(t)
|
330
|
|
Max. load moment
|
(t.m)
|
7848
|
|
Max. rated lifting capacity for tower jib
|
(t)
|
330
|
|
Max. rated lifting capacity for boom single top
|
(t)
|
30
|
|
Max. rated lifting capacity for special jib
|
(t)
|
170
|
|
Boom length
|
(m)
|
24~108( heavy type)/
|
|
|
|
66~138(light type)
|
|
Boom luffing angle
|
(°)
|
-3~85
|
|
Tower jib length
|
(m)
|
24~96
|
|
Max. dimension of single unit in transport state (L×W×H)
|
(m)
|
12×3.3×3.4
|
|
Special jib length
|
(m)
|
12
|
|
Max. single line speed for hoist mechanism
|
(m/min)
|
130
|
|
Max. single line speed for boom luffing mechanism
|
(m/min)
|
2×58
|
|
Max. slewing speed
|
(r/min)
|
0.7
|
|
Max. travel speed
|
(km/h)
|
0.8
|
|
Grade ability
|
(%)
|
30
|
|
Mean ground pressure
|
(MPa)
|
0.146
|
|
Max. single line speed for tower jib luffing mechanism
|
(m/min)
|
100
|
|
Max. single line speed for super lift luffing
|
(m/min)
|
110
|
|
Model
|
-
|
QSX15
|
|
Engine power
|
(kW)
|
447
|
|
Emission
|
-
|
EU III
|
|
Overall crane mass
|
(t)
|
496(main hook, 24m boom)
|
|
Max. mass of single unit in transport state
|
(t)
|
65
|
