Quick Details
-
Brand Name:
-
INNOVA
-
Model Number:
-
INNOVA
-
Product name:
-
Kjeldahl Nitrogen Analyzer
-
Water Consumption:
-
1.5L/Min
-
Ambient Temperature:
-
5~40℃
-
Ambient Humidity:
-
80%
-
Measure Range:
-
0.1mg~200mg
-
Analysis Time:
-
5~10min
-
Recovery Ratio:
-
≥99.5%
-
Sample Amount:
-
Solid ≤6g; Liquid ≤16ml
-
Consumption:
-
2000W
-
Power Supply:
-
AC110/220 V ±10%,60/50Hz
Quick Details
-
Warranty:
-
1 Year
-
Power:
-
Electronic
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
INNOVA
-
Model Number:
-
INNOVA
-
Product name:
-
Kjeldahl Nitrogen Analyzer
-
Water Consumption:
-
1.5L/Min
-
Ambient Temperature:
-
5~40℃
-
Ambient Humidity:
-
80%
-
Measure Range:
-
0.1mg~200mg
-
Analysis Time:
-
5~10min
-
Recovery Ratio:
-
≥99.5%
-
Sample Amount:
-
Solid ≤6g; Liquid ≤16ml
-
Consumption:
-
2000W
-
Power Supply:
-
AC110/220 V ±10%,60/50Hz
Product Overview
I
nnova

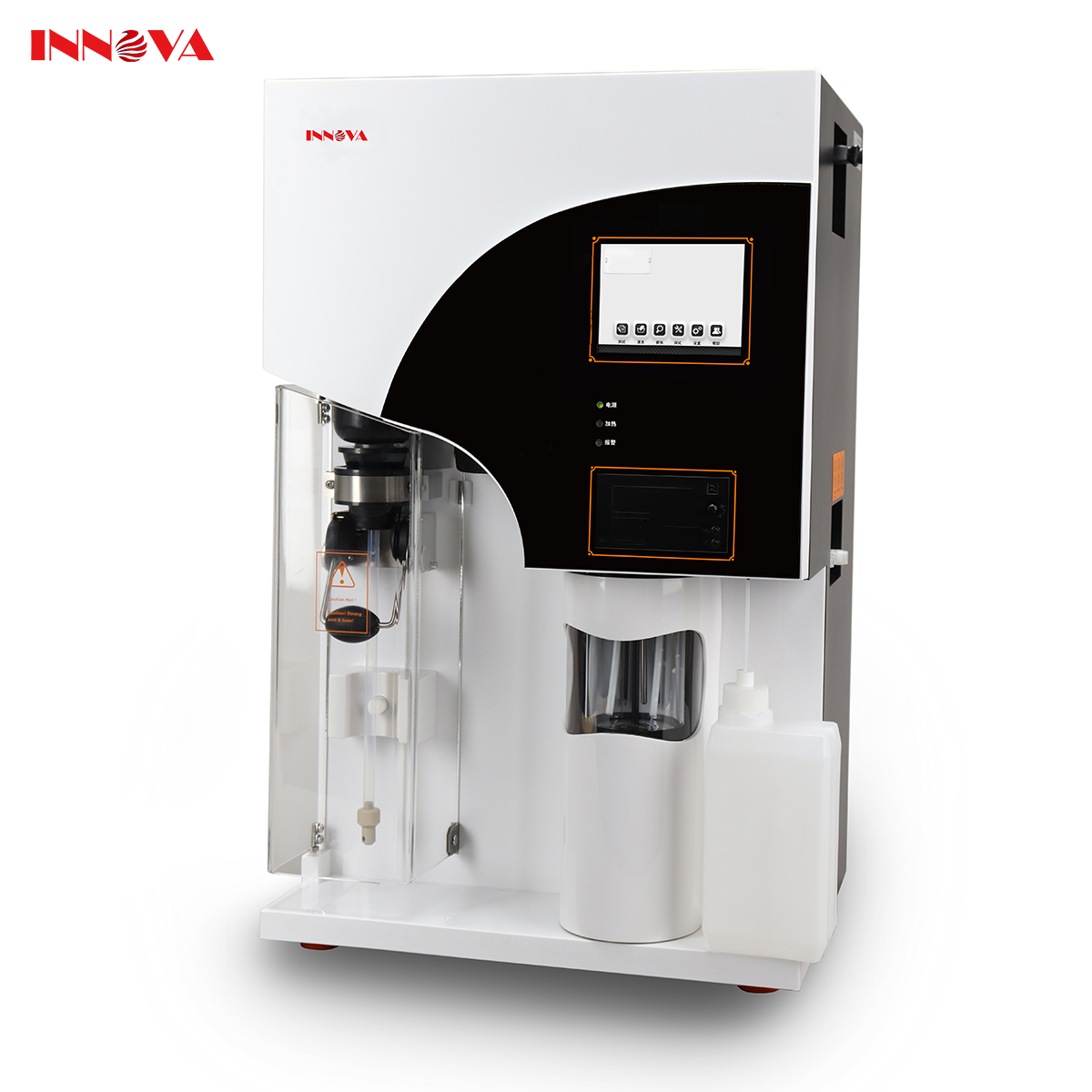

Automatic Kjeldahl Protein/Nitrogen Analyzer
is unique in itsintelligence, efficiency, energy saving and data sharing, bringing more new experiences to users. The product can be widely used in the fields of food processing, feed production, tobacco, animal husbandry, soil fertility, environmental monitoring, medicine, agriculture, scientific research, teaching, quality supervision and other fields of nitrogen or protein determination.
Innova Automatic Kjeldahl Protein/Nitrogen Analyzer including
Primary type
meet customers basic analysis requirements and
Premium type for h
igher analysis requirements.
INOK9840 Auto Kjeldahl Distillation
1.
Automatic accurate distribute alkali and boric acid solution.
2. Perfect safety protection system gives distiller and tubes measurement and protection against over temperature and over pressure.
3. Calibration Function: Dilution water calibration, Alkali solution calibration, Boric acid solution calibration, Washing flow calibration.
4. Safety door, digestion tube and cooling water conditions are displayed in real time when running.
2. Perfect safety protection system gives distiller and tubes measurement and protection against over temperature and over pressure.
3. Calibration Function: Dilution water calibration, Alkali solution calibration, Boric acid solution calibration, Washing flow calibration.
4. Safety door, digestion tube and cooling water conditions are displayed in real time when running.
INOK9860 Automatic Kjeldahl Analyzer
1.
High accuracy dozing and working.
2.
Easy Maintenance: Pre-install functions of cleaning, including receiving cup cleaning, alkali pipeline cleaning, boric acid pipeline cleaning, acid washing, steam bottle evacuation. Support customers make the routine maintenance easily.
3.
High titration accuracy, up to 2.0μL/step.
4.
Integrated printer on the instruments.
Products Technical Parameters
|
INOK9840 Auto Kjeldahl Distillation Technical data:
|
|
INOK9860 Automatic Kjeldahl Analyzer Technical Data:
|
|
||
|
Measuring range
|
0.1mg ～240mg N
|
Measuring range
|
0.1mg ～240mg N
|
||
|
Recovery
|
≧99.5%
|
Analysis time
|
5～10min/sample
|
||
|
Sample capacity
|
solid≦6g/sample, liquid≦16mL/sample
|
Reproducibility
|
Average value relative error ±0.5%
|
||
|
Distillation speed
|
3-6min/sample
|
Recovery
|
≧99.5%
|
||
|
Cooling water consumption
|
1.5L/min
|
Burette volume
|
2.0μL/step
|
||
|
Operating mode
|
Manual/automatic mode
|
Sample capacity
|
solid≦5g/sample, liquid≦20mL/sample
|
||
|
Display modes
|
4.3" LCD screen
|
Water consumption in the
distillation process |
1.5L/min
|
||
|
Power supply
|
220VAC±10%, 50Hz
|
Data storage capacity
|
1000 groups
|
||
|
Power
|
1.3KW
|
Power supply
|
220VAC±10%, 50Hz
|
||
|
Net weight
|
30Kg
|
Power
|
2Kw
|
||
|
Dimensions
|
400mm×385mm×735mm
|
Net weight
|
38Kg
|
||
|
|
|
Dimensions
|
455mm×391mm×730mm
|
||
Supporting Equipment
INO42F Kjeldahl Digestor
Innova INO42F Kjeldahl Digestor adopts advanced high-temperature infrared tradiation heating technology and microprocessor control platform, boasts accurate temperature control and quick temperature rise. It has two kinds of temperature rise modes: linear and curve temperature rise mode, and offers 20 digestion programs for control of temperature rise curves.
AGH03 Acid Gas Collection Hood
Using PFA sealed cap, longer life, dealing effect well.
Clip-on sealing cap, easy for changing.
A specialized water jet vacuum pump is adopted, electric power free.
The drip tray design reduces corrosion damage from acid solutions.
Clip-on sealing cap, easy for changing.
A specialized water jet vacuum pump is adopted, electric power free.
The drip tray design reduces corrosion damage from acid solutions.
INO22F Kjeldahl Digestor
Innova INO22F Kjeldahl Digestor has the advantages of fast, efficient and convenient digestion. It is suitable for food, pharmaceutical, agricultural and other industries, as well as universities and scientific research departments to digest soil, feed and other samples before chemical analysis.
