Size is :89*44*18cm
Shipping weight is 14.5kgs

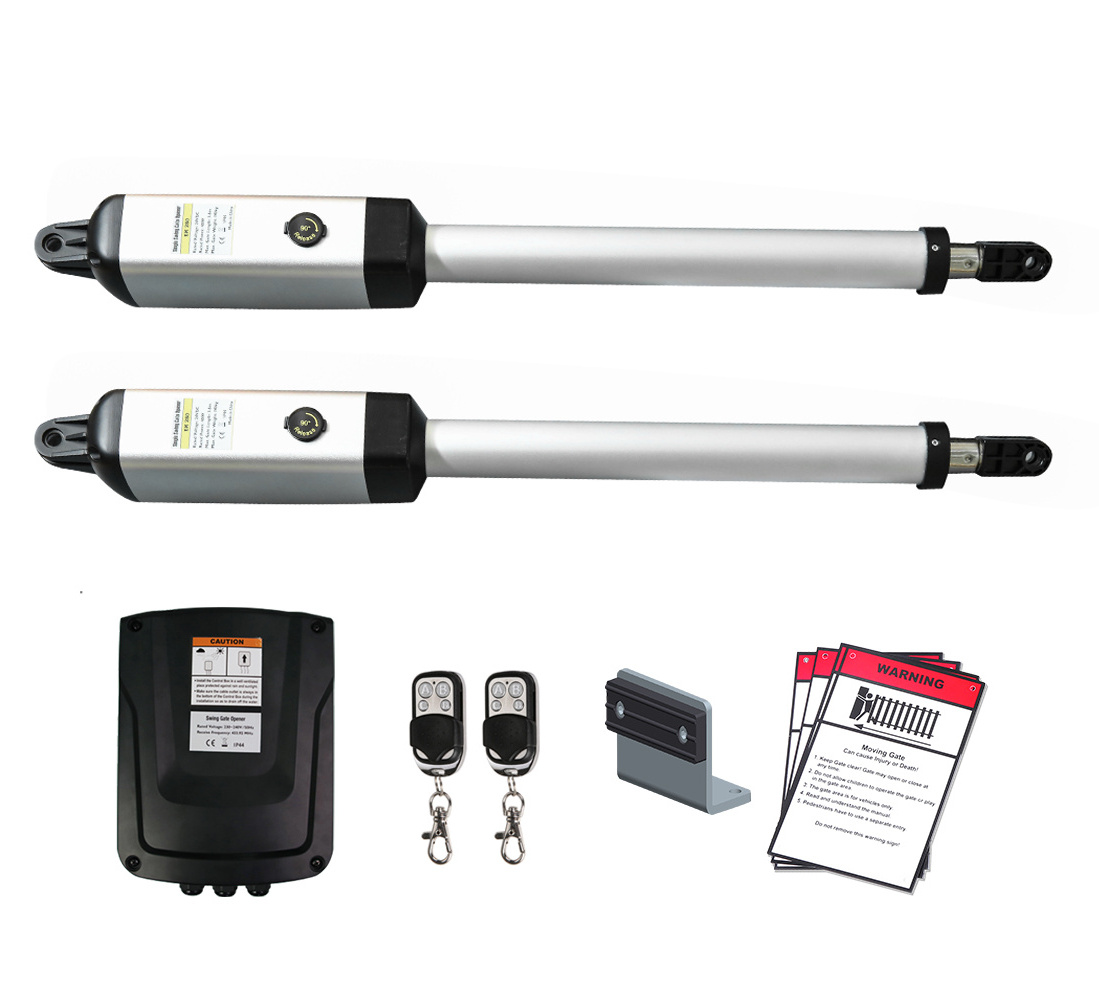

Details:
1*control box mounting guide
4*warning sign
2*remote control
2*acutuator
mounting hardware
- Product Details
- {{item.text}}
Quick Details
-
Application:
-
Outdoor
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
LockMaster Swing Gate Opener
-
Model Number:
-
MP602
-
Motor:
-
50W 24VDC
-
Type:
-
Swing gate opener
-
Current:
-
2A
-
Actuator speed:
-
16mm/s
-
Actuator travel:
-
385mm
-
Max width of gate:
-
3.6m
-
Max. weight of each gate:
-
200KGS
-
Protection Class:
-
IP44
-
Environment conditions:
-
-20℃ - +50℃
Quick Details
-
Warranty:
-
1 Year
-
After-sale Service:
-
Online technical support, Onsite Installation, Onsite Training, Onsite Inspection, Free spare parts
-
Project Solution Capability:
-
graphic design, 3D model design, total solution for projects
-
Application:
-
Outdoor
-
Place of Origin:
-
Zhejiang,China
-
Brand Name:
-
LockMaster Swing Gate Opener
-
Model Number:
-
MP602
-
Motor:
-
50W 24VDC
-
Type:
-
Swing gate opener
-
Current:
-
2A
-
Actuator speed:
-
16mm/s
-
Actuator travel:
-
385mm
-
Max width of gate:
-
3.6m
-
Max. weight of each gate:
-
200KGS
-
Protection Class:
-
IP44
-
Environment conditions:
-
-20℃ - +50℃
Product Description
Specification
|
Swing gate opener of MP602
|
|
|
|
|
||||
|
Motor power of each actuator
|
|
50W 24VDC
|
|
|
||||
|
Actuator speed
|
|
16mm/s
|
|
|
||||
|
Actuator travel
|
|
385mm
|
|
|
||||
|
Max weight of each gate
|
|
440lbs(200KGS)
|
|
|
||||
|
Max.width of each gate
|
|
12FT (3.6m)
|
|
|
||||
|
Ambient temperature
|
|
-22℃~+55℃
|
|
|
||||
|
Protection Class
|
|
IP44
|
|
|
||||
Features
1. Soft start and soft stop
2. Emergency release key in case of power failure
3. Adjustable opening/closing interval between master and slave gate
4. Stop/Reverse in case of obstruction during gate opening/closing.
5. Optional photocell protection
6. Built -in adjustable auto-close (0-99 seconds)
7. Digital display indicates the running situation and setting menu
8. Reliable limit switch(electromagnetism) for easy adjustment
9. Built-in max motor running time( MRT) adjustable for multiple safety protection
10.Easy to handle and low maintenance
11.24V low safety voltage with solar panel as backup battery
12.Guarantee: normally one year after the shipping, but our after sales service last for lifelong time.
13.Packing: tawny carton or colorful carton depend on your order item, or customized carton with your own logo (we have amount requirement on customized items)
2. Emergency release key in case of power failure
3. Adjustable opening/closing interval between master and slave gate
4. Stop/Reverse in case of obstruction during gate opening/closing.
5. Optional photocell protection
6. Built -in adjustable auto-close (0-99 seconds)
7. Digital display indicates the running situation and setting menu
8. Reliable limit switch(electromagnetism) for easy adjustment
9. Built-in max motor running time( MRT) adjustable for multiple safety protection
10.Easy to handle and low maintenance
11.24V low safety voltage with solar panel as backup battery
12.Guarantee: normally one year after the shipping, but our after sales service last for lifelong time.
13.Packing: tawny carton or colorful carton depend on your order item, or customized carton with your own logo (we have amount requirement on customized items)
