Quick Details
-
Dimension(L*W*H):
-
315*295*310(mm)
-
Weight (T):
-
0.12 T
-
Power (kW):
-
3.5
-
Product Name:
-
1KG/220V Brass Melting Furnace Copper Furnace Copper Smelting Furnace
-
Application:
-
Smelting, Refining, Recycling
-
Suitable Metal:
-
Gold, Silver, Brass, Karat Gold, Steel, Aluminum, etc
-
Melting Capacity:
-
1KG (Copper Smelting Furnace)
-
Melting Time:
-
6mins for 1KG Gold (granular)
-
Max temperature:
-
1600℃ (2900℉) (Copper Smelting Furnace)
-
Heating element:
-
Induction Copper Coil (Copper Smelting Furnace)
-
Feature:
-
High Speed (5mins)
-
Operating time:
-
Continuously 24 hours (Copper Smelting Furnace)
-
Net Weight:
-
8.0 KG (Copper Smelting Furnace)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
YALI (Brass Melting Furnace)
-
Voltage:
-
190V/235V (Brass Melting Furnace)
-
Dimension(L*W*H):
-
315*295*310(mm)
-
Weight (T):
-
0.12 T
-
Power (kW):
-
3.5
-
Product Name:
-
1KG/220V Brass Melting Furnace Copper Furnace Copper Smelting Furnace
-
Application:
-
Smelting, Refining, Recycling
-
Suitable Metal:
-
Gold, Silver, Brass, Karat Gold, Steel, Aluminum, etc
-
Melting Capacity:
-
1KG (Copper Smelting Furnace)
-
Melting Time:
-
6mins for 1KG Gold (granular)
-
Max temperature:
-
1600℃ (2900℉) (Copper Smelting Furnace)
-
Heating element:
-
Induction Copper Coil (Copper Smelting Furnace)
-
Feature:
-
High Speed (5mins)
-
Operating time:
-
Continuously 24 hours (Copper Smelting Furnace)
-
Net Weight:
-
8.0 KG (Copper Smelting Furnace)
Product Description
1KG 3500W 220V Small Metal Furnace Melting Gold Home Used Machine Melting Induction Machine

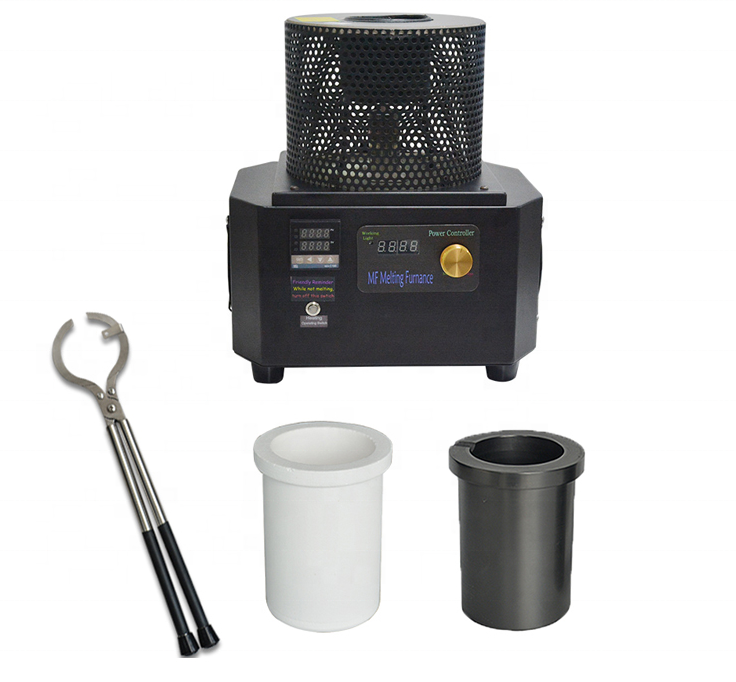

Hand-held Induction Melting Furnace
Features:
The machine adopts medium frequency induction heating, DSP digital control circuits, the actual heating temperature can reach
1600 ℃
(2900 ℉)
Used for refining precious metals (
gold, silver, copper, steel, iron
, etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.
Hand-held Induction Melting Furnace
Features:
The machine adopts medium frequency induction heating, DSP digital control circuits, the actual heating temperature can reach 1600 ℃ (2900 ℉)
Used for refining precious metals ( gold, silver, copper, steel, iron , etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.
Features:
The machine adopts medium frequency induction heating, DSP digital control circuits, the actual heating temperature can reach 1600 ℃ (2900 ℉)
Used for refining precious metals ( gold, silver, copper, steel, iron , etc.).Using the patented magnetic heat technology driving technology, the operation is simple, the melting speed is fast,low energy consumption, the machine volume is small, the outside part is low heat storage.It is a new high performance portable gold melting furnace.
|
1KG 3500W 220V Small Metal Furnace Melting Gold Home Used Machine Melting Induction Machine
|
|
|
|
|||
|
Voltage
|
200v - 235v
|
|
|
|||
|
Working Frequency
|
50hz - 60hz
|
|
|
|||
|
Power input:
|
1KG 3500W
Support 100%full load |
|
|
|||
|
System protection:
|
Double
IGBT Over heat protection
,Lack water protection.
Non - pot circuit detection function. Automatic many kinds of internal fault detection procedures, such as driving frequency error automatic alarm protection, such as a variety of protection circuits. |
|
|
|||
|
Water Cooling system:
|
External water cooler, or direct tap water, only
a minute 1L
of water flow can be used normally.
|
|
|
|||
|
Melting Temp:
|
The actual temperature can be heated up to more than
1600 ℃
, the temperature can be raised rapidly, the electricity can be saved, the smelting cost is low, the cost performance is high
|
|
|
|||
|
Melting Speed:
|
500 grams of copper. Silver. Gold.
About 6 minutes
.Graphite crucibles are necessary
|
|
|
|||
|
Dimension
|
About (315long * 295 wide * 310 high) innovative design,
small size, light weight.
|
|
|
|||
|
Product Name
|
Small Volume 1KG/220V Brass Melting Furnace Copper Furnace Copper Smelting Furnace -- Factory Selling
|
|
|
|||
|
Key Words
|
Brass Melting Furnace; Copper Furnace; Copper Smelting Furnace
|
|
|
|||
Operation Steps
Operation Steps
Brass Melting Furnace / Copper Furnace / Copper Smelting Furnace
Brass Melting Furnace / Copper Furnace / Copper Smelting Furnace
1. Use the power line to connect the melting furnace & water chiller
2. Put the crucible in the coil, press the operation switch and turn the power to maximum.
3. Put the metal into the crucible.
4. Press the operation switch, turn power to maximum and start melting.
5. High-speed melting is proceeding.
6. About 5 mins, melting is finished, turn off the stop switch.
7. Use the plier to grab the crucible and pour the liquid metal into a graphite ingot mold.
8. Let the machine run in 1 min and then turn off the master switch & pull the plug
2. Put the crucible in the coil, press the operation switch and turn the power to maximum.
3. Put the metal into the crucible.
4. Press the operation switch, turn power to maximum and start melting.
5. High-speed melting is proceeding.
6. About 5 mins, melting is finished, turn off the stop switch.
7. Use the plier to grab the crucible and pour the liquid metal into a graphite ingot mold.
8. Let the machine run in 1 min and then turn off the master switch & pull the plug
