Quick Details
-
Brand Name:
-
Atongda
-
Use:
-
CCTV
-
Item:
-
fiber media converter
-
Transmision Distance:
-
20km
-
Wavelength:
-
1310nm
-
Logo:
-
Atongda OEM/ODM
-
Fiber Port:
-
SC-RJ45 Port 1000M
-
Fiber Type:
-
Singlefiber, Single-mode
-
Ambient Temperature:
-
0 ~50°C
-
No. of Fiber:
-
1.
Quick Details
-
Type:
-
Enterprise Switch
-
Model Number:
-
ATD-A/B181-SS20
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Atongda
-
Use:
-
CCTV
-
Item:
-
fiber media converter
-
Transmision Distance:
-
20km
-
Wavelength:
-
1310nm
-
Logo:
-
Atongda OEM/ODM
-
Fiber Port:
-
SC-RJ45 Port 1000M
-
Fiber Type:
-
Singlefiber, Single-mode
-
Ambient Temperature:
-
0 ~50°C
-
No. of Fiber:
-
1.

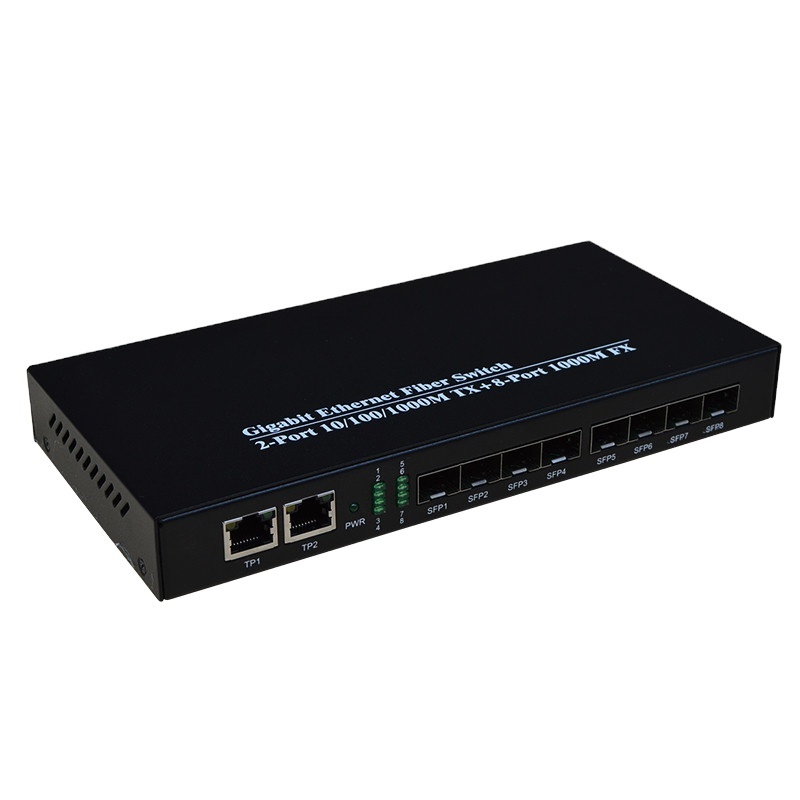

Gigabit ethernet optical fiber SFP switch
8*1000M port network switch
Description
ATD-G108
fiber to 8 UTP switch uses SFP fiber modules which supports multimode or single mode dual fiber,
bi-directional single fiber. The transmission distance is 2km max on MMF and 100km max on SMF.
Standard in-stock fiber interface is SC. LC available upon requests.
Applications
- Where 1 FX needs to be extended to several copper ports
- 1 fiber source to multi-users
- Offices and work groups
- Schools
- Power supply stations
Features
- 1 x SMF/MMF, simplex/duplex fiber port
- 8 x10/100/1000M auto-sensing Half/Full duplex RJ45 ports
- Excellent cooling system with unique HIC solution
- Follow control and broadcast storm control
- IEEE802.3/u/x compliant
- Conspicuous LED indicators for power/link diagnose/data
- 50,000 hours MTBF
Technical Specification
Standard |
IEEE802.3, IEEE802.3u, IEEE802.3x |
Protocol |
CSMA/CD |
Fiber |
1 x Single fiber or Dual fiber |
Distance |
Single fiber SM: 20-100km, Dual fiber MM: 1km, Dual fiber SM:20-100km |
Optical interface |
LC (SC) |
Ethernet Interface |
8 x MDI/MDIX RJ45 ports |
Power Supply |
DC5V 2A (external power) |
Operating Temperature |
0℃~ +50℃ |
Storage Temperature |
-30℃~ +60℃ |
Humidity |
5%~90% non-condensing |
