Quick Details
-
Model Number:
-
MSC1800
-
Product name:
-

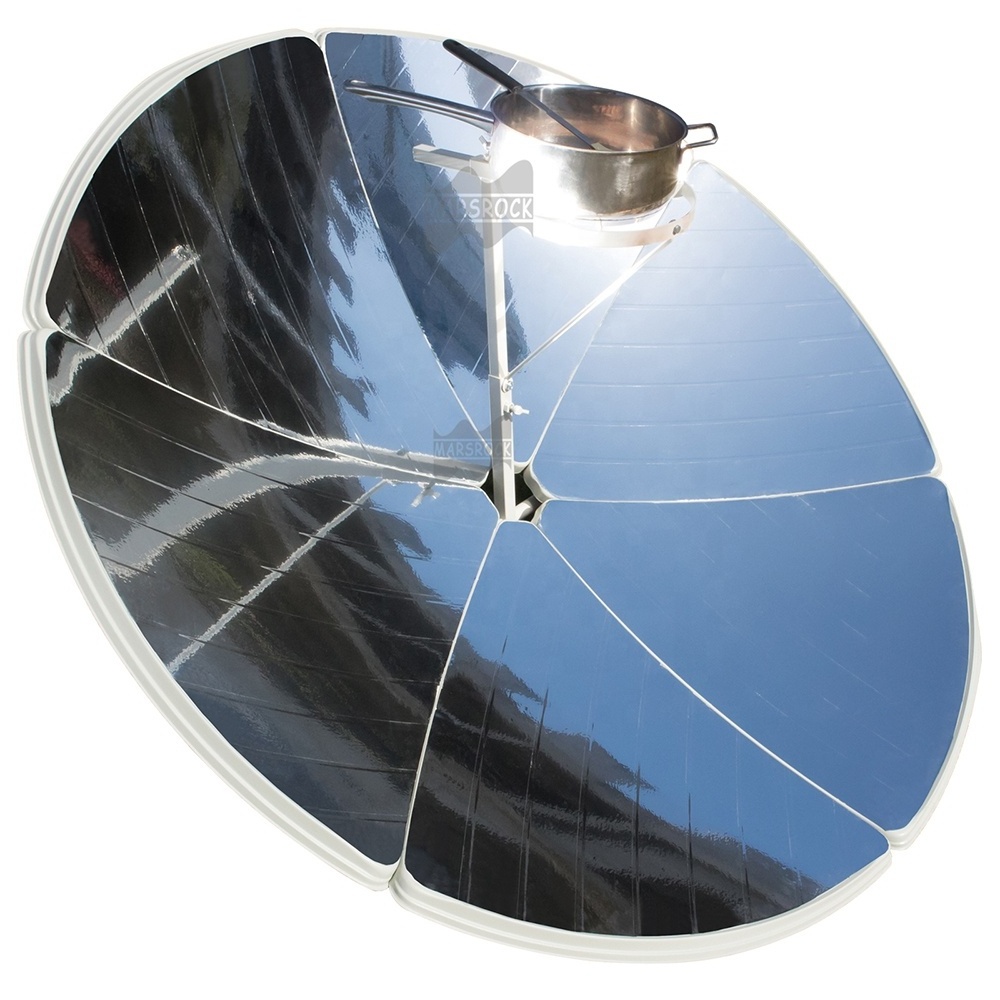

1800W Solar Powered Rice Stove Oven Solar Cooker for Camping Yard
-
Focus:
-
Partial focus
-
Shape:
-
Round
-
Power:
-
1800W
-
Max Temperature:
-
1000W
-
Reflector QTY:
-
6PCS
-
Specification:
-
Diameter 150CM
-
Material:
-
High quality Carbon steel+Magnesia+Vacuum aluminized film
-
Cook water time:
-
37 minuter/3KGS water
-
Certification:
-
CE,FCC,RoHS
Quick Details
-
Warranty:
-
1 year, 1 years warranty, Guarantee for use of 10 years
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
Mars Rock
-
Model Number:
-
MSC1800
-
Product name:
-
1800W Solar Powered Rice Stove Oven Solar Cooker for Camping Yard
-
Focus:
-
Partial focus
-
Shape:
-
Round
-
Power:
-
1800W
-
Max Temperature:
-
1000W
-
Reflector QTY:
-
6PCS
-
Specification:
-
Diameter 150CM
-
Material:
-
High quality Carbon steel+Magnesia+Vacuum aluminized film
-
Cook water time:
-
37 minuter/3KGS water
-
Certification:
-
CE,FCC,RoHS
Product Description
Product Introduction.
Solar stove is a kind of appliance(stove) that collects solar energy for cooking and burning water.
The key component of the solar stove is the polarizing mirror, which not only has the choice of mirror material, but also has a geometric design.
The most common mirrors are silver-plated or aluminum-plated glass mirrors, aluminum polished mirrors and polyester thin film aluminized materials.
It is a new type of kitchen utensils that uses sunlight as energy. It does not use coal, electricity, liquefied gas, firewood, or a penny. It only uses sunlight to convert heat energy to boil water, cook, and stir-fry. It can be used in sunny places throughout the year without any pollution to the environment. It is a product that the world advocates energy conservation and environmental protection. Convenient and save money, one-time investment for life-long income. The stove can be used only when it is placed in a sunny place. The reflector is stamped and formed by high-quality carbon steel plate, which is composed of multiple pieces, which can be disassembled and stored, saving space, and the surface is treated with rust prevention. The overall structure of the solar cooker is compact and light, easy to install, small in packaging, and easy to carry! The high-quality vacuum aluminized film is pasted on the reflector, and the bracket is made of high-quality steel.
Feature:
1. Large expansion area, concentrated spot and high temperature,
2. The reflector is stamped from high-quality original steel plate and is treated with enhanced strength, which lasts longer than the average solar cooker.
3. The steel plate is treated with anti-rust treatment and has stronger weather resistance.
4. The solar cooker is composed of square steel plates with small packaging capacity for easy handling and transportation.
5. Do not use any fuel and electricity, use safe and environmentally friendly. Zero carbon emissions.
6. Optional wheels for easy movement.
Details Images
Product Paramenters
|
Mars Rock Power Soalr Cooker specification
|
|
|
||
|
Focus
|
Positive focus
|
Partial focus
|
||
|
Shape
|
Round
|
Rectangular
|
||
|
Power
|
1800W
|
2300W
|
||
|
Max Temperature
|
1000 degree
|
1200 degree
|
||
|
Specification
|
R=150CM
|
130X190CM
|
||
|
MOQ
|
100SETS
|
100SETS
|
||
|
Material
|
High quality Carbon steel+Vacuum aluminized film
|
|
||
|
Reflective area
|
1.8M2
|
2.3M2
|
||
|
Thickness
|
0.05mm
|
0.07mm
|
||
|
focal length
|
60CM
|
110CM
|
||
|
Elevation(Max)
|
90 degree
|
90 degree
|
||
|
Depression(Min)
|
30 degree(360 degree Rotate)
|
|
||
|
Operating height
|
100cm
|
118cm
|
||
|
N.W
|
18KGS
|
24KGS
|
||
|
Packing Size
|
70X70X15CM
|
70X70X15CM
|
||
|
Cook water time
|
1)Testing place: China,2) Time: December 01 PM: 12:00-13:00, 3)Season: Winter, 4)Temperature:10 degrees 5) wind power is 2-3
levels. |
|
||
|
|
37 minuter/3KGS water
|
21 minuter/3KGS water
|
||
Installation Instructions
Install Procedures:
Step #1 Install Supporting legs rack Fix 3 supporting legs to the tripod base by tightening screws M7. Step #2 Assemble six reflectors together Lay six reflectors in order on even ground ,attached all screws on the hole of there reflectors, then tighten them by wrench one by one. *Left these reflector's third hole vacant(from inside to outside). *Should protect the film on reflector, don't scratch. Step #3 Fix U-Bolt Assembly Fix U-Bolt assembly to reflectors by screw like above step. Step #4 Fix Reflector Bracket Lay the reflector bracket on U-Bolt, then fix them by tightening screw. Step #5 Install cross supporting bar and split the pin Connecting cross supporting bar with reflector bracket , fix them together by installing split pin to the hole at both ends of this reflector bracket. *Don't forget to split the pin, or it will loose! Step #6 Put supporting legs racket and reflectors bracket together Lift the whole the reflectors panel with your assistant and fit the cross supporting bar to the hole of supporting legs rack, tightening the screw 10 in order to fix them together. Step #7 Install spiral regulating device Connecting reflector bracket with cross supporting bar by spiral regulating device. Firstly, fix this device's tail to the connector where at the bottom of cross supporting bar by tightening screw , then fix this device's head with reflector racket, same as above. *The spiral regulating device is length-adjustable *The head should be the rocking handle side of this device. Step #8 Install Supporting Bar Install supporting bar on the cross supporting bar, fitting them together with the help of screw M10 Step #9 Install Stove Ring and Reinforcement Rod Fix stove ring at the top and support it by installing reinforcement rod, which connecting stove ring with cross bar, then tighten the screw
Step #1 Install Supporting legs rack Fix 3 supporting legs to the tripod base by tightening screws M7. Step #2 Assemble six reflectors together Lay six reflectors in order on even ground ,attached all screws on the hole of there reflectors, then tighten them by wrench one by one. *Left these reflector's third hole vacant(from inside to outside). *Should protect the film on reflector, don't scratch. Step #3 Fix U-Bolt Assembly Fix U-Bolt assembly to reflectors by screw like above step. Step #4 Fix Reflector Bracket Lay the reflector bracket on U-Bolt, then fix them by tightening screw. Step #5 Install cross supporting bar and split the pin Connecting cross supporting bar with reflector bracket , fix them together by installing split pin to the hole at both ends of this reflector bracket. *Don't forget to split the pin, or it will loose! Step #6 Put supporting legs racket and reflectors bracket together Lift the whole the reflectors panel with your assistant and fit the cross supporting bar to the hole of supporting legs rack, tightening the screw 10 in order to fix them together. Step #7 Install spiral regulating device Connecting reflector bracket with cross supporting bar by spiral regulating device. Firstly, fix this device's tail to the connector where at the bottom of cross supporting bar by tightening screw , then fix this device's head with reflector racket, same as above. *The spiral regulating device is length-adjustable *The head should be the rocking handle side of this device. Step #8 Install Supporting Bar Install supporting bar on the cross supporting bar, fitting them together with the help of screw M10 Step #9 Install Stove Ring and Reinforcement Rod Fix stove ring at the top and support it by installing reinforcement rod, which connecting stove ring with cross bar, then tighten the screw
For better understand the installation, inviting you to view our above instruction vedio.
