Quick Details
-
Productivity:
-
10-15M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Weight:
-
1600 kg
-
Dimension(L*W*H):
-
3*1.2*1.3m
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Concrete Pump
-
Anti-pump function:
-
Eliminate pipe blockage in time and shut down for a short time
-
Engine:
-
Electric Diesel Gasoline Engine
-
Machine material:
-
High-quality seals prevent internal and external material leakage
-
System:
-
Fully hydraulic system
-
Max. Concrete Output:
-
40M³/H
-
Work efficiency:
-
10 - 40 Cubic Metre/h
-
Color:
-
Customers' Requirement
-
Feature:
-
Optimized design of the hopper is easy to clean and work
-
Distribution valve type:
-
Valve
Quick Details
-
Power Type:
-
Diesel
-
Max. vertical conveying distance:
-
120M
-
Max. horizontal conveying distance:
-
80M
-
Productivity:
-
10-15M³/H
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
wanshan
-
Weight:
-
1600 kg
-
Dimension(L*W*H):
-
3*1.2*1.3m
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Concrete Pump
-
Anti-pump function:
-
Eliminate pipe blockage in time and shut down for a short time
-
Engine:
-
Electric Diesel Gasoline Engine
-
Machine material:
-
High-quality seals prevent internal and external material leakage
-
System:
-
Fully hydraulic system
-
Max. Concrete Output:
-
40M³/H
-
Work efficiency:
-
10 - 40 Cubic Metre/h
-
Color:
-
Customers' Requirement
-
Feature:
-
Optimized design of the hopper is easy to clean and work
-
Distribution valve type:
-
Valve

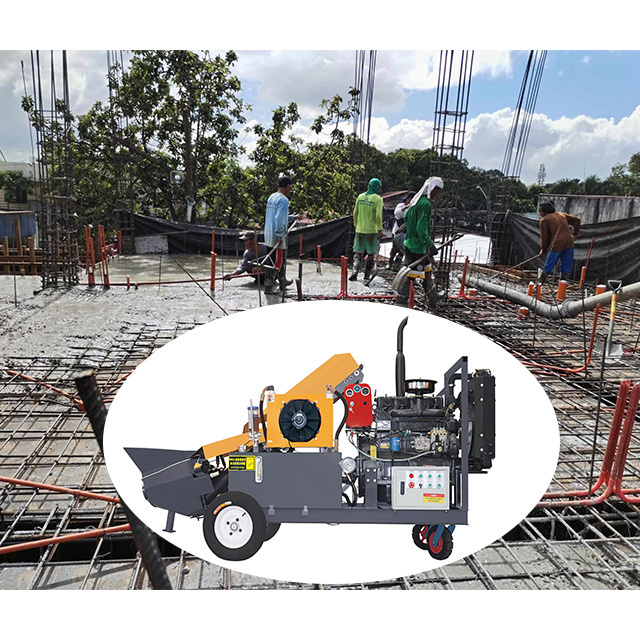

Concrete Pump
The concrete
pump
also called
concrete delivery pump
which
composed of a
pump body
and a
delivery pipe
. It is a
machine that uses pressure to continuously transport concrete along pipelines. It is mainly used in construction of houses, bridges and tunnels. Mainly divided into
gate valve
concrete pump and
S valve
concrete pum
|
Model |
xk-15A |
ZS 23-B |
ZS 30A-diesel |
|
Dimensions |
1.8*0.7*1.1M |
21m*0.7m*1.2m |
2.5m*1.2m*1.5m |
|
Power |
15kw |
diesel 23kw |
diesel 30kw |
|
Conveying particle size |
<20mm |
<20mm |
<30mm |
|
Conveying height |
15-20m |
12-18 m |
15-30 m |
|
Hor izontal transporta tio n |
40-50m |
30-50 m |
40-60 m |
|
Pipe diameter |
80mm |
80mm |
80mm |
|
E fficienc y |
6-8m³/h |
7-12m³/h |
8-14 m³ /h |
|
Weight |
|
900 kg |
1100 kg |
|
Model |
ZS 35-diesel |
ZS 40-diesel |
ZS 50-diesel |
|
Dimensions |
3.2m*1.3m*1.6m |
3.8m*1.5m*1.8m |
4.2m*1.5m*1.5m |
|
Power |
Diesel 4102 43kw |
Diesel 4105 63kw |
Diesel 4108 72kw |
|
Conveying particle size |
<30mm |
<30mm |
<30mm |
|
Conveying height |
20-50 m |
30-90 m |
80-120 m |
|
Hor izontal transporta tio n |
80-130 m |
100-180 m |
150-250 m |
|
Pipe diameter |
8/10cm |
8/10cm |
8/10cm |
|
E fficienc y |
10-16m³/h |
15-20m³/h |
18-25m3/h |
|
Weight |
1400kg |
1700kg |
2200kg |
