Quick Details
-
After-sales Service Provided:
-
Free spare parts
-
Model:
-
small garden tractor prices
-
Color:
-
any color
-
Clutch:
-
Dual-stage Clutch
-
Delivery time:
-
20 Days
-
Package:
-
Iron Frame
-
Payment Terms:
-
T/T
-
Options:
-
air brake, multi valve, roll bar
-
Implements:
-
Plough Harrow Cultivator
Quick Details
-
Brand Name:
-
HUA XIA
-
Place of Origin:
-
Shandong, China
-
Weight:
-
2000 KG
-
After-sales Service Provided:
-
Free spare parts
-
Model:
-
small garden tractor prices
-
Color:
-
any color
-
Clutch:
-
Dual-stage Clutch
-
Delivery time:
-
20 Days
-
Package:
-
Iron Frame
-
Payment Terms:
-
T/T
-
Options:
-
air brake, multi valve, roll bar
-
Implements:
-
Plough Harrow Cultivator
High quality compact small 60hp 50hp 40hp 30hp garden tractor with tiller for sale
Greeenhouse-king series tractors are designed for greenhouses and gardens specially, this tractor have all the functions as other tractors.It is the ideal machine for greenhouse and gardens. Small size . It has compact structure and small radius of turning circle. The two driving wheel can drive at the same time which suit for different kind of road conditions.
Garden tractors with small size, compact structure, powerful engine, flexible manipulation, versatile is designed for green house, orchards, vegetable garden particularly for various types of small fields, can be matched with all kinds of implements like plow,fertilizer, rotavator trailer etc.
General specification of 4wd farm tractor:
| Products model | 304(300) |354 |404H(400H) |504H(500H) |554(550) |704H |804 |
| Wheel drive | 4x4 (4x2) |
| Dimension (L*W*H)mm | 2500x1200x1100 |2620X1250X1160 |3650X1420X2115|3655X1420X2120 |
| Weight (KG) | 1020-1210 |1250-1290 |1610 |1640 |
| Front wheel tread(mm) | 970,1200,1300 adjustable |1000,1200,1300 adjustable|1093 |1070 |
| R wheel tread(mm) | 1000-1300unlimited adjustable|1000,1200,1300adjustable|1068(1000-1300)|1065(1000-1300) |
| Wheel base(mm) | 1460 |1510 |1980 |1900 |
| Minimum land clearance(mm) | 225(240) |235(242) |240 |235 |
| Gear shift | 8F + 2R |
| Tyre size | 9.5-16/600-12(9.5-16/450-12) 11.2-16/600-14(11.2-16/500-12) 13.2-16/600-12(13.2-16/636/173-12) |700-12/13.6-16 |
Engine specification:
| Brand | Weichai/JD/LD/QC/XC |
| Type | Water cooling,Vertical,4 Stroke,Direct Injection |
| Rated power(kw) | 22.06 |25.7 |29.4 |36.8 |40.43 |
| Rated revolution (r/min) | 2300/2400 |
| Start way | electricity start |
| Transmission box | (4+1)x2 shifts |
| Clutch | Single,Dry Friction, Constant Stage Clutch,Dual Stage Clutch |
| PTO speed (kw) | 6 spline 540 or 720 or 540/720 |6 spline 540/720 |

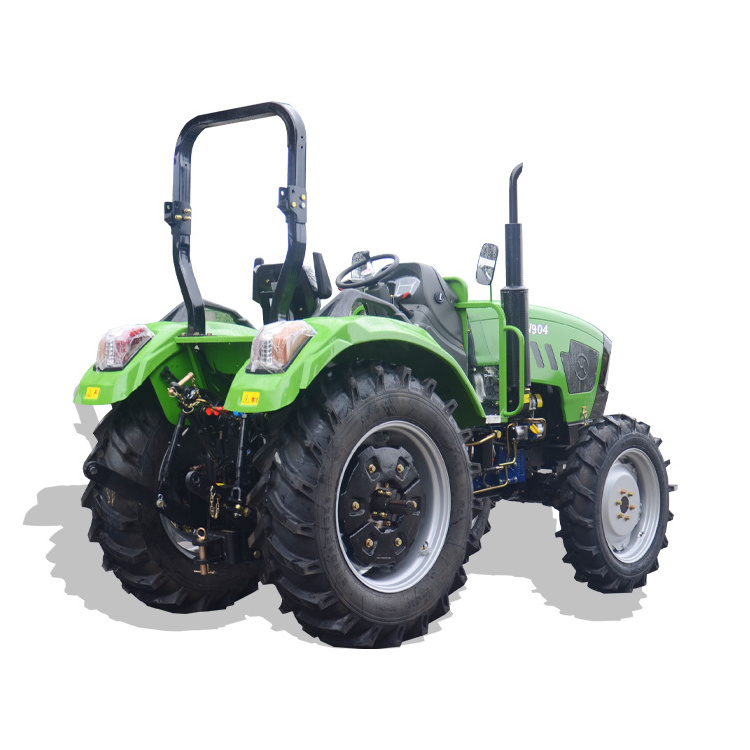

Machine picture display:
Other productions display:
Agricultural implements:
We can attach implements such as sigle plough,trailer,tiller,snow pusher,mower,seeder and so on.
The color is also can be painted as your inquiry.
We're a manufacturer specialize in product various of tractors for 16 years, and have rich experience in product and export tractors.
- Color
Any color can be acceptable.
- Warranty time and the Spare Parts
1. We supply 2 years long warranty time.
2.The Easy-damage parts, we will send you together with the tractor for free. And in warranty period, if the spare part is not work because of the quality, we will send you new parts for free.
3. We will send you the tool Box For free.
