Quick Details
-
Dimension(L*W*H):
-
2200x800x1800
-
Weight:
-
600 KG
-
Features:
-
Tractor Towable Backhoe
-
Product name:
-
New Compact Mini Tractor Used Towable Backhoe
-
Tractor HP:
-
45-85hp
-
3-point linkage:
-
Cat-1
-
Bucket Rotation:
-
180°
-
Max Digging Deep:
-
2640mm
-
Digging depth on ground:
-
2500mm
-
Max Digging Height:
-
3510mm
-
Max Unloading Height:
-
2000mm
-
Loading Height:
-
1952mm
-
Bucket Width:
-
450mm
Quick Details
-
Application:
-
Farm
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
XinKai
-
Dimension(L*W*H):
-
2200x800x1800
-
Weight:
-
600 KG
-
Features:
-
Tractor Towable Backhoe
-
Product name:
-
New Compact Mini Tractor Used Towable Backhoe
-
Tractor HP:
-
45-85hp
-
3-point linkage:
-
Cat-1
-
Bucket Rotation:
-
180°
-
Max Digging Deep:
-
2640mm
-
Digging depth on ground:
-
2500mm
-
Max Digging Height:
-
3510mm
-
Max Unloading Height:
-
2000mm
-
Loading Height:
-
1952mm
-
Bucket Width:
-
450mm

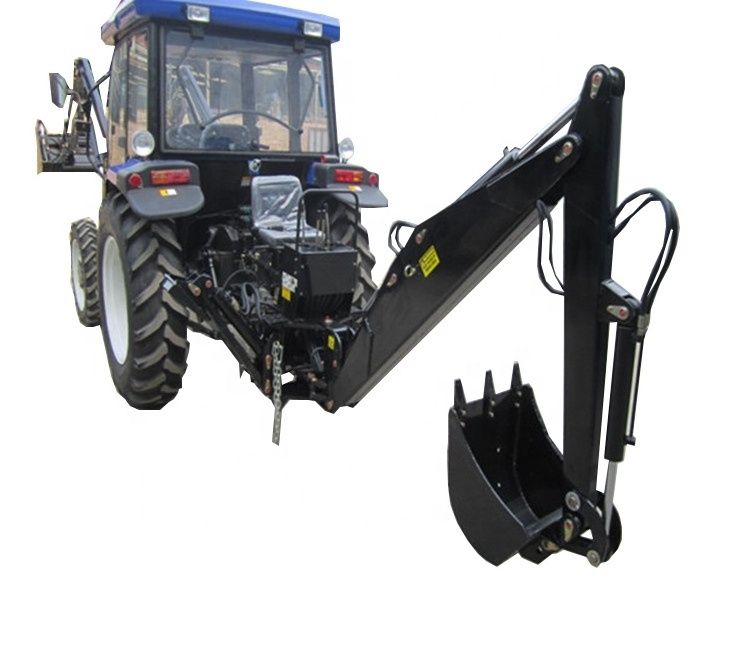

New Compact Mini Tractor Used Towable Backhoe
1). used for ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roads.
2). Tractor Backhoe used Hydraulic transmission is used, featured with compact structure, flexibility, convenient operation and quick mounting and dismounting. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for operation.
3). 3 point hitch Backhoe loader used To better accomplish different kinds of work, bucket of different sizes can be selected and mounted on it.
4) Quick attach 20-140HP tractor by 3-point link, PTO drive, with Hydraulic pump, Oil tank
|
Model |
LW—8
|
LW—9
|
LW—10
|
LW—12
|
|
Matched Power |
45-85hp |
50-100 hp |
70—125 hp
|
80-150 hp |
|
Max Digging Deep |
2640 mm |
2900 mm |
3000 mm |
3500 mm |
|
Digging depth on ground |
2500 mm |
2760 mm |
2800 mm |
3350 mm |
|
Max Digging Height |
3510 mm |
3900 mm |
4000 mm |
4300 mm |
|
Max Unloading Height |
2000 mm |
2327mm |
2362 mm |
2700 mm |
|
Loading Height |
1952 mm |
2413 mm |
2540 mm |
2770 mm |
|
Max Digging Radius |
3930 mm |
3977 mm |
3986 mm |
4300 |
|
Digging Force |
1600 kg |
1900 kg |
2600 kg |
2700 |
|
Digging Force for Digging Stick |
1000 kg |
1270 kg |
1720 kg |
1900 |
|
Swing Angle for Bucket |
160° |
150° |
150° |
172° |
|
Swing Angle f or Boom |
140° |
160° |
160° |
180° |
|
Operation Pressure |
16 Mpa |
16 Mpa |
16 Mpa |
16 Mpa |
|
Bucket Width |
450 mm |
480 mm |
500 mm |
550 mm |
|
Bucket Cubage |
0.048 m3 |
0.054 m3 |
0.06 m3 |
0.07 m3 |
