Quick Details
-
Air Consumption:
-
8~9m3/min(285-325CFM), 9m3/min(325CFM)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WODETEC
-
Voltage:
-
220V,380V, 440V,660V
-
Power:
-
18hp, 13kw/18hp
-
Dimension(L*W*H):
-
2.2x0.96x1.2m
-
Weight:
-
850 kg
-
Suitable Mix Ratio:
-
≤1:4~5
-
Water cement ratio:
-
<0.4
-
Max. Aggregate Size:
-
Dia.15 mm
-
Material Charging Height:
-
1.1m
-
Rotor Speed:
-
11r/min
-
Operating air Pressure:
-
0.2-0.4MPa(29-58PSI)
Quick Details
-
Max. Conveying Distance:
-
200m
-
Max Aggregate Size:
-
15mm
-
Hose Inner Diameter:
-
51 mm
-
Air Consumption:
-
8~9m3/min(285-325CFM), 9m3/min(325CFM)
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WODETEC
-
Voltage:
-
220V,380V, 440V,660V
-
Power:
-
18hp, 13kw/18hp
-
Dimension(L*W*H):
-
2.2x0.96x1.2m
-
Weight:
-
850 kg
-
Suitable Mix Ratio:
-
≤1:4~5
-
Water cement ratio:
-
<0.4
-
Max. Aggregate Size:
-
Dia.15 mm
-
Material Charging Height:
-
1.1m
-
Rotor Speed:
-
11r/min
-
Operating air Pressure:
-
0.2-0.4MPa(29-58PSI)
Product Description

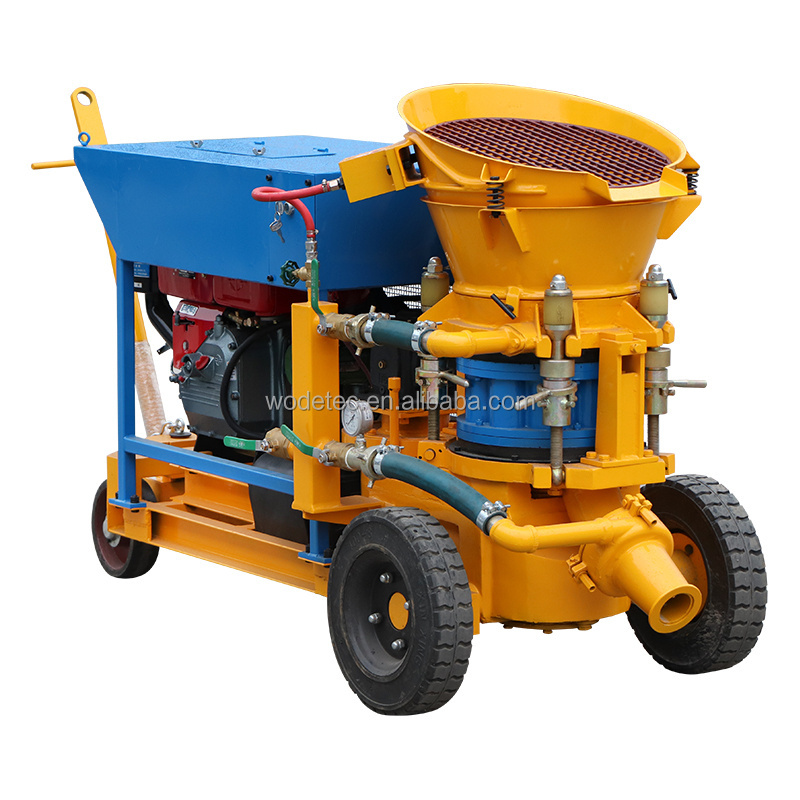

WZ-5 Dry-mix Gunite Machine
is
medium-sized gunite machine
for the processing of dry mix. And dry mix shotcrete machine is widely used by so many contractors. WZ-5 Dry-mix Gunite Machine uses air pressure to convey dry material from the machine through the hose to the nozzle where water is added. It is a low to high production, continuous-feed material placement unit for dry-mix shotcrete. It can be used underground at home, whether in a mining environment or at a construction site. This kind of gunite machine has a rotor feed system, which stands up job-after-job to ensure a long service life and low maintenance. We can supply several hose and nozzle options that are available to meet the demands of shotcrete spraying application. It is is widely used for concrete spraying operation in the tunnel, culvert, subway, hydroelectric works, underground works and high-methane laneway of coal mine.
WZ-5 shotcrete machine can be used for t unneling, mining operations, hydropower projects and hillside protection , etc.
WZ-5 series shotcrete machine is available in following versions:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
WZ-5 shotcrete machine application:
Basic: electric drive can be combined with tyre chassis
Extended (optional): air motor or diesel drive combined skid or rail-wheel
WZ-5 shotcrete machine can be used for t unneling, mining operations, hydropower projects and hillside protection , etc.
Product Specification
|
Item
|
WZ-5D
|
|
Output Capacity
|
3-5.5m3 /h
|
|
Max. Horizontal Conveying Distance
|
200m
|
|
Suitable Mix Ratio(Cement/Sand)
|
≤1:4~5
|
|
Water cement ratio
|
<0.4
|
|
Max. Aggregate Size
|
Dia.15 mm
|
|
Conveying Hose Inner Diameter
|
Dia.51 mm
|
|
Operating air Pressure
|
0.2-0.4MPa(29-58PSI)
|
|
Air Consumption
|
9m3/min(325CFM)
|
|
Material Charging Height
|
1.1m
|
|
Rotor Speed
|
11r/min
|
|
Diesel Type
|
CF1105M
|
|
Power
|
13kw/18hp
|
|
Overall Dimension(L× W× H)
|
2.2×0.96×1.2m
|
|
Net Weight
|
850kg
|
1. High quality, reliable performance.
2. Good seal performance, little dust.
3. Reasonable design, convenient to move.
4. Convenient operation and longevity of service.
5. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
6. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
7. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
8. Widely used in mining, tunnel, culvert, revetment etc.
Product Details
Product Application
Why choose us?
1. We are China Leading of shotcrete machine.
2. Alibaba assessed 1 years gold supplier.
3. 100% QC inspection before shipping.
4. Best quality & Best Service with competitive price.
