Quick Details
-
Brand Name:
-
HELI
-
Fork Length:
-
1220mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
440*1995*2450mm
-
Weight (KG):
-
17385 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Opitional:
-
side shifter
-
Mast Opition:
-
4.5m Mast, 5m Mast, 6m Mast
Quick Details
-
Min. Lifting Height:
-
165mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
HELI
-
Fork Length:
-
1220mm
-
Fork Width:
-
125mm
-
Overall Dimensions:
-
440*1995*2450mm
-
Weight (KG):
-
17385 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Opitional:
-
side shifter
-
Mast Opition:
-
4.5m Mast, 5m Mast, 6m Mast

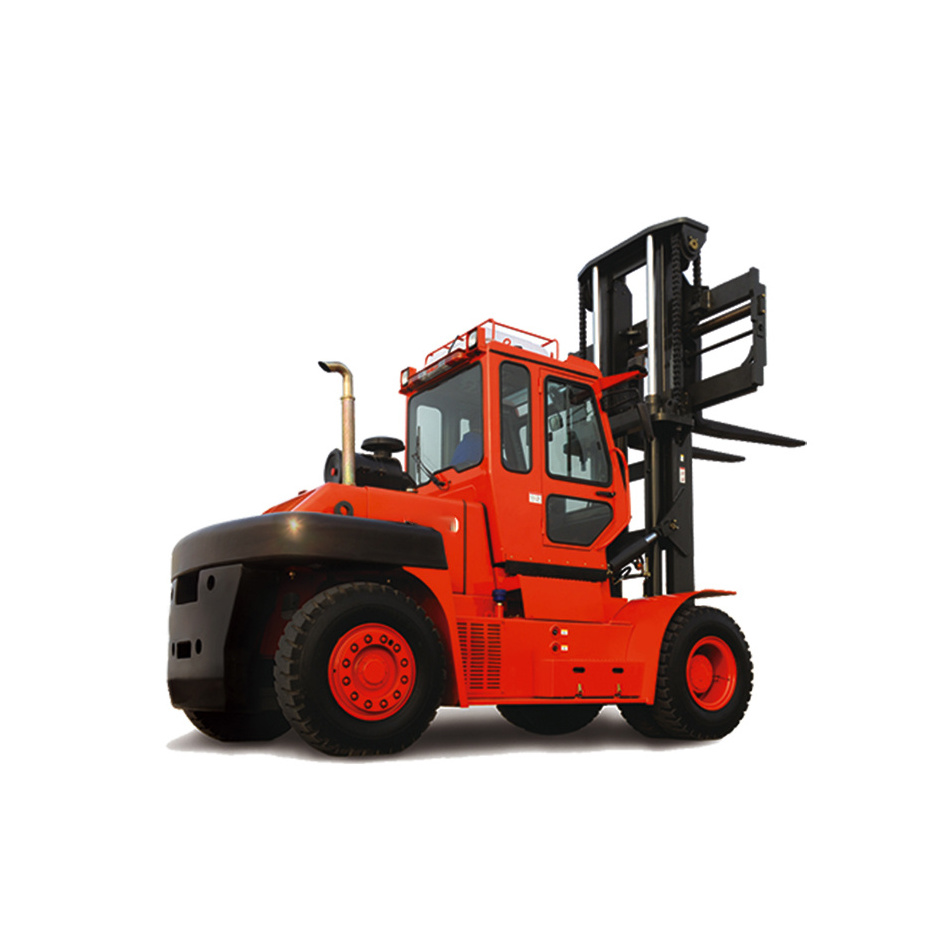

HELI 13.5ton Diesel Forklift CPCD135 Heavy Forklift And Spare Parts On Stock
Technical Parameters
|
Technical Parameters |
||||
|
01 |
Model |
Unit |
CPCD135-C1Z-06IIIG |
|
|
02 |
Rated load |
t |
13.5 |
|
|
03 |
The mass |
kg |
17385 |
|
|
04 |
Maximum lifting speed(loaded/unloaded) |
Mm/s |
360/400 |
|
|
05 |
Maximum traveling speed(loaded/unloaded) |
Km/h |
25/27 |
|
|
06 |
Climbing ability(loaded/unloaded) |
% |
36.4/40% |
|
|
07 |
The cab noise |
dB |
73.8 |
|
|
Size parameters |
||||
|
01 |
Model |
Unit |
CPCD135-C1Z-06IIIG |
|
|
02 |
The total length |
Mm |
6265 |
|
|
03 |
The total width |
Mm |
2560 |
|
|
04 |
The total height |
Mm |
3380 |
|
|
05 |
Load center distance |
Mm |
600 |
|
|
06 |
The wheelbase |
Mm |
3250 |
|
|
07 |
Front overhang |
Mm |
785 |
|
|
08 |
Rear overhang |
Mm |
850 |
|
|
09 |
The min clearance from the ground |
Mm |
260 |
|
|
10 |
Seat height |
Mm |
2615 |
|
|
11 |
The inner turning radius |
Mm |
220 |
|
|
12 |
The outer turning radius |
Mm |
4450 |
|
|
13 |
Tread(front) |
Mm |
1892 |
|
|
14 |
Tread(rear) |
Mm |
2120 |
|
|
15 |
Mast height(contraction H/extension H1) |
Mm |
3380/4880 |
|
|
16 |
Standard lifting height H3 |
Mm |
3000 |
|
