Quick Details
-
Brand Name:
-
CIPPUS
-
Model Number:
-
CMF7000B
-
Product Name:
-
Battery Powered Water Flow Measurement Device Waste Water Flow Meter
-
Medium:
-
water, acid conductive liquid
-
Pipe Size:
-
DN6~DN3000mm
-
Pressure:
-
1.6Mpa (customized)
-
Accuracy:
-
±0.5%,±0.3%or±0.2% are selectable
-
Liner material:
-
PTFE,PFA,F46,Neoprene,Polyurethane
-
Electrode material:
-
SS316,Hastelloy C,Titanium,Tantalum Platinumiridium etc.
-
Mediem temperature:
-
-20°C~+160°C
-
Ingress protection:
-
IP65,IP67,IP68
Quick Details
-
Type:
-
Variable Area Water Flowmeters
-
Warranty:
-
12 months
-
Place of Origin:
-
Shaanxi, China
-
Brand Name:
-
CIPPUS
-
Model Number:
-
CMF7000B
-
Product Name:
-
Battery Powered Water Flow Measurement Device Waste Water Flow Meter
-
Medium:
-
water, acid conductive liquid
-
Pipe Size:
-
DN6~DN3000mm
-
Pressure:
-
1.6Mpa (customized)
-
Accuracy:
-
±0.5%,±0.3%or±0.2% are selectable
-
Liner material:
-
PTFE,PFA,F46,Neoprene,Polyurethane
-
Electrode material:
-
SS316,Hastelloy C,Titanium,Tantalum Platinumiridium etc.
-
Mediem temperature:
-
-20°C~+160°C
-
Ingress protection:
-
IP65,IP67,IP68

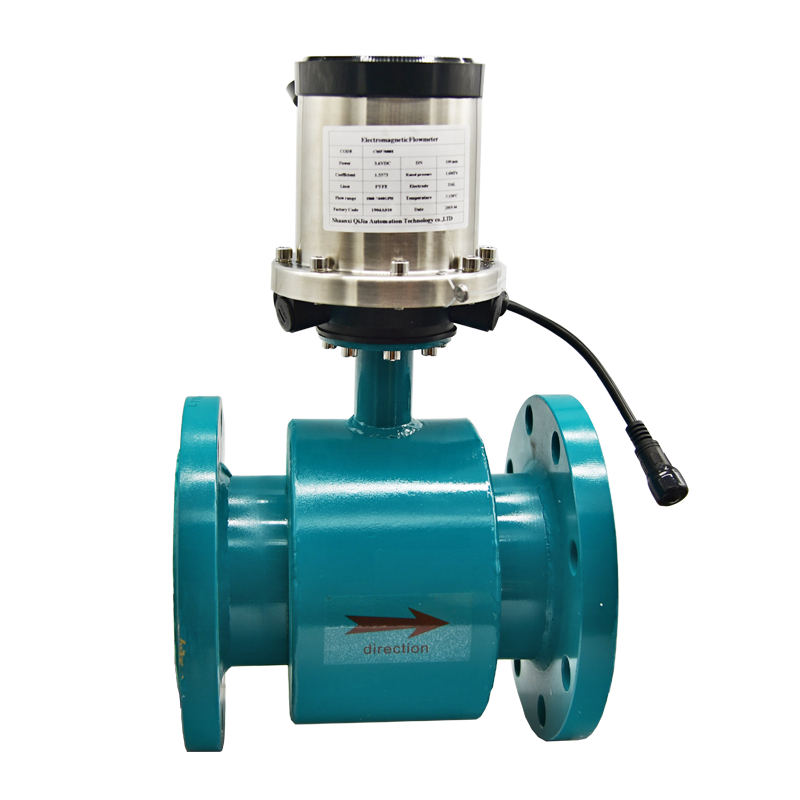

Battery Powered Water Flow Measurement Device Waste Water Flow Meter
Product Description
Technical Performance Parameters
| Dimension | DN6~DN3000mm | ||
|---|---|---|---|
| Nominal Pressure | 0.6~1.6MPa(2.5Mpa/4.0Mpa/6.4Mpa...42Mpa) | ||
| Accuracy | ±0.5%,±0.3%or±0.2% are selectable | ||
| Liner material | PTFE,PFA,F46,Neoprene,Polyurethane | ||
| Electrode Type | General type ,scraper type and replaceable type | ||
| Electrode material |
Stainless steel SUS316,Hastelloy C,Titanium,Tantalum Platinumiridium,
Stainless steel covered with tungsten carbide |
||
| Mediem temperature | Integrate type | -20°C~+60°C | |
| Remote type | Neoprene & Polyurethane Liner | -10°C~+80°C | |
| PTFE Liner /PFA Liner /F46 Liner | -10°C~+160°C | ||
| Ambient Temperature | -25°C ~+ 60°C | ||
| Ambient Humidity | 5~100%RH(relative humidity) | ||
|
Medium Electrical
conductivity |
>=5u s/cm | ||
| Measuring Range | 1500:1,flow rate<15m/s | ||
| Structure type | Integral type,remote type,submersible type,ex-proof type | ||
| Protection Class | IP65,IP67, IP68(optional) | ||
| Ex-proof Mark | ExmdⅡT6 | ||
| Product Standard | JB/T 9248-1999 Electormagnetic Flowmeter | ||
Main performances of the electrode materials
| Electrode material | Applications |
|---|---|
| sainless steel SUS316 | Applicable in water,sewage and corrosive mediums. |
| Widely used in industries of petrol,chemistry,carbamide,etc | |
|
Stainless steel covered with tungsten carbide |
Applicable in mediums of no corrosive and low abrasion. |
| Hastelloy B(HB) |
Having strong resistance to hydrochloric acid of any consistance which
is below bioling piont. |
| Also resistable against vitriol,phosphate, | |
|
hydrofluoricacid,organic acid etc which are oxidable acid,alkali and
non-oxidable salt. |
|
| Hastelloy C(HC) | Be resistant to oxidable acid such as nitric acid,mixed acid |
| as well as oxidable salt such as Fe+++,Cu++aStnd sea water | |
| Titanium |
Applicable in seawater,and kinds of chloride,hypochlorite salt,oxidable
|
|
Not resistant to a pure reducing acid(such as sulphuric acid,hydrochloric
|
|
| But if acid contains antioxidant is greatly reduce corrosion. | |
| Tantalum | Having strong resistance to corrosive mediums that is similar with glass |
| Almost is applicable to all chemical mediums. | |
| Except for hydrofluoric acid,oleum and alkali. | |
| Platinum-iridium | Almost be applicable in all chemical mediums except for ammonium salt. |
