Quick Details
-
Voltage:
-
380V/50Hz
-
Power:
-
100kw
-
Weight:
-
900 KG
-
Dimension(L*W*H):
-
20*10*6m
-
Name:
-
Ice Cream Processing Line
-
Material:
-
SUS316L/SUS304
-
Automation:
-
Automatic/Manual
-
Application:
-
Milk
-
Capacity:
-
500L~200000L/H
-
Control:
-
PLC
-
Processing:
-
HOMOGENIZER+PASTEURIZER+Frozen+Aging+Filling
-
After-sales Service:
-
1 Year
Quick Details
-
Marketing Type:
-
New Product 2023
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WZD Machinery
-
Voltage:
-
380V/50Hz
-
Power:
-
100kw
-
Weight:
-
900 KG
-
Dimension(L*W*H):
-
20*10*6m
-
Name:
-
Ice Cream Processing Line
-
Material:
-
SUS316L/SUS304
-
Automation:
-
Automatic/Manual
-
Application:
-
Milk
-
Capacity:
-
500L~200000L/H
-
Control:
-
PLC
-
Processing:
-
HOMOGENIZER+PASTEURIZER+Frozen+Aging+Filling
-
After-sales Service:
-
1 Year
Product Description
Ice cream is made of milk or milk powder. Its physical structure is a complex physical and chemical system. Air bubbles are dispersed in a continuous liquid with ice crystals, which contains fat particles, milk proteins, insoluble salts, lactose
crystals, gelatinous stabilizers and sucrose, lactose and soluble salts. It can be regarded as a partially frozen foam containing 40%-50% air by volume.
Ice cream production process: milk → standardization → blending → sterilization homogenization → cooling → aging → freezing →filling → refrigeration
crystals, gelatinous stabilizers and sucrose, lactose and soluble salts. It can be regarded as a partially frozen foam containing 40%-50% air by volume.
Specification
|
Raw material
|
Fresh milk /milk powder
|
|
Production
|
Ice cream
|
|
Capacity
|
1T/D-500T/D
|
|
End product package
|
Pouch,cup,etc
|
|
Final product
|
stick ice cream,cup,cone,etc
|
Main machine details
Mixing tank
Scope of use
1. Can be used as liquid storage tank, mixing tank, temporary storage tank, batching tank, etc.
2. Applicable to food, dairy products, fruit juice drinks, pharmaceutical, chemical and biological engineering fields.
1. Can be used as liquid storage tank, mixing tank, temporary storage tank, batching tank, etc.
2. Applicable to food, dairy products, fruit juice drinks, pharmaceutical, chemical and biological engineering fields.
Pasteurizer
This unit can be connect with separator,homogenizer,flash evaporator,degasser ect. this unit is used as Pasteurizer
(widely used in fresh milk,milk beverage,juice,tea,alcohol,ice cream ect.),and also pre-sterilize material when producing
Pasteurized milk(long life milk).This machine has features of high heat recovery,lower energy cost,strict design on the construction and easy operation,simple
Homogenizer
This machine can be widely used in production, scientific research and technology development in the fields of food, dairy products, beverages, pharmaceuticals, fine chemicals and biotechnology.
Homogenizing milk, soybean milk and other dairy materials under high pressure can significantly refine the fat globules in the dairy liquid, making the products easy to digest and absorb after eating, and improving the edible value.
Homogenizing milk, soybean milk and other dairy materials under high pressure can significantly refine the fat globules in the dairy liquid, making the products easy to digest and absorb after eating, and improving the edible value.
Aging tank
Aging tank is also called aging tank is an essential equipment in the production process of ice cream, ice cream and other cold drinks. It is a process before defreezing the raw materials of ice cream bar after mixing, sterilizing and homogenizing. The raw materials of ice cream bar are cooled in the aging tank and kept in a low temperature state to slowly age. Whether the aging is
sufficient or not determines the effect of the material's freezing and expanding.
sufficient or not determines the effect of the material's freezing and expanding.
Title goes here.

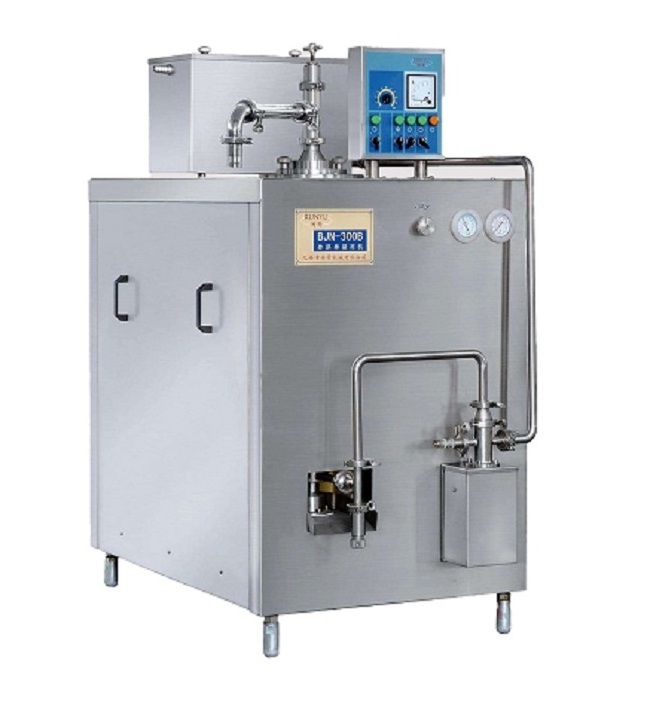

The condensing machine is the key equipment for the production of ice cream and ice-cream. It is the process of filling the material with air after aging and other processes, under strong stirring and condensing. The material is then frozen into a microscopic ice product by the refrigerant in the condensing cylinder, which is continuously scraped off by the rotating scraper.
Filling machine
We can choose the packaging method according to the customer's requirements, such as plastic cups, cones,Stick ice cream etc.
Project picture
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
